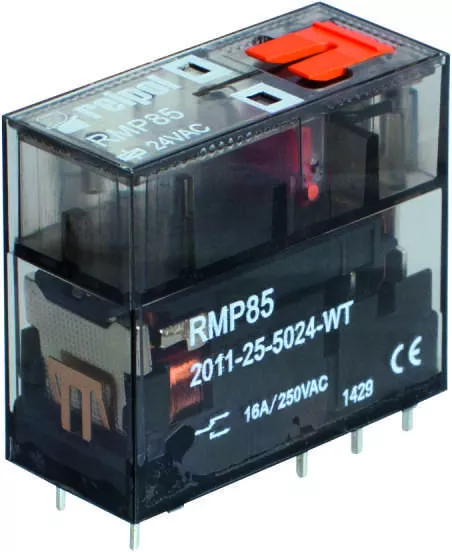

Przekaźnik miniaturowy RMP85-2011-25-5024-WTL
| Information | Value |
|---|---|
| Supplier | RELPOL S.A. |
| Symbol | 2615186 |
| Price unit | piece |
| Catalog price | 48,03 zł (39,05 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik elektromagnetyczny, miniaturowy, do obwodu drukowanego i gniazda wtykowego. Raster 5 mm. Wysokość 25,5 mm. Wyjście: 1P - jeden zestyk przełączny - wyprowadzenia: 11(7)/21(4)-12(6)/22(3)-14(8)/24(5); AC1 - 16 A / 250 V. Wejście / cewka - wyprowadzenia: A1(1) - A2(2), napięcie zasilania Un - 24 V AC. Wymiary: 29 x 13 x 25,5 mm. Materiał styków: AgNi. IP 40. Wskaźnik mechaniczny W, wskaźnik LED, przycisk testujący T z funkcją blokowania. Opcje montażu gniazd: EC50, GD50 - do druku; GZP80 (push-in), GZF80 - montaż na szynie 35 mm lub przykręcane do płyty jedną śrubą M3. Uwaga: w przekaźniku są galwaniczne połączenia wyprowadzeń 11 z 21, 12 z 22 oraz 14 z 24.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 16 g |
| ETIM class: | Switching relay |
| Type of electric connection: | Plug-in connection |
| With detachable clamps: | no |
| Nominal current: | 16 A |
| Rated control supply voltage AC 50 Hz: | 24 - 24 V |
| Rated control supply voltage AC 60 Hz: | 24 - 24 V |
| Rated control supply voltage DC: | 0 - 0 V |
| Voltage type for actuating: | AC |
| Drive, polarization: | Polarity free |
| Drive, switching attitude: | Mono stable |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as change-over contact: | 1 |
| With forced-guided contacts: | no |
| Type of switch contact: | Single contact |
| Complete with socket: | no |
| With LED indication: | no |
| Material of contact surface: | Silver |
| Degree of protection (IP): | IP40 |
| Width: | 13 mm |
| Height: | 25.5 mm |
| Depth: | 29 mm |
| Material contact: | Silver nickel (AgNi) |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Gniezno,
ul. Słoneczna 40a
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-07-19 00:03:04 |
| Files to download: |
