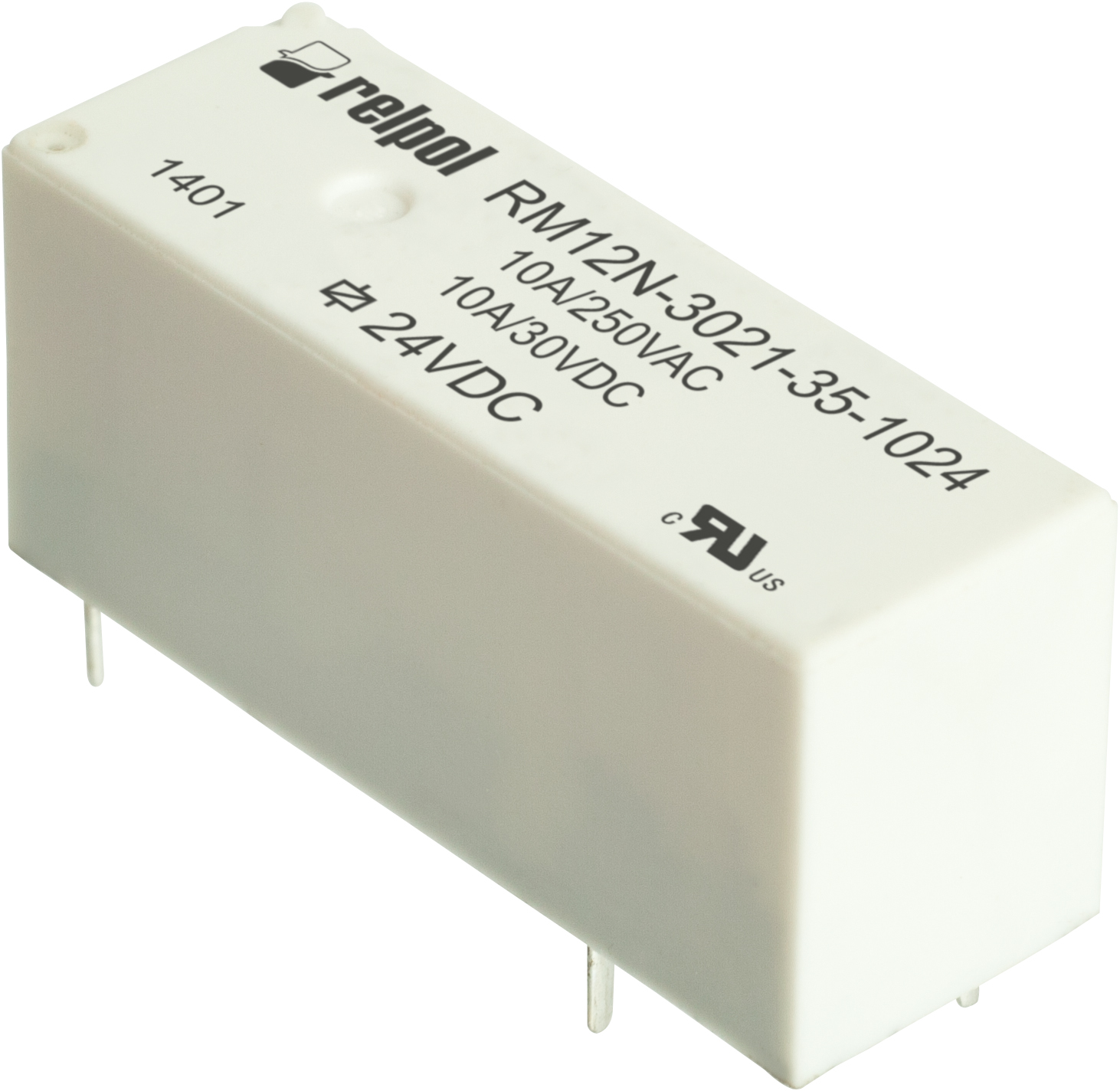

Przekaźnik miniaturowy RM12N-3021-35-1048
| Information | Value |
|---|---|
| Supplier | RELPOL S.A. |
| Symbol | 2614979 |
| Price unit | piece |
| Catalog price | 16,35 zł (13,29 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik elektromagnetyczny, miniaturowy, do obwodu drukowanego. Wysokość 12,5 mm. Wyjście: 1Z - jeden zestyk zwierny - wyprowadzenia: 11-14; AC1 - 10 A / 250 V; DC1 - 10 A / 30 V. Wejście / cewka - wyprowadzenia: A1 - A2, napięcie zasilania Un - 48 V DC. Wymiary: 28,5 x 10,1 x 12,55 mm. IP 67. Materiał styków: AgSnO2.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 8 g |
| ETIM class: | Switching relay |
| Complete with socket: | no |
| With LED indication: | no |
| Rated control supply voltage AC 50 Hz: | 0 - 0 V |
| Rated control supply voltage AC 60 Hz: | 0 - 0 V |
| Rated control supply voltage DC: | 48 - 48 V |
| Voltage type for actuating: | DC |
| Drive, polarization: | Polarity free |
| Drive, switching attitude: | Mono stable |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as normally open contact: | 1 |
| Number of contacts as change-over contact: | 0 |
| Type of switch contact: | Single contact |
| With forced-guided contacts: | no |
| Nominal current: | 10 A |
| Degree of protection (IP): | IP67 |
| Width: | 10.3 mm |
| Height: | 12.7 mm |
| Depth: | 28.7 mm |
| Material contact: | Silver tin oxide (AgSnO2) |
