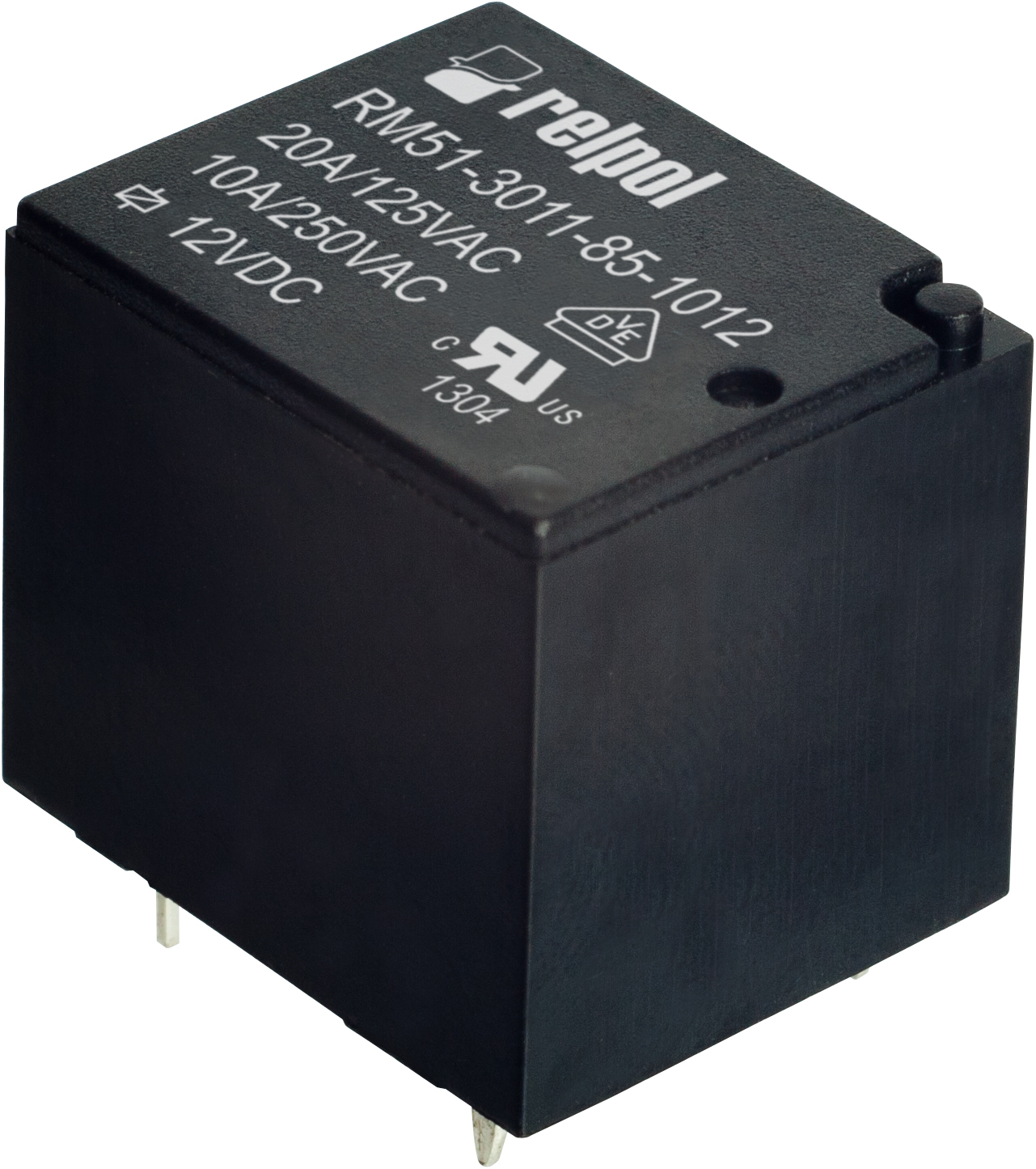

Przekaźnik miniaturowy RM51-3021-85-1003
| Information | Value |
|---|---|
| Supplier | RELPOL S.A. |
| Symbol | 2614703 |
| Price unit | piece |
| Catalog price | 8,06 zł (6,55 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik elektromagnetyczny, miniaturowy, do obwodu drukowanego (sugar cube relays). Wysokość 17,1 mm. Wyjście: 1Z - jeden zestyk zwierny - wyprowadzenia: 11-12-14; AC1 - 10 A / 250 V , AC1 - 20 A / 125 V; AC3 - 750W; DC1 - 10 A / 30 V. Wejście / cewka - wyprowadzenia: A1 - A2, napięcie zasilania Un - 3 V DC. Wymiary: 19,5 x 16,0 x 17,1 mm. Bezpośredni montaż na druku, PCB. IP 64. Materiał styków: AgSnO2.
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 10 g |
| ETIM class: | Switching relay |
| Type of electric connection: | PCB connection |
| Complete with socket: | no |
| With detachable clamps: | no |
| With LED indication: | no |
| Rated control supply voltage AC 50 Hz: | 0 - 0 V |
| Rated control supply voltage AC 60 Hz: | 0 - 0 V |
| Rated control supply voltage DC: | 3 - 3 V |
| Voltage type for actuating: | DC |
| Drive, polarization: | Polarity free |
| Drive, switching attitude: | Mono stable |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as normally open contact: | 1 |
| Number of contacts as change-over contact: | 0 |
| Type of switch contact: | Single contact |
| With forced-guided contacts: | no |
| Material contact: | Silver tin oxide (AgSnO2) |
| Nominal current: | 10 A |
| Degree of protection (IP): | IP67 |
| Width: | 16 mm |
| Height: | 17.1 mm |
| Depth: | 19.5 mm |
