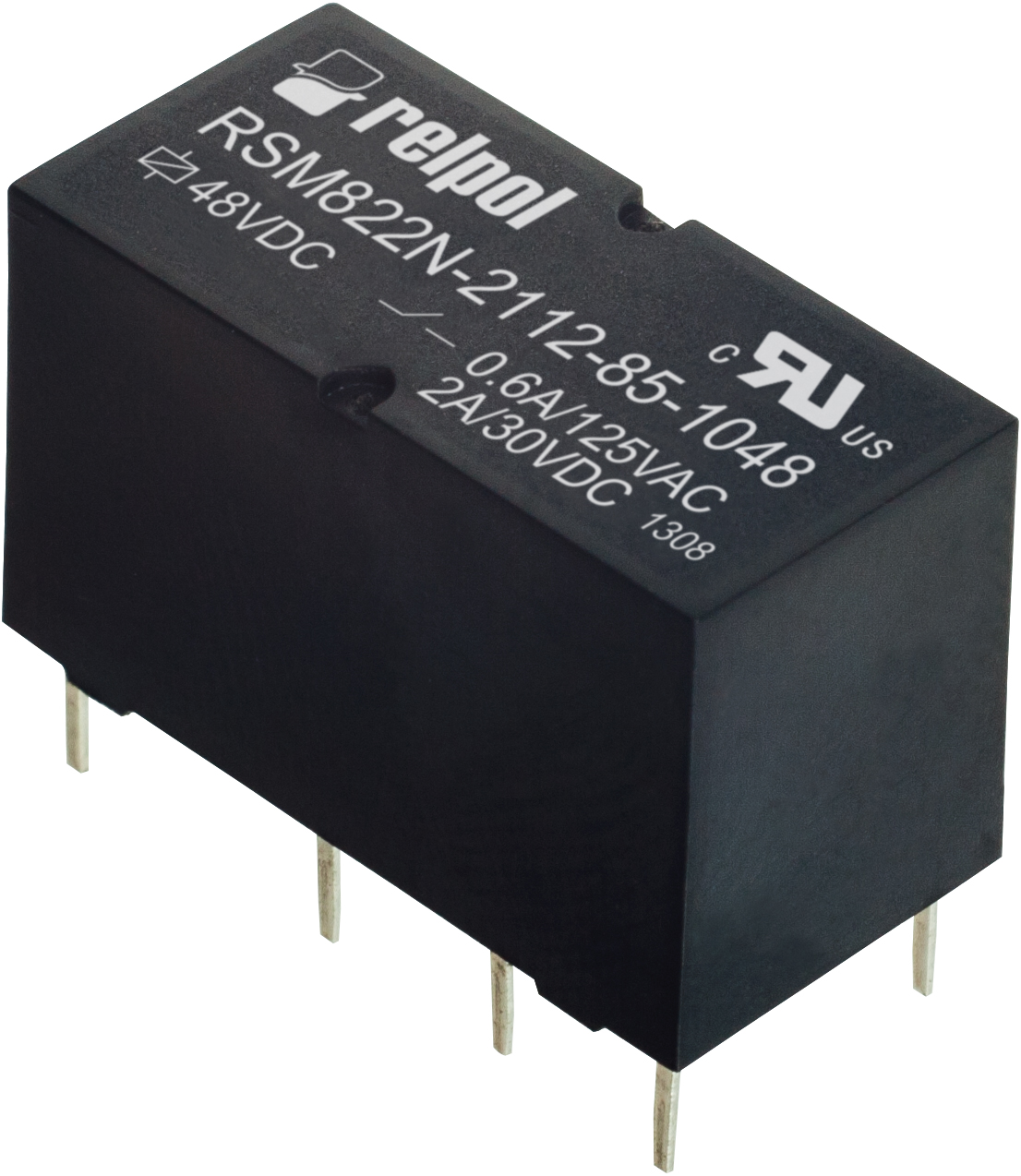

Przekaźnik sygnałowy RSM822N-2112-85-S012
| Information | Value |
|---|---|
| Supplier | RELPOL S.A. |
| Symbol | 2614641 |
| Price unit | piece |
| Catalog price | 12,36 zł (10,05 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźniki RSM822N, monostabilne, 2 zestyki przełączne, 2 A, do obwodów drukowanych. Wejście / cewka: 1-16, napięcie zasilania Un - 12 V DC
Additional features:
| Information | Value |
|---|---|
| Net weight: | 4,5 g |
| ETIM class: | Switching relay |
| Type of electric connection: | PCB connection |
| With detachable clamps: | no |
| Nominal current: | 0.6 A |
| Rated control supply voltage AC 50 Hz: | 0 - 0 V |
| Rated control supply voltage AC 60 Hz: | 0 - 0 V |
| Rated control supply voltage DC: | 12 - 12 V |
| Voltage type for actuating: | DC |
| Drive, polarization: | Polarity free |
| Drive, switching attitude: | Mono stable |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as change-over contact: | 2 |
| With forced-guided contacts: | no |
| Type of switch contact: | Single contact |
| Complete with socket: | no |
| With LED indication: | no |
| Material of contact surface: | Gold |
| Degree of protection (IP): | IP64 |
| Width: | 10.2 mm |
| Height: | 12.5 mm |
| Depth: | 20.5 mm |
| Material contact: | Silver nickel (AgNi) |
