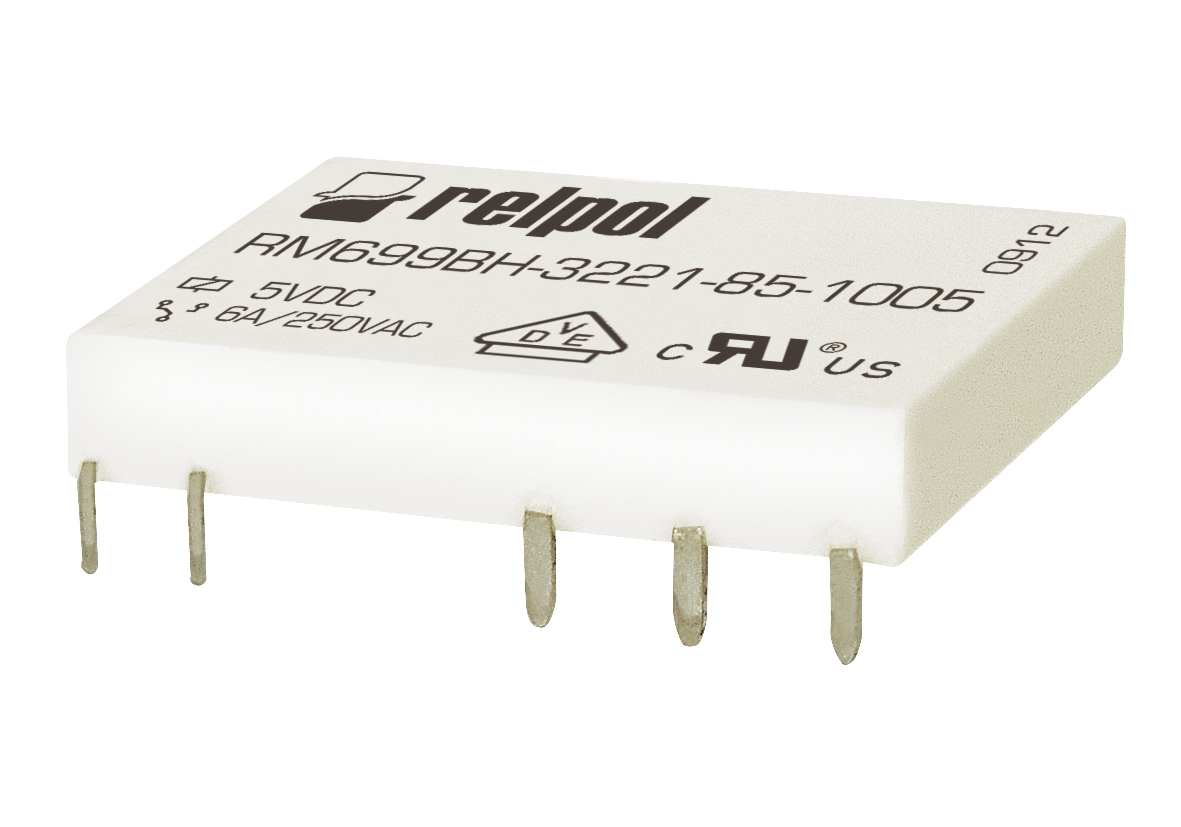

Przekaźnik miniaturowy RM699BH-3011-85-1024
| Information | Value |
|---|---|
| Supplier | RELPOL S.A. |
| Symbol | 2613700 |
| Price unit | piece |
| Catalog price | 37,26 zł (30,29 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik elektromagnetyczny, miniaturowy, wersja pozioma, do obwodu drukowanego. Wysokość 5 mm. Wyjście: 1P - jeden zestyk przełączny - wyprowadzenia: 11-12-14; AC1 - 6 A / 250 V; DC1 - 6 A / 24 V. Wejście / cewka - wyprowadzenia: A1 - A2, napięcie zasilania Un - 24 V DC. Wymiary: 15 x 28 x 5 mm. Bezpośredni montaż na druku - PCB. IP 64. Materiał styków: AgSnO2.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 6 g |
| ETIM class: | Switching relay |
| Type of electric connection: | PCB connection |
| With detachable clamps: | no |
| Nominal current: | 6 A |
| Rated control supply voltage AC 50 Hz: | 0 - 0 V |
| Rated control supply voltage AC 60 Hz: | 0 - 0 V |
| Rated control supply voltage DC: | 24 - 24 V |
| Voltage type for actuating: | DC |
| Drive, polarization: | Polarity free |
| Drive, switching attitude: | Mono stable |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as change-over contact: | 1 |
| With forced-guided contacts: | no |
| Type of switch contact: | Single contact |
| Complete with socket: | no |
| With LED indication: | no |
| Material of contact surface: | Gold |
| Degree of protection (IP): | IP64 |
| Width: | 5 mm |
| Height: | 15 mm |
| Depth: | 28 mm |
| Material contact: | Silver tin oxide (AgSnO2) |
