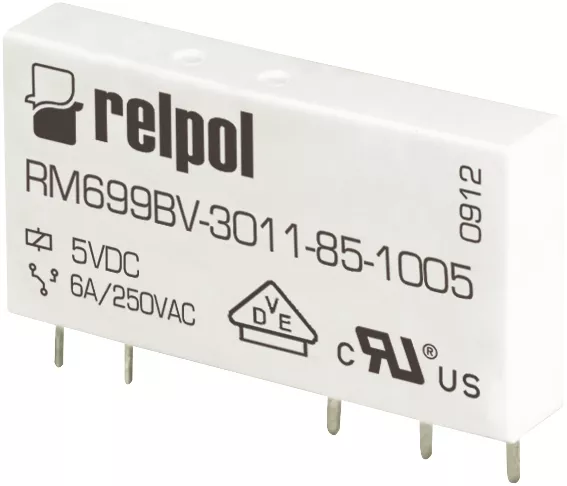

Przekaźnik miniaturowy RM699BV-3011-85-1024
Information | Value |
---|---|
Supplier | RELPOL S.A. |
Symbol | 2613666 |
Price unit | piece |
Catalog price | 29,68 zł (24,13 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik elektromagnetyczny, miniaturowy, wersja pionowa, do obwodu drukowanego i gniazda wtykowego. Szerokość 5 mm. Wyjście: 1P - jeden zestyk przełączny - wyprowadzenia: 11-12-14; AC1 - 6 A / 250 V; DC1 - 6 A / 24 V. Wejście / cewka - wyprowadzenia: A1 - A2, napięcie zasilania Un - 24 V DC. Wymiary: 28 x 5 x 15 mm. Materiał styków: AgSnO2. IP64. Bezpośredni montaż na druku - PCB lub w gnieździe wtykowym PI6W-1P - montowanym na szynie 35 mm. Stosowany jest w przekaźnikach interfejsowych serii PI6, PIR6W oraz czasowych PIR6WT-1Z.
Additional features:
Information | Value |
---|---|
Net weight: | 6 g |
ETIM class: | Switching relay |
Type of electric connection: | PCB connection |
With detachable clamps: | no |
Nominal current: | 6 A |
Rated control supply voltage AC 50 Hz: | 0 - 0 V |
Rated control supply voltage AC 60 Hz: | 0 - 0 V |
Rated control supply voltage DC: | 24 - 24 V |
Voltage type for actuating: | DC |
Drive, polarization: | Polarity free |
Drive, switching attitude: | Mono stable |
Number of contacts as normally closed contact: | 0 |
Number of contacts as normally open contact: | 0 |
Number of contacts as change-over contact: | 1 |
With forced-guided contacts: | no |
Type of switch contact: | Single contact |
Complete with socket: | no |
With LED indication: | no |
Material of contact surface: | Gold |
Degree of protection (IP): | IP64 |
Width: | 5 mm |
Height: | 15 mm |
Depth: | 28 mm |
Material contact: | Silver tin oxide (AgSnO2) |
