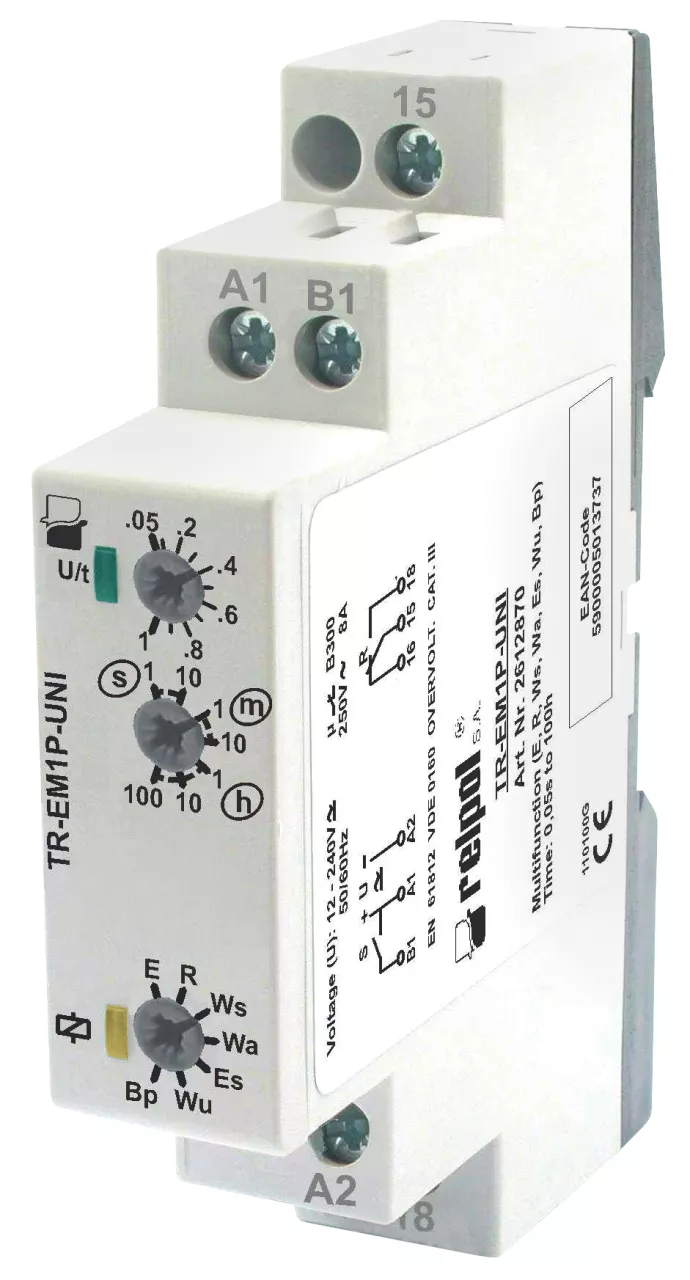

Przekaźnik czasowy TR-EM1P-UNI
| Information | Value |
|---|---|
| Supplier | RELPOL S.A. |
| Symbol | 2612870 |
| GTIN(EAN) | 5900005013737 |
| Price unit | piece |
| Catalog price | 520,25 zł (422,97 zł + 23% VAT) |
| Sale price | from 219,89 zł / szt. (178,77 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik czasowy, wielofunkcyjny: 1P - jeden zestyk przełączny. Funkcje: E, Wu, Bp, R, Ws, Wa, Es. Wejście - zaciski: (+)A1 - (-)A2; zewnętrzny zestyk sterujący S - zaciski: B1 - (+)A1; możliwe obciążenie równoległe - zaciski: (-)A2 - B1, napięcie zasilania Un - 12...240 V AC/DC. Wyjście: zestyk 1P - zaciski: 15-16-18, AC1 - 8 A / 250 V. Wymiary: 87 x 17,5 x 65 mm. Montaż na szynie 35 mm. Obudowa - moduł instalacyjny. IP 20. Do gniazda wtykowego GZM4 lub GZT4.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 120 g |
| ETIM class: | Timer relay |
| Type of electric connection: | Plug-in connection |
| Function delay-on energization: | yes |
| Function delay on de-energization: | yes |
| Function floating contact on energization: | yes |
| Function floating contact on de-energization: | yes |
| Function star-delta: | no |
| Function pulse shaping: | yes |
| Function flashing, starting with pause, fixed time: | yes |
| Function flashing, starting with pulse, fixed time: | yes |
| Clock function, starting with pause, variable: | no |
| Clock function, starting with pulse, variable: | no |
| Remote operation possible: | no |
| Suitable as remote control: | no |
| Pluggable on auxiliary contact block: | no |
| Rated control supply voltage AC 50 Hz: | 12 - 240 V |
| Rated control supply voltage AC 60 Hz: | 12 - 240 V |
| Rated control supply voltage DC: | 12 - 240 V |
| Voltage type for actuating: | AC/DC |
| Nominal current: | 8 A |
| Number of outputs, undelayed, normally closed contact: | 0 |
| Number of outputs, undelayed, normally open contact: | 0 |
| Number of outputs, undelayed, change-over contact: | 0 |
| Number of outputs, delayed, normally closed contact: | 0 |
| Number of outputs, delayed, normally open contact: | 0 |
| Number of outputs, delayed, change-over contact: | 1 |
| Outputs, reversible delayed/undelayed: | no |
| With semiconductor output: | no |
| Width: | 35 mm |
| Height: | 65 mm |
| Depth: | 87 mm |
