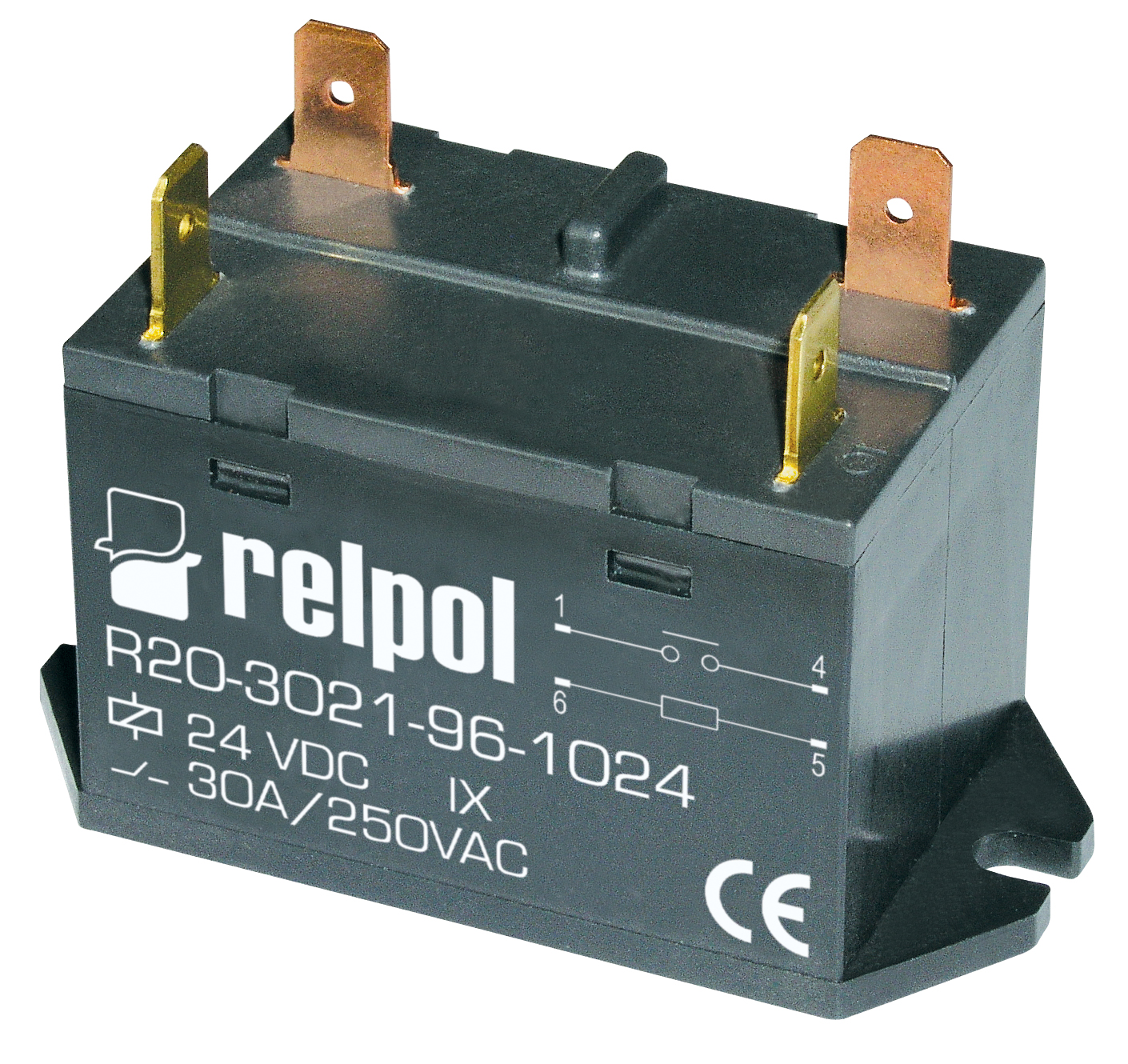

Przekaźnik przemysłowy R20-3022-96-5048
| Information | Value |
|---|---|
| Supplier | RELPOL S.A. |
| Symbol | 2611759 |
| Price unit | piece |
| Catalog price | 75,92 zł (61,72 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźnik elektromagnetyczny, przemysłowy - małogabarytowy, w obudowie. Do podłączeń wsuwkowych - Faston 250 (6,3x0,8). Wyjście: 2Z - dwa zestyki zwierne typu „bridge” dwuprzerwowe - wyprowadzenia: 1-2; 3-4; AC1 - 25 A / 250 V; Wejście / cewka - wyprowadzenia: 5-6, napięcie zasilania Un - 48 V AC. Wymiary: 33 x 67 x 45,25 mm. Materiał styków: AgSnO2. Montaż na płycie montażowej dwoma wkrętami M4. IP 50.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 90 g |
| ETIM class: | Switching relay |
| Type of electric connection: | Plug-in connection |
| With detachable clamps: | no |
| Nominal current: | 30 A |
| Rated control supply voltage AC 50 Hz: | 48 - 48 V |
| Rated control supply voltage AC 60 Hz: | 48 - 48 V |
| Rated control supply voltage DC: | 0 - 0 V |
| Voltage type for actuating: | AC |
| Drive, polarization: | Polarity free |
| Drive, switching attitude: | Mono stable |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as normally open contact: | 2 |
| Number of contacts as change-over contact: | 0 |
| With forced-guided contacts: | no |
| Type of switch contact: | Single contact |
| Complete with socket: | no |
| With LED indication: | no |
| Material of contact surface: | Silver |
| Degree of protection (IP): | IP50 |
| Width: | 33 mm |
| Height: | 35 mm |
| Depth: | 67 mm |
Unfortunately, this product is not available in any warehouse of any wholesaler of the EL-Plus group. However, you can contact the wholesaler of your choice and order it.
Order
Wholesaler
Address
Distance
Actions
Gniezno,
ul. Słoneczna 40a
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-07-19 00:03:02 |

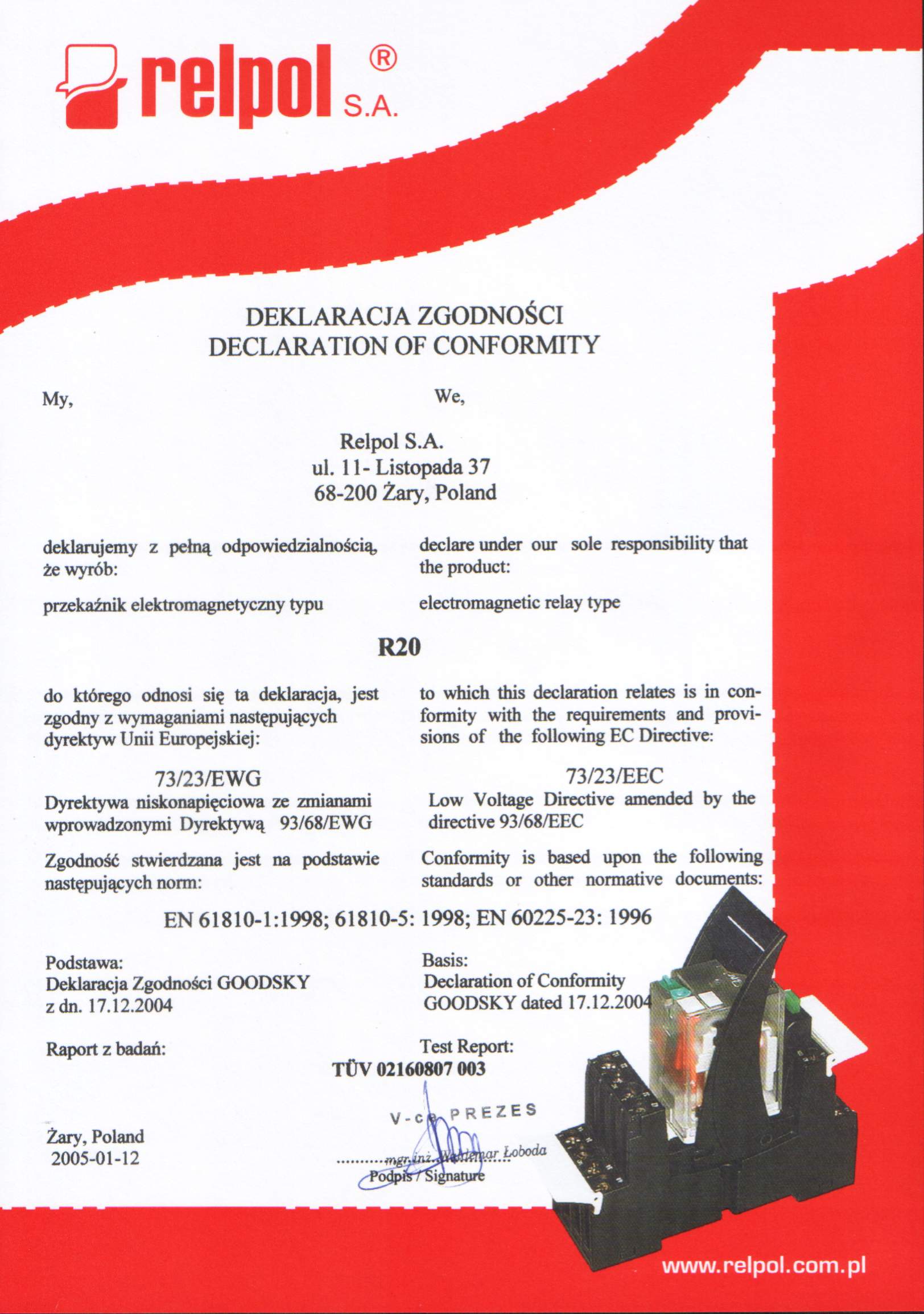

| Files to download: |
