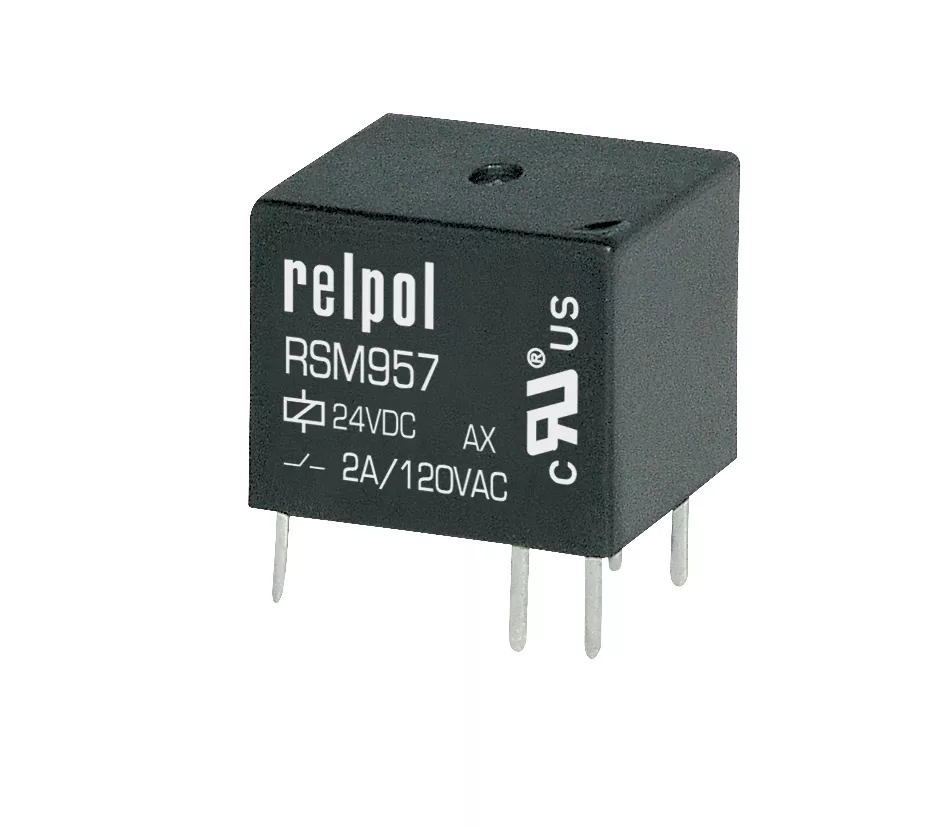

Przekaźnik sygnałowy RSM957-0111-85-S005
| Information | Value |
|---|---|
| Supplier | RELPOL S.A. |
| Symbol | 2611736 |
| Price unit | piece |
| Catalog price | 12,10 zł (9,84 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźniki RSM957, monostabilne, cewka czuła, 1 zestyk przełączny, 2 A, do obwodów drukowanych. Wejście / cewka czuła: 5-6, napięcie zasilania Un - 5 V DC
Additional features:
| Information | Value |
|---|---|
| Net weight: | 2,2 g |
| ETIM class: | Switching relay |
| Type of electric connection: | PCB connection |
| With detachable clamps: | no |
| Nominal current: | 2 A |
| Rated control supply voltage AC 50 Hz: | 0 - 0 V |
| Rated control supply voltage AC 60 Hz: | 0 - 0 V |
| Rated control supply voltage DC: | 5 - 5 V |
| Voltage type for actuating: | DC |
| Drive, polarization: | Polarity free |
| Drive, switching attitude: | Mono stable |
| Number of contacts as normally closed contact: | 0 |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as change-over contact: | 1 |
| With forced-guided contacts: | no |
| Type of switch contact: | Single contact |
| Complete with socket: | no |
| With LED indication: | no |
| Material of contact surface: | Gold |
| Degree of protection (IP): | IP67 |
| Width: | 7.8 mm |
| Height: | 10 mm |
| Depth: | 12.6 mm |
| Material contact: | Other |
