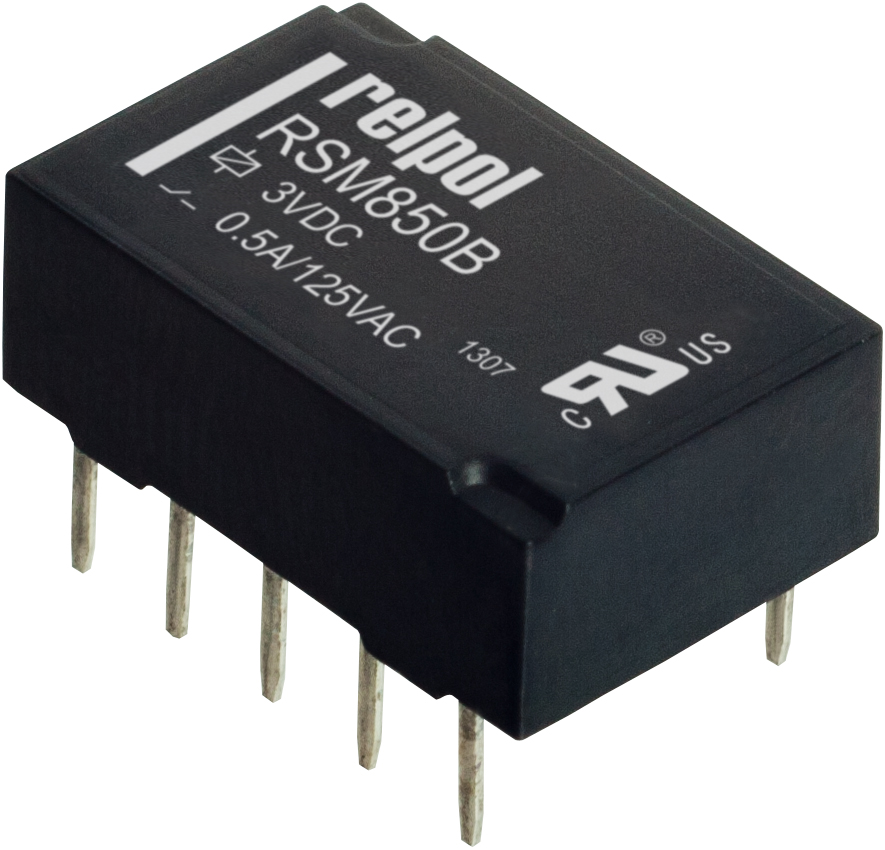

Przekaźnik sygnałowy RSM850B-6112-85-1005
Information | Value |
---|---|
Supplier | RELPOL S.A. |
Symbol | 2611711 |
Price unit | piece |
Catalog price | 16,38 zł (13,32 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Przekaźniki RSM850, bistabilne, 2 zestyki przełączne, 2 A, do obwodów drukowanych. Wejście / cewka: 1-10, napięcie zasilania Un - 5 V DC
Additional features:
Information | Value |
---|---|
Net weight: | 1,5 g |
ETIM class: | Switching relay |
Type of electric connection: | PCB connection |
With detachable clamps: | no |
Nominal current: | 0.5 A |
Rated control supply voltage AC 50 Hz: | 0 - 0 V |
Rated control supply voltage AC 60 Hz: | 0 - 0 V |
Rated control supply voltage DC: | 5 - 5 V |
Voltage type for actuating: | DC |
Drive, polarization: | Polarized |
Drive, switching attitude: | Bistable |
Number of contacts as normally closed contact: | 0 |
Number of contacts as normally open contact: | 0 |
Number of contacts as change-over contact: | 2 |
With forced-guided contacts: | no |
Type of switch contact: | Single contact |
Complete with socket: | no |
With LED indication: | no |
Material of contact surface: | Gold |
Degree of protection (IP): | IP67 |
Width: | 9.3 mm |
Height: | 5.4 mm |
Depth: | 14.3 mm |
Material contact: | Other |
