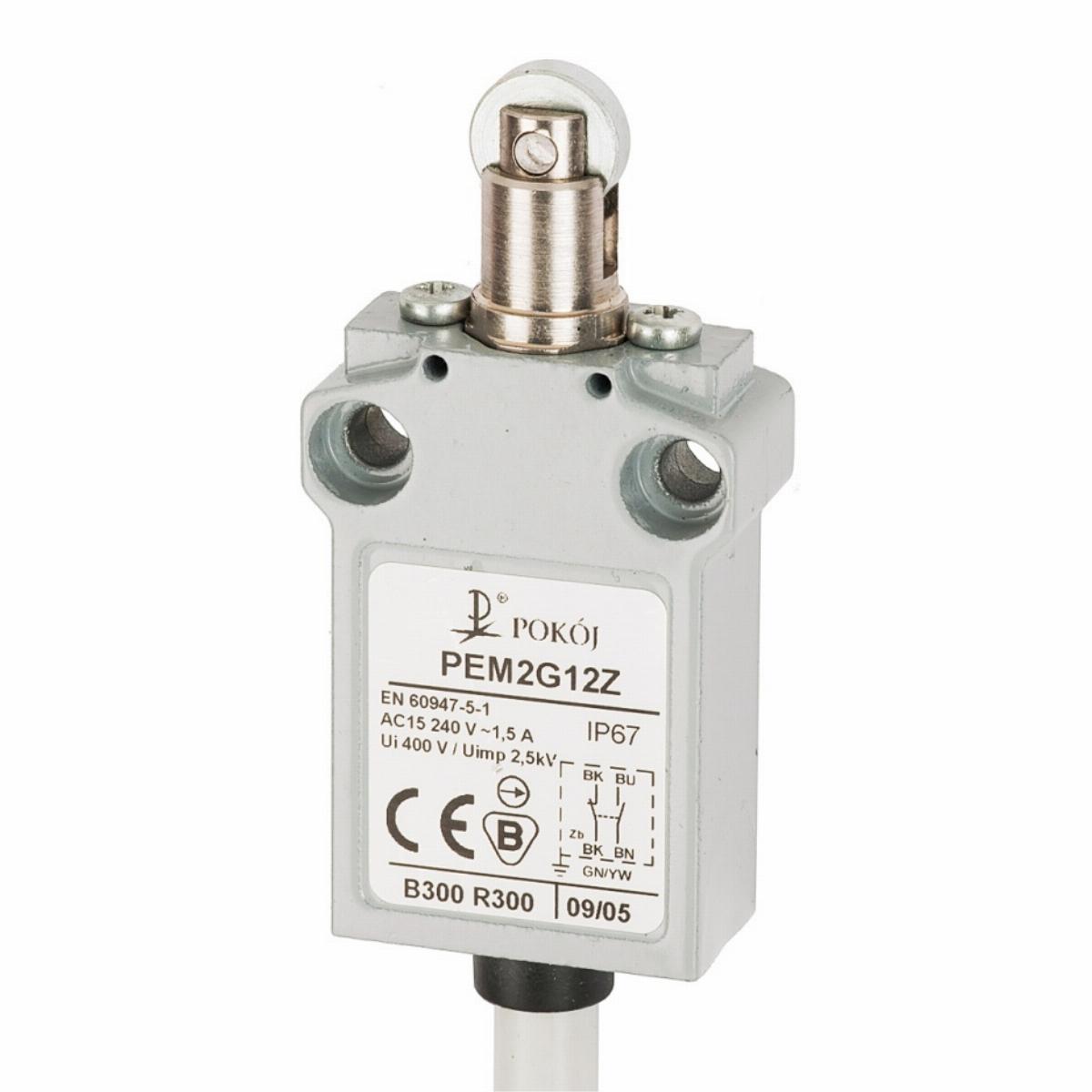

PEM2 G12 Z ŁĄCZNIK KRAŃCOWY
Information | Value |
---|---|
Supplier | POKÓJ S.E. |
Symbol | A37-B83Z |
GTIN(EAN) | 5902626157784 |
Price unit | piece |
Catalog price | 234,09 zł (190,32 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
ETIM class: | End switch |
Width sensor: | 35 mm |
Height of sensor: | 16 mm |
Length of sensor: | 70 mm |
Rated operation current Ie at AC-15, 24 V: | 5 A |
Rated operation current Ie at AC-15, 125 V: | 3 A |
Rated operation current Ie at AC-15, 230 V: | 1.5 A |
Rated operation current Ie at DC-13, 24 V: | 1.1 A |
Rated operation current Ie at DC-13, 125 V: | 0.22 A |
Rated operation current Ie at DC-13, 230 V: | 0.1 A |
Switching function: | Quick-break switch |
Output electronic: | no |
Forced opening: | yes |
Number of contacts as normally closed contact: | 1 |
Number of contacts as normally open contact: | 1 |
Type of interface: | None |
Type of interface for safety communication: | None |
Construction type housing: | Cuboid |
Housing material: | Metal |
Coating housing: | Powder coating |
Type of control element: | Roller cam |
Alignment of the control element: | Roller cam straight |
Type of electric connection: | With cable preassembled |
With status indication: | no |
Suitable for safety functions: | no |
Explosion safety category for gas: | None |
Explosion safety category for dust: | None |
Ambient temperature during operating: | -25 - 70 °C |
Degree of protection (IP): | IP67 |
