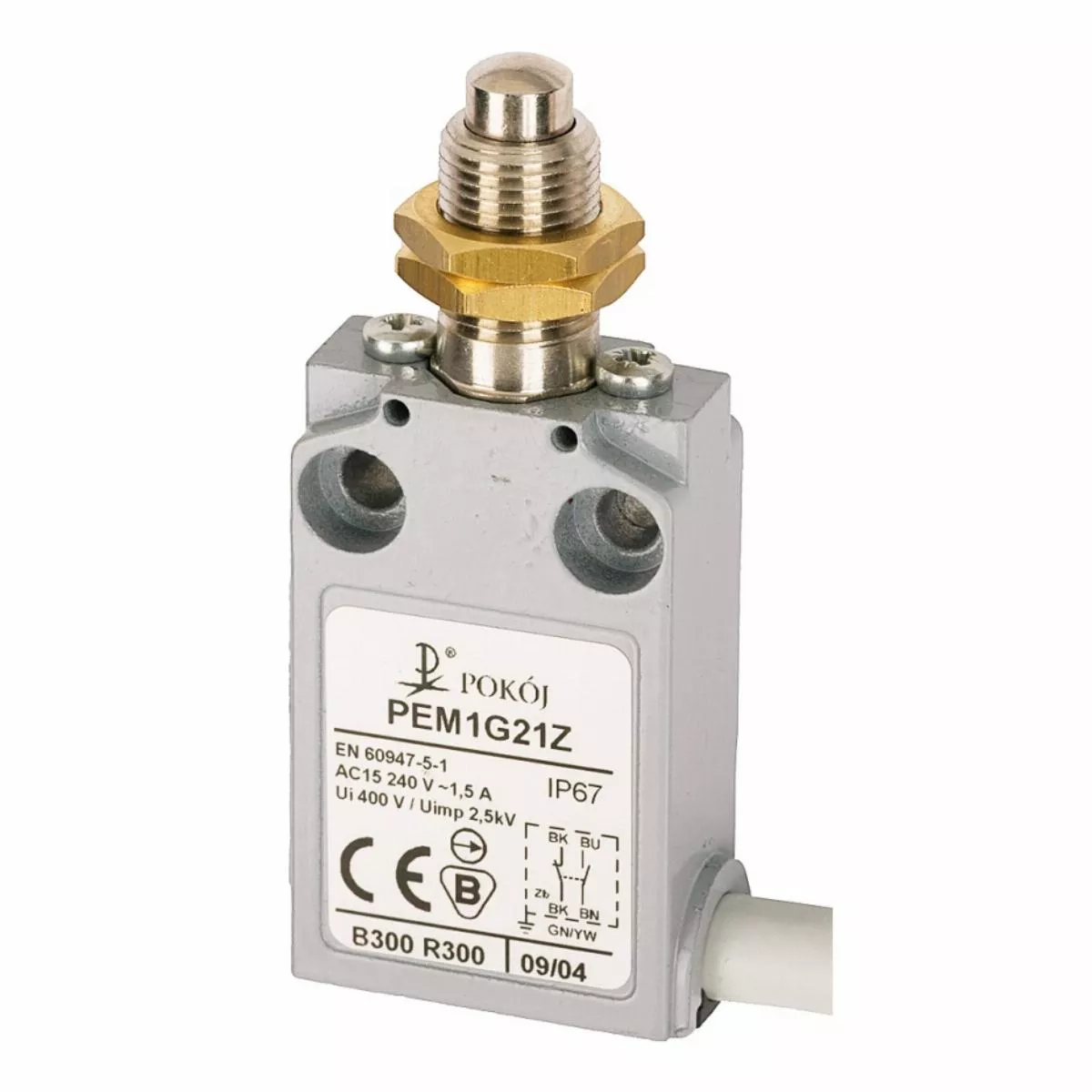

PEM1 G21 Z ŁĄCZNIK KRAŃCOWY
| Information | Value |
|---|---|
| Supplier | POKÓJ S.E. |
| Symbol | A37-A87Z |
| GTIN(EAN) | 5902626156435 |
| Price unit | piece |
| Catalog price | 213,84 zł (173,85 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | End switch |
| Width sensor: | 31.5 mm |
| Height of sensor: | 16 mm |
| Length of sensor: | 77 mm |
| Rated operation current Ie at AC-15, 24 V: | 5 A |
| Rated operation current Ie at AC-15, 125 V: | 3 A |
| Rated operation current Ie at AC-15, 230 V: | 1.5 A |
| Rated operation current Ie at DC-13, 24 V: | 1.1 A |
| Rated operation current Ie at DC-13, 125 V: | 0.22 A |
| Rated operation current Ie at DC-13, 230 V: | 0.1 A |
| Switching function: | Quick-break switch |
| Output electronic: | no |
| Forced opening: | yes |
| Number of contacts as normally closed contact: | 1 |
| Number of contacts as normally open contact: | 1 |
| Type of interface: | None |
| Type of interface for safety communication: | None |
| Construction type housing: | Cuboid |
| Housing material: | Metal |
| Coating housing: | Powder coating |
| Type of control element: | Plunger |
| Alignment of the control element: | Other |
| Type of electric connection: | With cable preassembled |
| With status indication: | no |
| Suitable for safety functions: | no |
| Explosion safety category for gas: | None |
| Explosion safety category for dust: | None |
| Ambient temperature during operating: | -25 - 70 °C |
| Degree of protection (IP): | IP67 |
