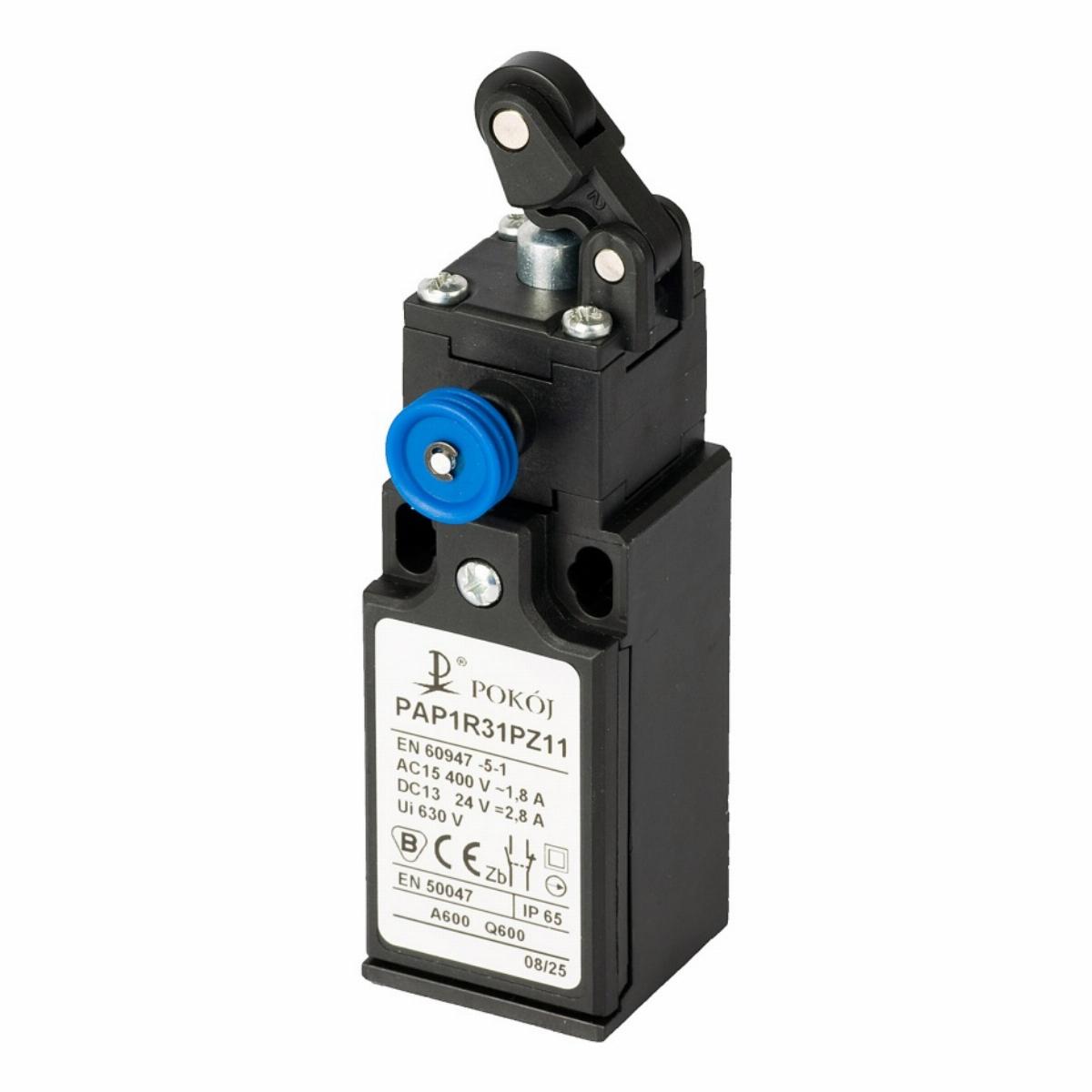

PAP1 R31 PW02 ŁĄCZNIK KRAŃCOWY
| Information | Value |
|---|---|
| Supplier | POKÓJ S.E. |
| Symbol | A37-1R34 |
| GTIN(EAN) | 5902626187149 |
| Price unit | piece |
| Catalog price | 169,84 zł (138,08 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Position switch with guard locking |
| With status indication: | no |
| Suitable for safety functions: | no |
| Guard locking force: | 0 N |
| With escape release: | no |
| Rated control supply voltage magnet drive AC 50 Hz: | 0 - 0 V |
| Rated control supply voltage magnet drive AC 60 Hz: | 0 - 0 V |
| Rated control supply voltage magnet drive DC: | 0 - 0 V |
| Width sensor: | 30.3 mm |
| Height of sensor: | 30 mm |
| Length of sensor: | 106 mm |
| Number of safety auxiliary contacts: | 0 |
| Number of contacts as normally closed contact: | 2 |
| Number of contacts as normally open contact: | 0 |
| Number of contacts as change-over contact: | 0 |
| Type of switching contact: | Slow-action switch |
| Rated operation current Ie at AC-15, 24 V: | 10 A |
| Rated operation current Ie at AC-15, 125 V: | 6 A |
| Rated operation current Ie at AC-15, 230 V: | 3 A |
| Rated operation current Ie at DC-13, 24 V: | 2.8 A |
| Rated operation current Ie at DC-13, 125 V: | 0.55 A |
| Rated operation current Ie at DC-13, 230 V: | 0.27 A |
| Construction type housing: | Cuboid |
| Housing material: | Metal |
| Type of interface: | None |
| Type of interface for safety communication: | None |
| Type of electric connection: | Cable entry PG |
| Explosion safety category for gas: | None |
| Explosion safety category for dust: | None |
| Ambient temperature during operating: | -25 - 70 °C |
| Degree of protection (IP): | IP65 |
