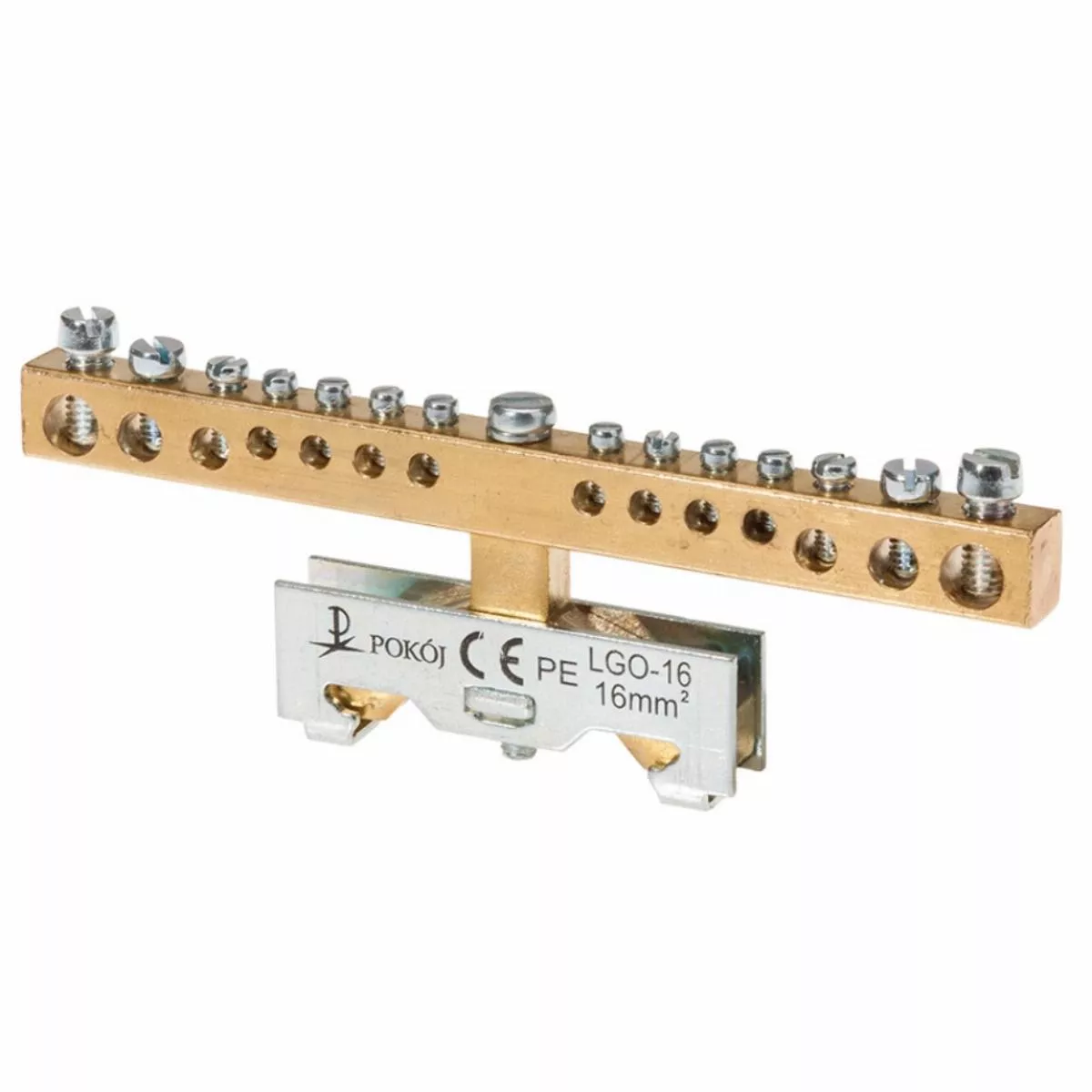

LGO-16 LISTWA OCHRONNA
Information | Value |
---|---|
Supplier | POKÓJ S.E. |
Symbol | A14-4200 |
GTIN(EAN) | 5902626103453 |
Price unit | piece |
Catalog price | 98,98 zł (80,47 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
ETIM class: | Ground terminal block |
PEN function possible: | yes |
Connectable conductor cross section fine-strand without cable end sleeve: | 4 - 25 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 4 - 25 mm² |
Connectable conductor cross section solid-core: | 5 - 16 mm² |
Connectable conductor cross section multi-wired: | 1 - 10 mm² |
Type of electrical connection 1: | Screw connection |
Type of electrical connection 2: | Screw connection |
Connection position: | Sideways |
Number of levels: | 1 |
Number of clamp positions per level: | 14 |
Mounting method: | DIN rail (top hat rail) 35 mm |
Material insulation body: | None |
Operating temperature: | -25 - 110 °C |
Inflammability class of insulation material according to with UL94: | Other |
Width/grid dimension: | 110 mm |
Length: | 10 mm |
Closing plate required: | no |
Colour: | Other |
