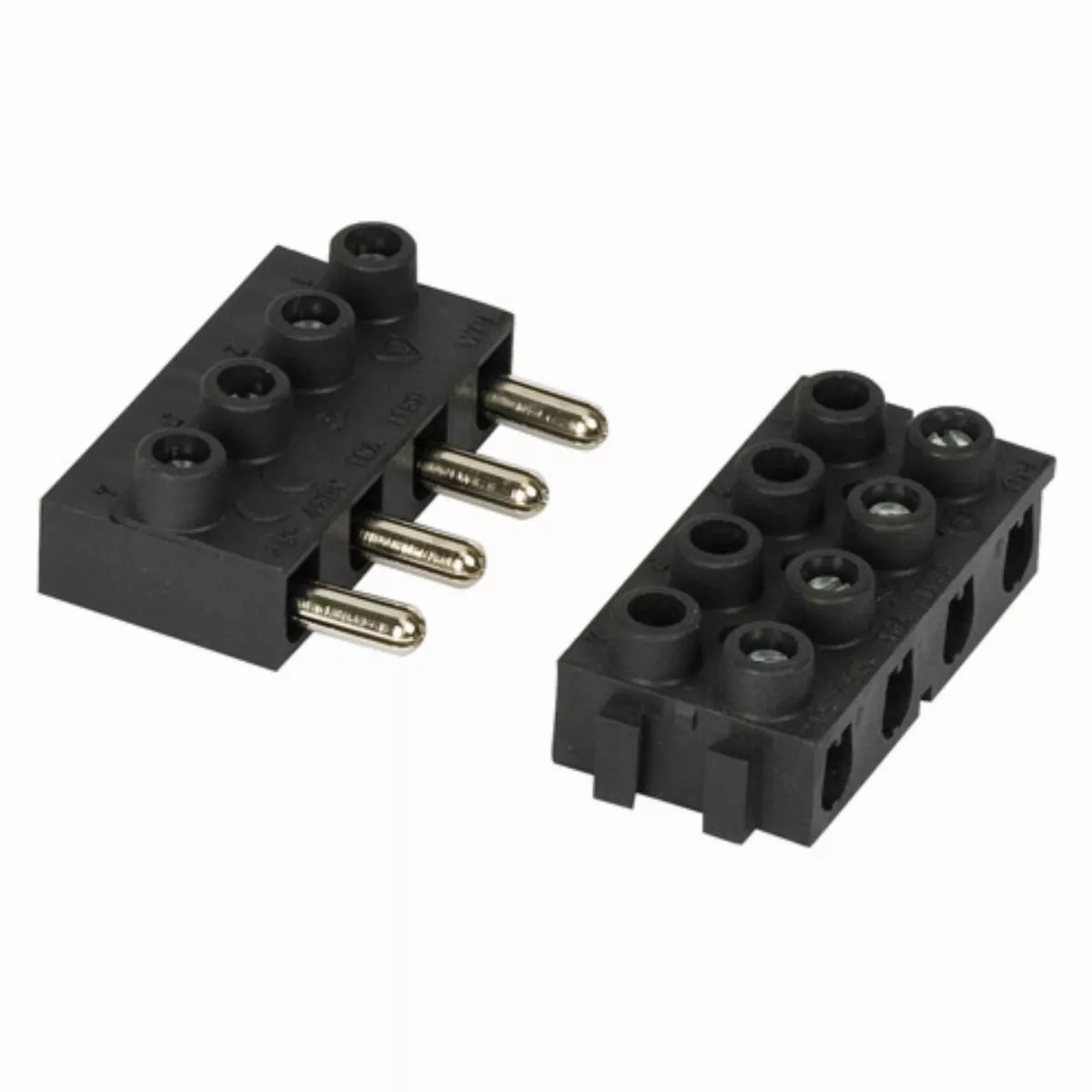

GP2,5 + WP2,5 ZŁĄCZE 4-TOR. KPL. K.CZARNY
Information | Value |
---|---|
Supplier | POKÓJ S.E. |
Symbol | A12-6303 |
GTIN(EAN) | 5902626139810 |
Price unit | piece |
Catalog price | 14,16 zł (11,51 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
ETIM class: | Single- and multi-pole terminal strip |
Drill hole distance centrically: | 11.5 mm |
Explosion-tested version 'Ex e': | no |
Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 2.5 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 0.5 - 2.5 mm² |
Connectable conductor cross section solid-core: | 0.5 - 2.5 mm² |
Connectable conductor cross section multi-wired: | 0.5 - 2.5 mm² |
Rated current In: | 24 A |
Rated voltage: | 450 V |
Type of electrical connection 1: | Screw connection |
Type of electrical connection 2: | Screw connection |
Connection position: | Atop |
Number of poles: | 4 |
Number of clamp positions per pole: | 1 |
Mounting method: | Direct mounting |
Material insulation body: | Thermoplastic |
Operating temperature: | -25 - 150 °C |
Inflammability class of insulation material according to with UL94: | V2 |
Width/grid dimension: | 23.5 mm |
Length: | 48.3 mm |
Closing plate required: | no |
Colour: | Black |
Transparent: | no |
Buy online
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Gniezno,
ul. Słoneczna 40a
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Additional information:
Information | Value |
---|---|
Updated: | 2024-01-22 00:03:32 |
