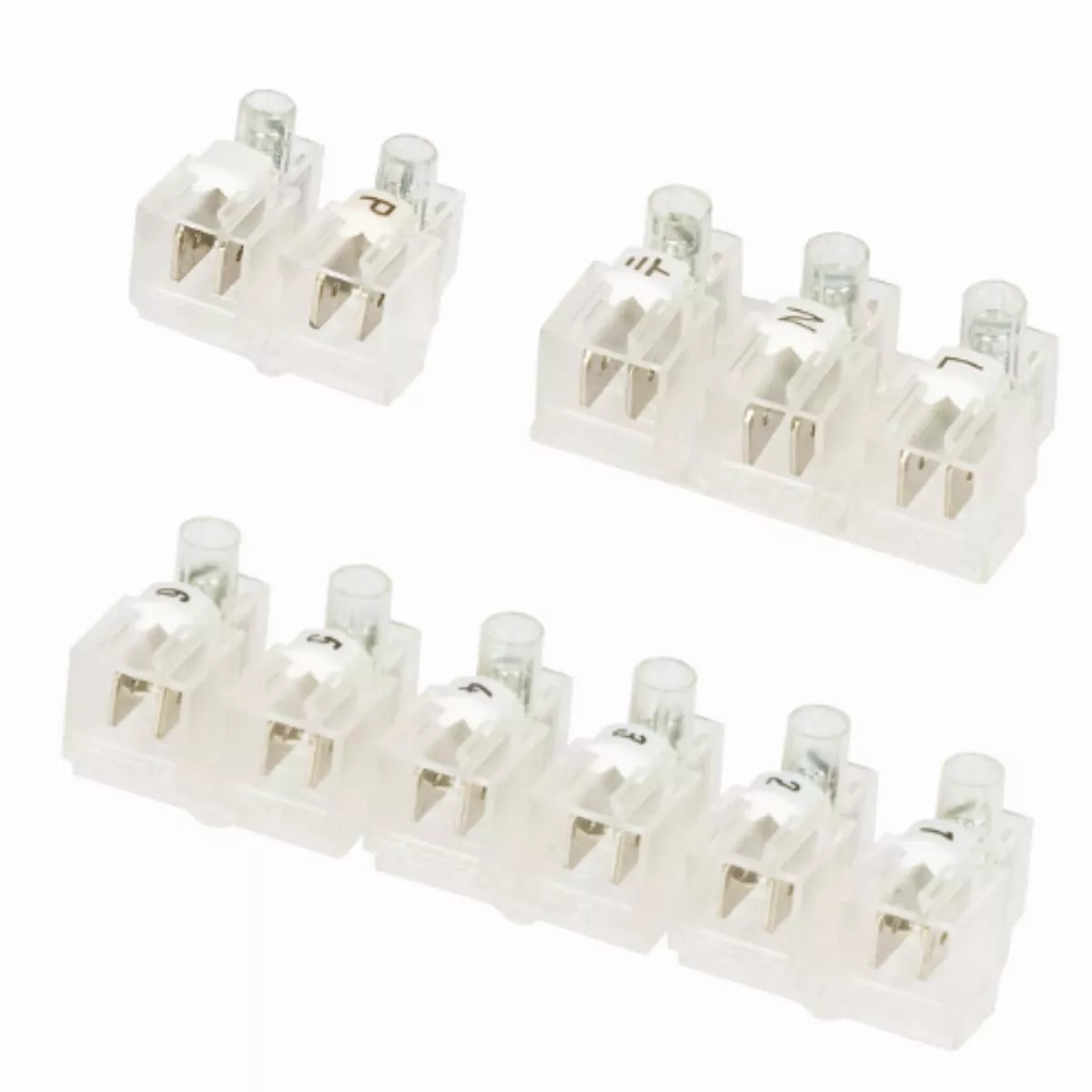

LZW-B4.6 ZŁĄCZKA GWINT-WSUW 6-TOROWA BEZBAR.
| Information | Value |
|---|---|
| Supplier | POKÓJ S.E. |
| Symbol | A12-4660 |
| GTIN(EAN) | 5902626153816 |
| Price unit | piece |
| Catalog price | 20,71 zł (16,84 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Single- and multi-pole terminal strip |
| Drill hole distance centrically: | 15 mm |
| Explosion-tested version 'Ex e': | no |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.75 - 4 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.75 - 4 mm² |
| Connectable conductor cross section solid-core: | 0.75 - 4 mm² |
| Connectable conductor cross section multi-wired: | 0.75 - 4 mm² |
| Rated current In: | 16 A |
| Rated voltage: | 400 V |
| Type of electrical connection 1: | Screw connection |
| Type of electrical connection 2: | Screw connection |
| Connection position: | Atop |
| Number of poles: | 6 |
| Number of clamp positions per pole: | 1 |
| Mounting method: | Direct mounting |
| Material insulation body: | Thermoplastic |
| Operating temperature: | -25 - 110 °C |
| Inflammability class of insulation material according to with UL94: | V2 |
| Width/grid dimension: | 22 mm |
| Length: | 87 mm |
| Closing plate required: | no |
| Colour: | White |
| Transparent: | yes |
