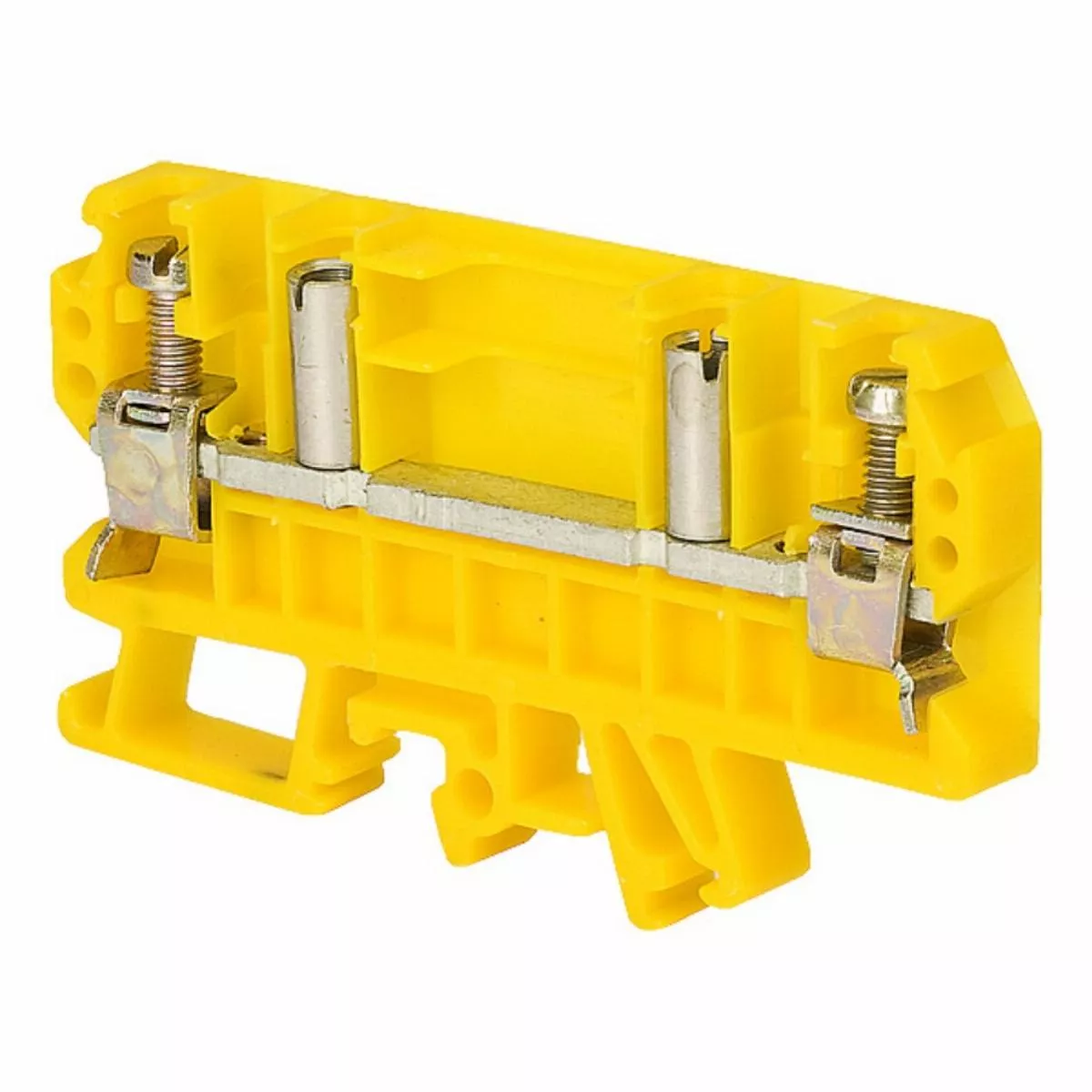

ZUG-G/DG ZŁĄCZKA K.ŻÓŁTY
| Information | Value |
|---|---|
| Supplier | POKÓJ S.E. |
| Symbol | A11-9401 |
| GTIN(EAN) | 5902626102340 |
| Price unit | piece |
| Catalog price | 29,13 zł (23,68 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | (Knife) disconnect terminal block |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 6 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.5 - 6 mm² |
| Connectable conductor cross section solid-core: | 0.5 - 10 mm² |
| Connectable conductor cross section multi-wired: | 0.5 - 6 mm² |
| Rated current In: | 57 A |
| Rated voltage: | 690 V |
| Type of electrical connection 1: | Screw connection |
| Type of electrical connection 2: | Screw connection |
| Connection position: | Sideways |
| Number of levels: | 1 |
| Number of clamp positions per level: | 2 |
| Internally connected stages: | no |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Material insulation body: | Thermoplastic |
| Inflammability class of insulation material according to with UL94: | V2 |
| Operating temperature: | -25 - 100 °C |
| Width/grid dimension: | 8 mm |
| Closing plate required: | yes |
| Colour: | Yellow |
| Type of slitting: | None |
| With integrated test socket: | yes |
| Length: | 77.2 mm |
