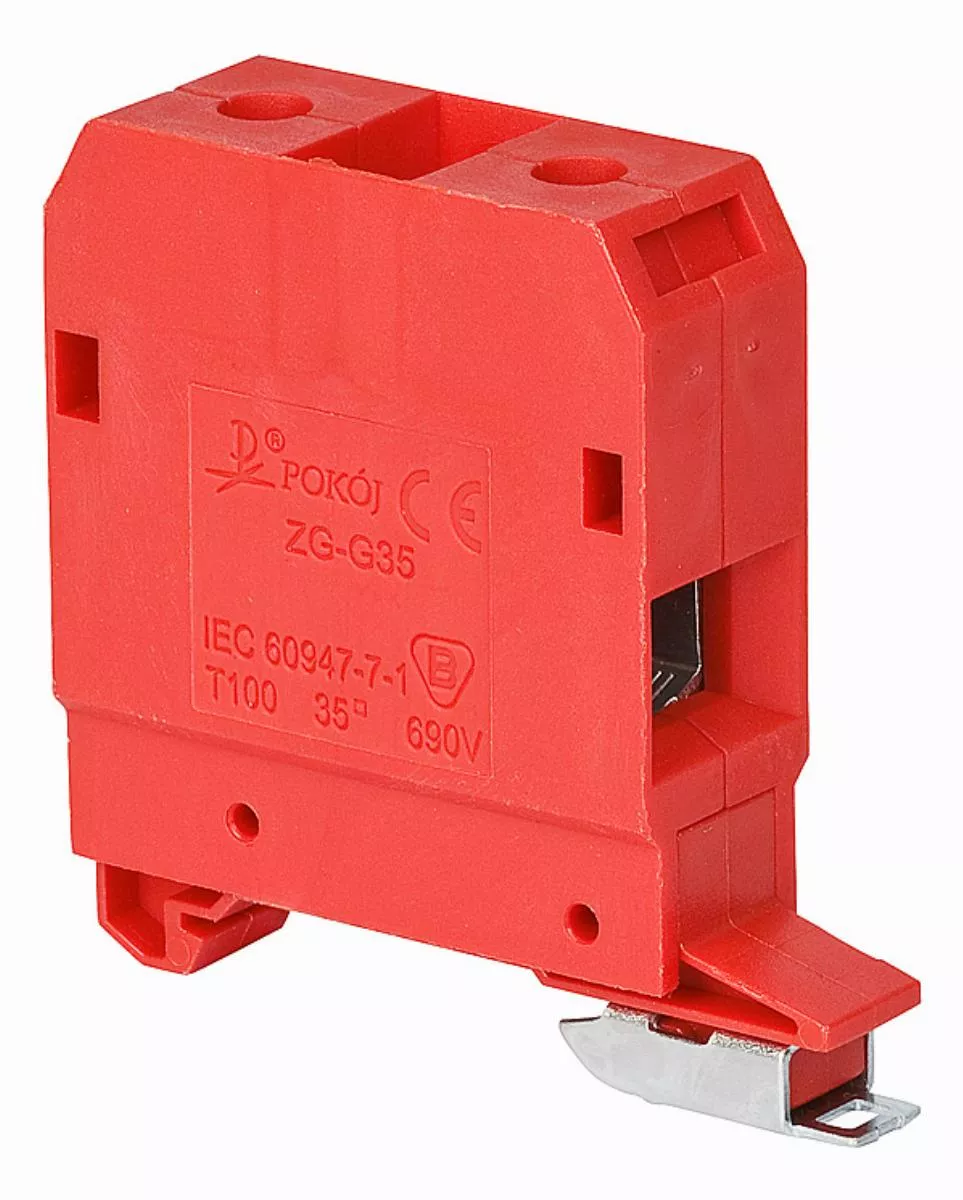

ZG-G35/TS35 ZŁĄCZKA K.CZERWONY
| Information | Value |
|---|---|
| Supplier | POKÓJ S.E. |
| Symbol | A11-1637 |
| GTIN(EAN) | 5902626102173 |
| Price unit | piece |
| Catalog price | 32,29 zł (26,25 zł + 23% VAT) |
| Sale price | from 11,51 zł / szt. (9,36 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Feed-through terminal block |
| Connectable conductor cross section fine-strand without cable end sleeve: | 4 - 25 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 4 - 25 mm² |
| Connectable conductor cross section solid-core: | 4 - 35 mm² |
| Connectable conductor cross section multi-wired: | 4 - 25 mm² |
| Rated current In: | 125 A |
| Rated voltage: | 690 V |
| Type of electrical connection 1: | Screw connection |
| Type of electrical connection 2: | Screw connection |
| Connection position: | Atop |
| Number of levels: | 1 |
| Number of clamp positions per level: | 2 |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Material insulation body: | Thermoplastic |
| Operating temperature: | -25 - 100 °C |
| Inflammability class of insulation material according to with UL94: | V2 |
| Width/grid dimension: | 18.8 mm |
| Length: | 50 mm |
| Explosion-tested version 'Ex e': | no |
| Closing plate required: | yes |
| Colour: | Red |
| Internally connected stages: | no |
