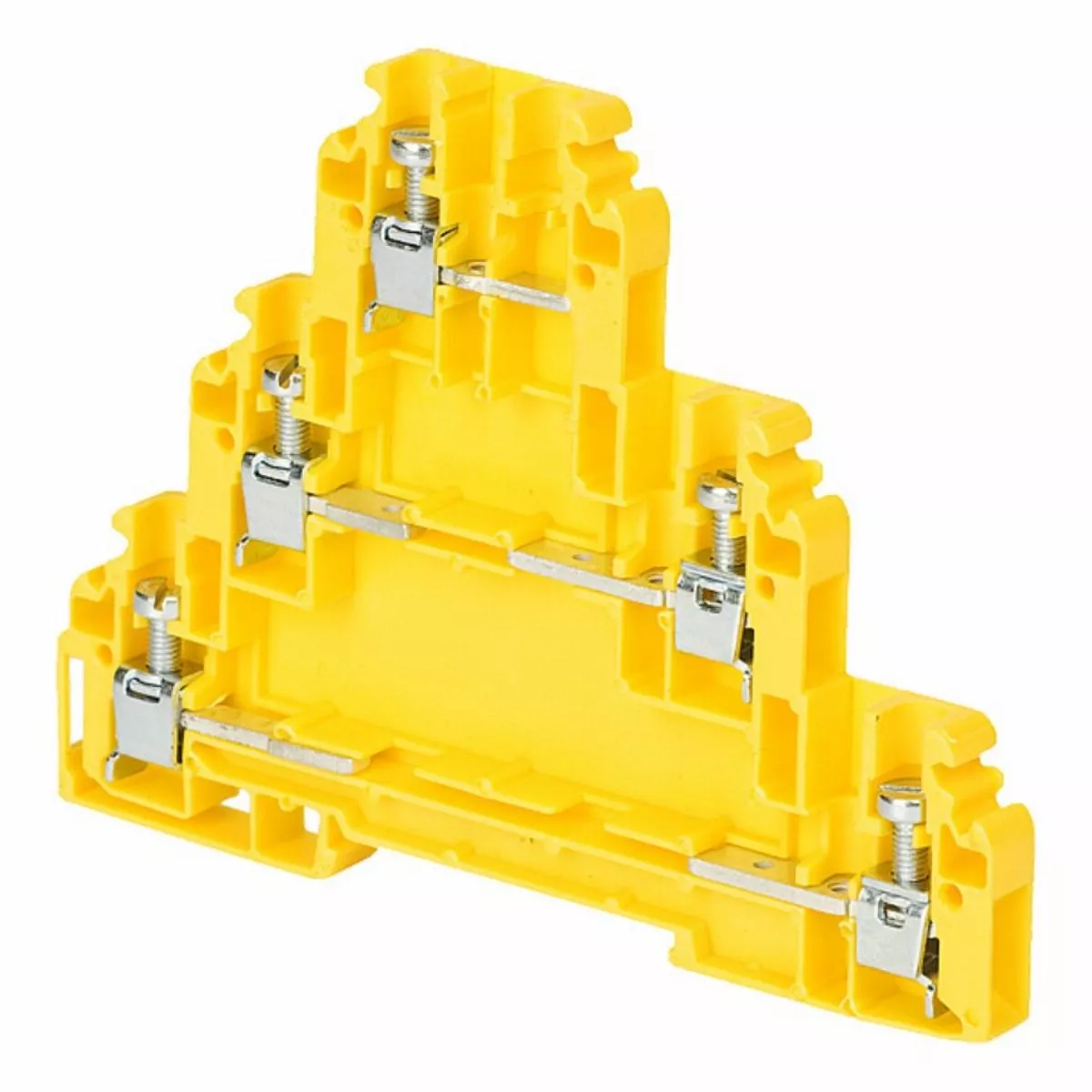

ZG-G/36 ZŁĄCZKA GWINT.3 PIĘTR. K.ŻÓŁTY
| Information | Value |
|---|---|
| Supplier | POKÓJ S.E. |
| Symbol | A03-5001 |
| GTIN(EAN) | 5902626145125 |
| Price unit | piece |
| Catalog price | 21,68 zł (17,63 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Component terminal block |
| Explosion-tested version 'Ex e': | no |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 4 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.5 - 4 mm² |
| Connectable conductor cross section solid-core: | 0.5 - 6 mm² |
| Connectable conductor cross section multi-wired: | 0.5 - 4 mm² |
| Rated current In: | 32 A |
| Rated voltage: | 690 V |
| Type of electrical connection 1: | Screw connection |
| Type of electrical connection 2: | Screw connection |
| Connection position: | Sideways |
| Number of levels: | 3 |
| Number of clamp positions per level: | 2 |
| Internally connected stages: | no |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Material insulation body: | Thermoplastic |
| Operating temperature: | -25 - 100 °C |
| Inflammability class of insulation material according to with UL94: | V2 |
| Width/grid dimension: | 6.4 mm |
| Length: | 93 mm |
| Closing plate required: | yes |
| Colour: | Yellow |
| Type of component: | Other |
