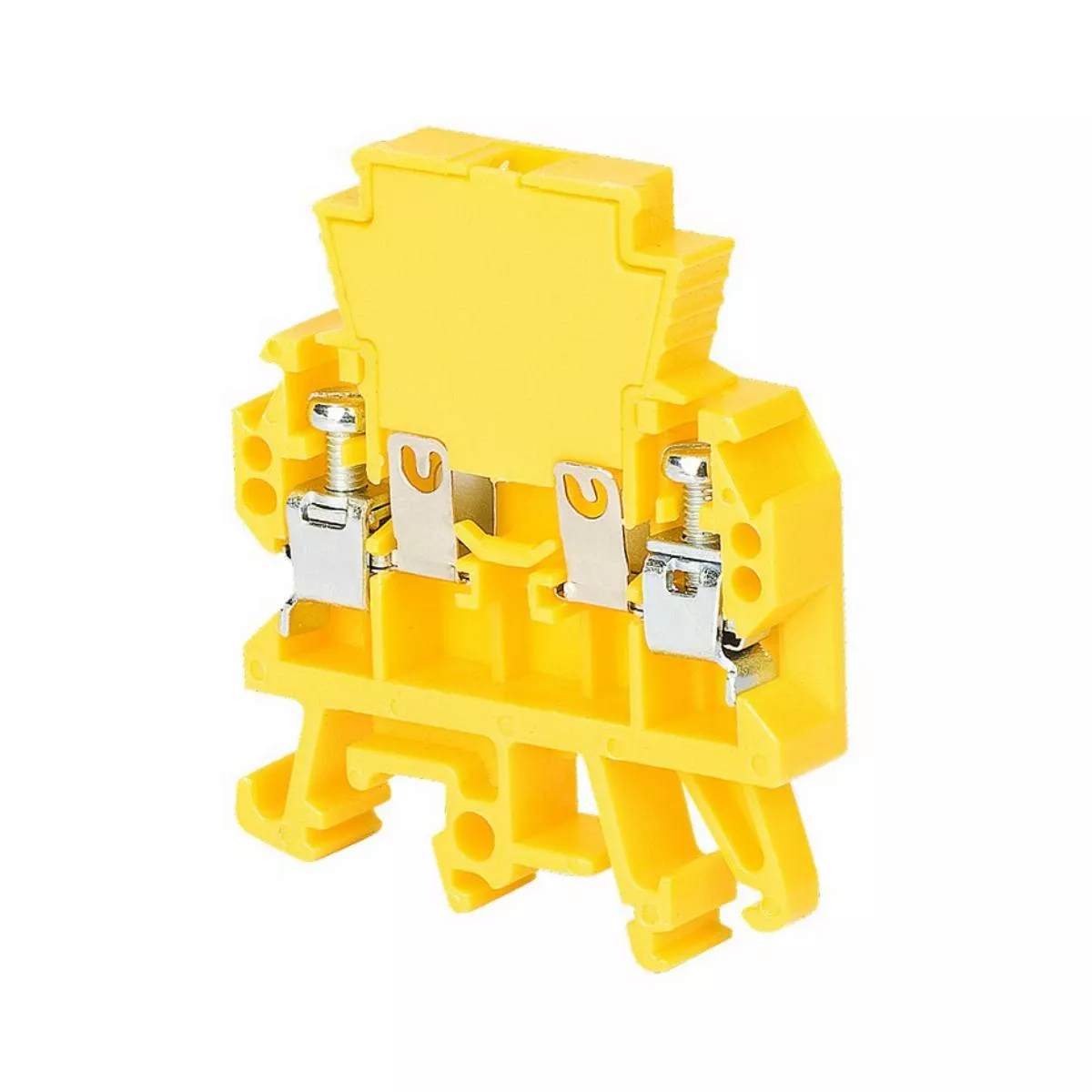

ZŁĄCZKA ZUG-G/BS2 24V AC K. ŻÓŁTY D. ZIELONA
| Information | Value |
|---|---|
| Supplier | POKÓJ S.E. |
| Symbol | A02-2351 |
| GTIN(EAN) | 5902626138875 |
| Price unit | piece |
| Catalog price | 99,45 zł (80,85 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Fuse terminal block |
| Type of fuse insert: | G-fuse 5x20 mm |
| Type of fuse holder: | Pluggable |
| Type of indication element for defect indication: | LED |
| Supply voltage for defect-indication: | 24 - 24 V |
| Voltage type for defect indication: | AC |
| Connectable conductor cross section fine-strand without cable end sleeve: | 0.5 - 4 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 0.5 - 4 mm² |
| Connectable conductor cross section solid-core: | 0.5 - 4 mm² |
| Connectable conductor cross section multi-wired: | 0.5 - 4 mm² |
| Rated current In: | 6.3 A |
| Rated voltage: | 24 V |
| Type of electrical connection 1: | Screw connection |
| Type of electrical connection 2: | Screw connection |
| Number of levels: | 1 |
| Connection position: | Sideways |
| Mounting method: | DIN rail (top hat rail) 35 mm |
| Material insulation body: | Thermoplastic |
| Operating temperature: | -25 - 55 °C |
| Inflammability class of insulation material according to with UL94: | V2 |
| Width/grid dimension: | 8 mm |
| Length: | 43 mm |
| Closing plate required: | yes |
| Colour: | Yellow |
