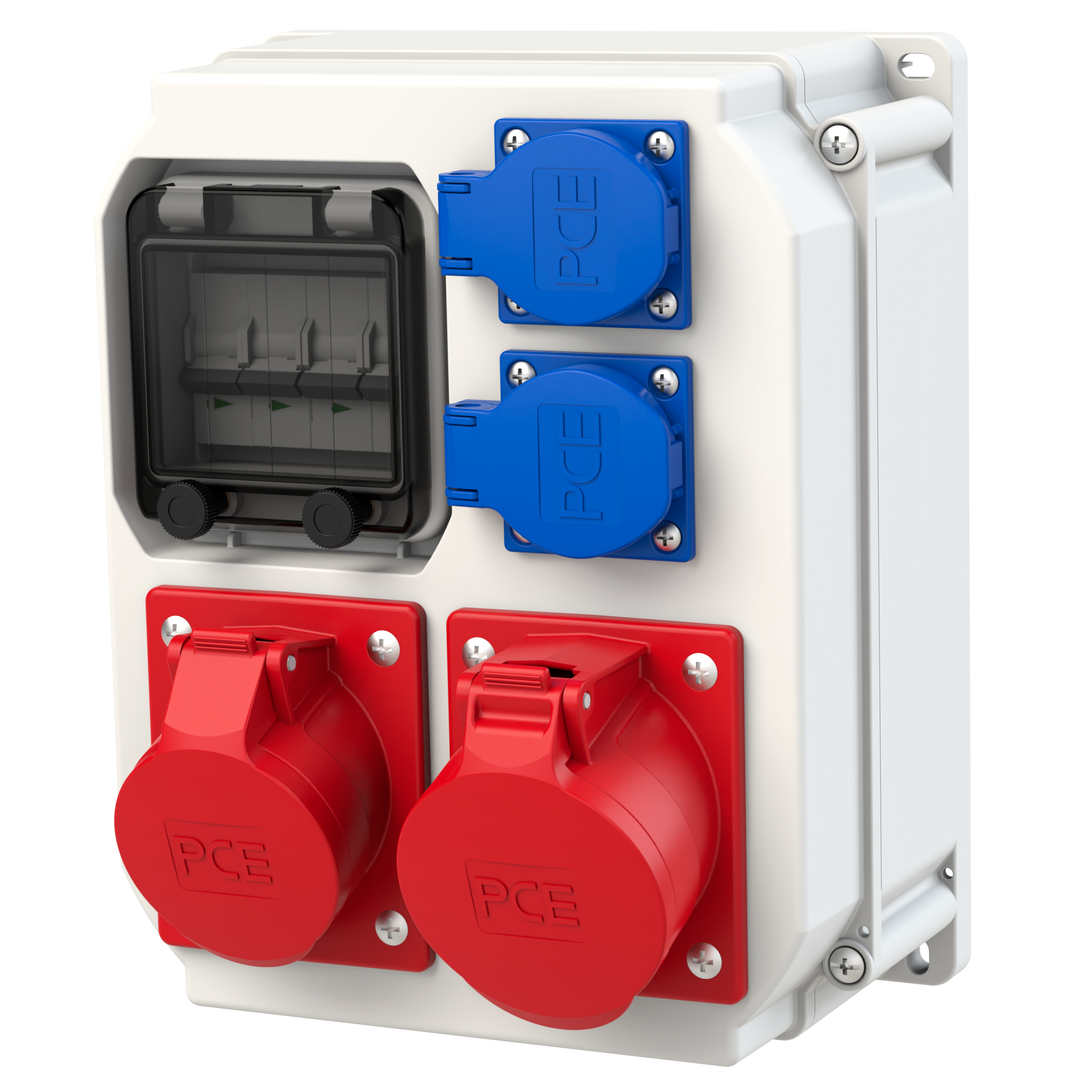

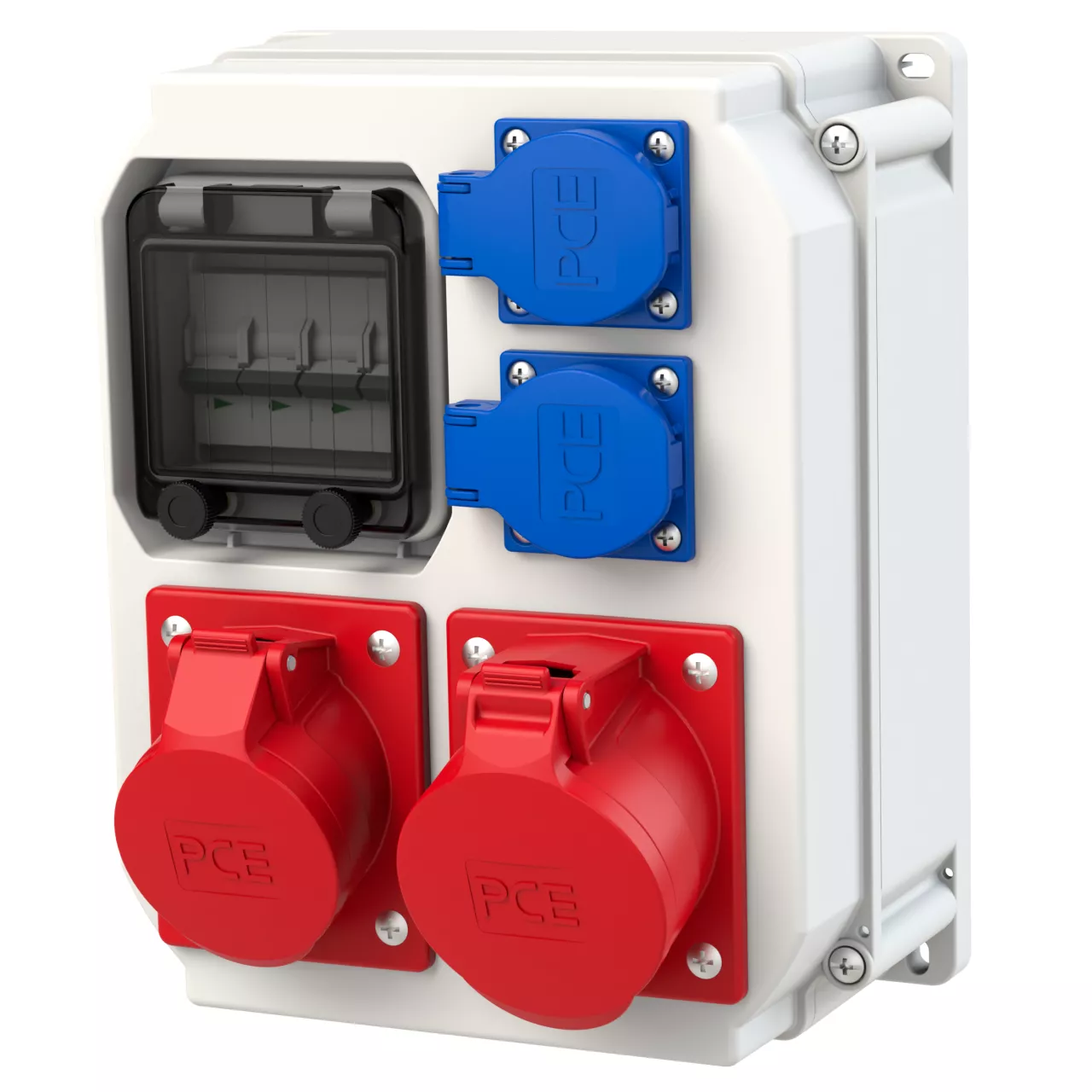

Rozdzielnica z tworzywa seria ECOLINE końcowa 230/400 V 32 A IP54 255x204x114 mm 90EKO104
| Information | Value |
|---|---|
| Supplier | PCE Polska Sp. z o.o. |
| Symbol | 90EKO104 |
| GTIN(EAN) | 5902082085850 |
| Price unit | piece |
| Catalog price | 434,83 zł (353,52 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Rozdzielnica z tworzywa seria ECOLINE 1 x gniazdo CEE 32A 5P 400V niezabezpieczone 1 x gniazdo CEE 16A 5P 400V z zabezpieczeniem 1x B16 3P 2 x GS 16A 230V z zabezpieczeniem 1x B16 1P
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Energy distributor for construction site |
| Model: | Distributor cabinet |
| Rated voltage: | 230/400 V |
| Rated current: | 32 A |
| Number of CEE socket outlets (IEC 60309) 16 A / 24 V / 2P (L, N): | 0 |
| Number of CEE socket outlets (IEC 60309) 16 A / 230 V / 3P (L, N, PE): | 0 |
| Number of CEE socket outlets (IEC 60309) 16 A / 230 V / 5P (1, 2, 3, N, PE): | 0 |
| Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 4P (1, 2, 3, PE): | 0 |
| Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE): | 1 |
| Number of CEE socket outlets (IEC 60309) 32 A / 230 V / 4P (1, 2, 3, PE): | 0 |
| Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 4P (1, 2, 3, PE): | 0 |
| Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE): | 1 |
| Number of CEE socket outlets (IEC 60309) 63 A / 230 V / 4P (1, 2, 3, PE): | 0 |
| Number of CEE socket outlets (IEC 60309) 63 A / 400 V / 5P (1, 2, 3, N, PE): | 0 |
| Number of CEE socket outlets (IEC 60309) 125 A / 230 V / 4P (1, 2, 3, PE): | 0 |
| Number of CEE socket outlets (IEC 60309) 125A / 400 V / 5P (1, 2, 3, N, PE): | 0 |
| Number of socket outlets with protective contact CEE 7/3 (type F): | 2 |
| Number of socket outlets Swiss standard type 13: | 0 |
| Number of socket outlets Swiss standard type 15: | 0 |
| Number of socket outlets Swiss standard type 23: | 0 |
| Number of socket outlets Swiss standard type 25: | 0 |
| Main switch: | None |
| Number of miniature circuit breakers (MCB): | 2 |
| Number of earth leakage switches 10 mA: | 0 |
| Number of earth leakage switches 30 mA: | 0 |
| Number of earth leakage switches 100 mA: | 0 |
| Number of earth leakage switches 300 mA: | 0 |
| Emergency stop button: | no |
| Degree of protection (IP): | IP54 |
| Housing material: | Plastic |
| Width: | 204 mm |
| Height: | 255 mm |
| Depth: | 114 mm |
