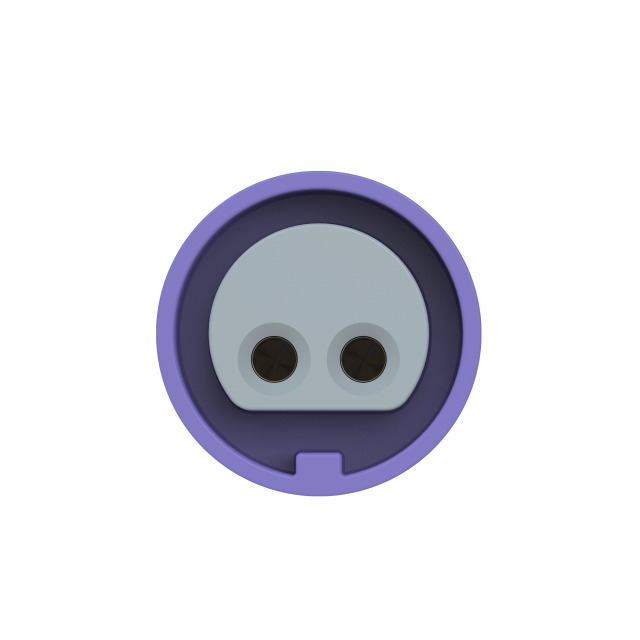

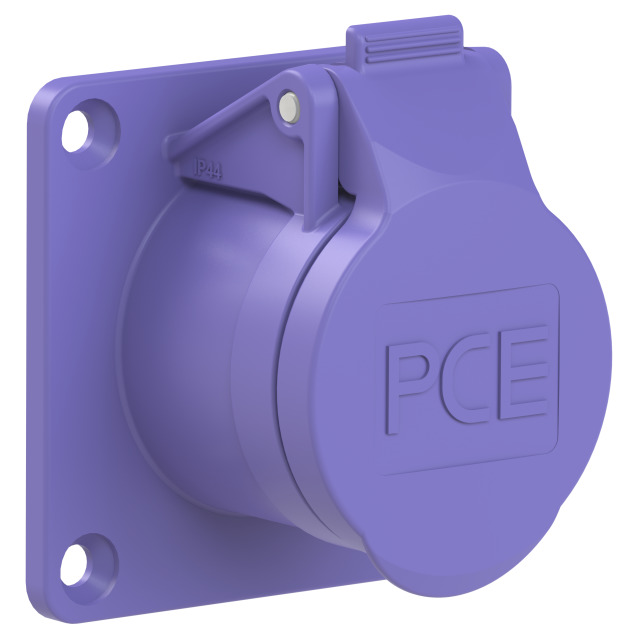

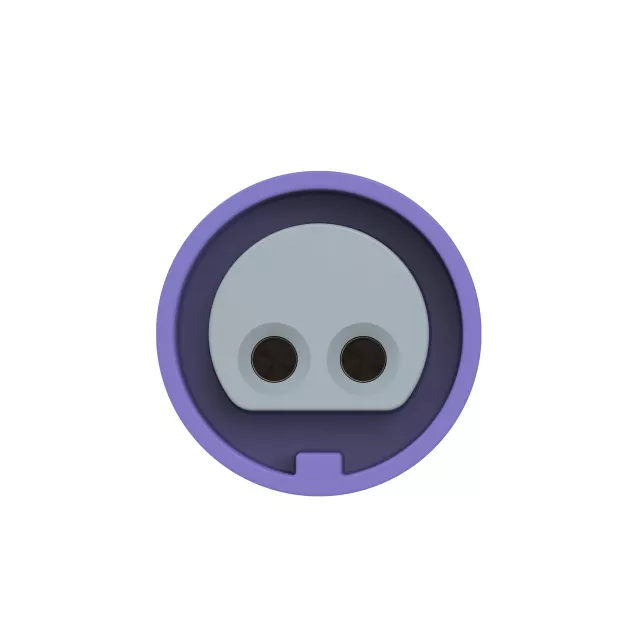

Gniazdo tablicowe proste 24V 16A 24V/~50-60Hz 2P 70x70mm
| Information | Value |
|---|---|
| Supplier | PCE Polska Sp. z o.o. |
| Symbol | 362v |
| GTIN(EAN) | 9003399048784 |
| Price unit | piece |
| Catalog price | 39,61 zł (32,20 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Panel-mounted CEE socket outlet (IEC 60309) |
| IEC-amperage: | 16 A |
| Voltage according to EN 60309-2: | 20-25 V (50+60 Hz) violet |
| Rated frequency: | 50 - 60 Hz |
| Number of poles: | 2 |
| Identification colour: | Purple |
| RAL-number: | 4005 |
| Degree of protection (IP): | IP44 |
| Connection system: | Screwed terminal |
| Insert direction: | Straight |
| Material: | Plastic |
| Contact material: | CuZn |
| Surface treatment contacts: | Nickel-plated |
| Military model: | no |
| Flange size vertical: | 70 mm |
| Drill hole distance vertical: | 56 mm |
| Flange size horizontal: | 70 mm |
| Drill hole distance horizontal: | 56 mm |
