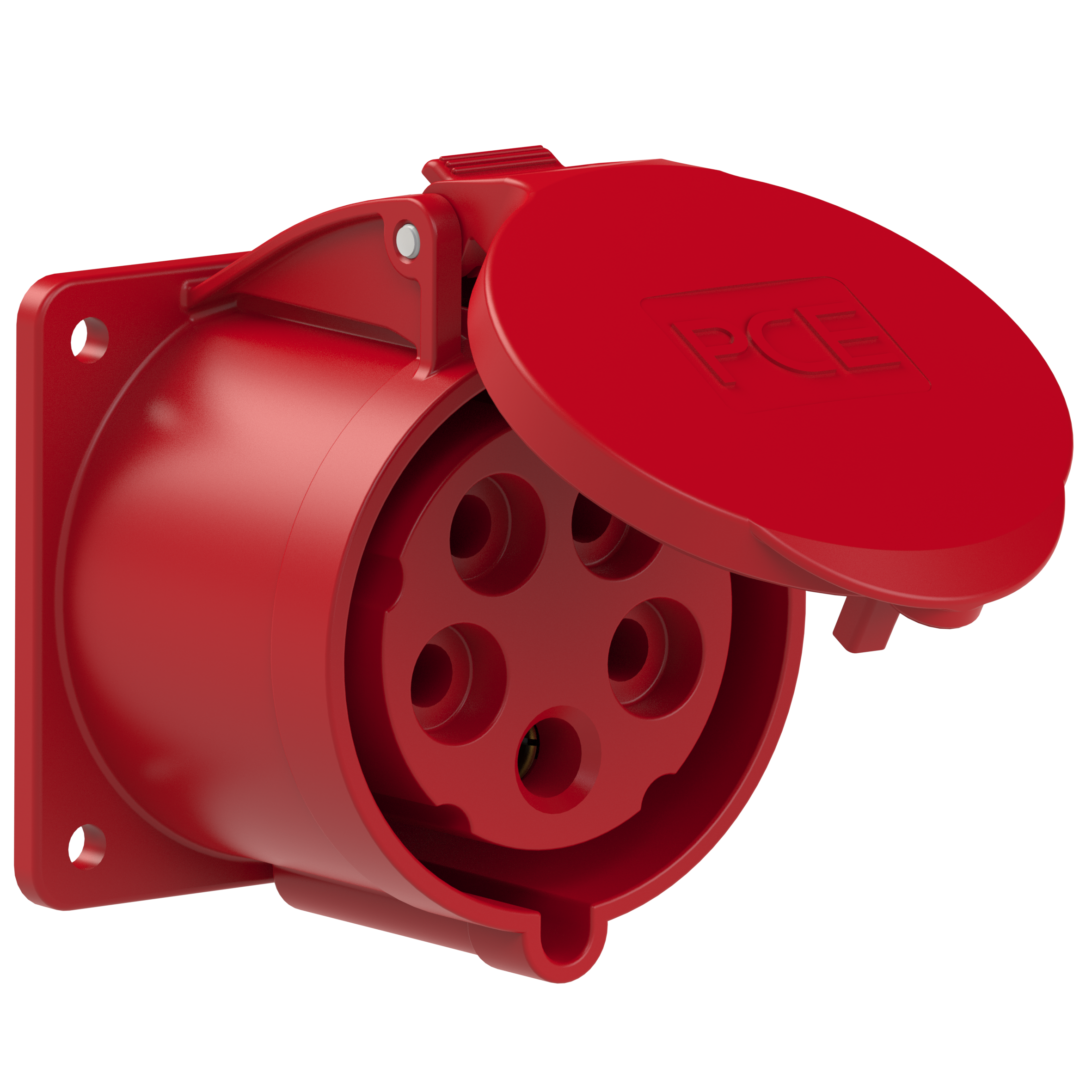

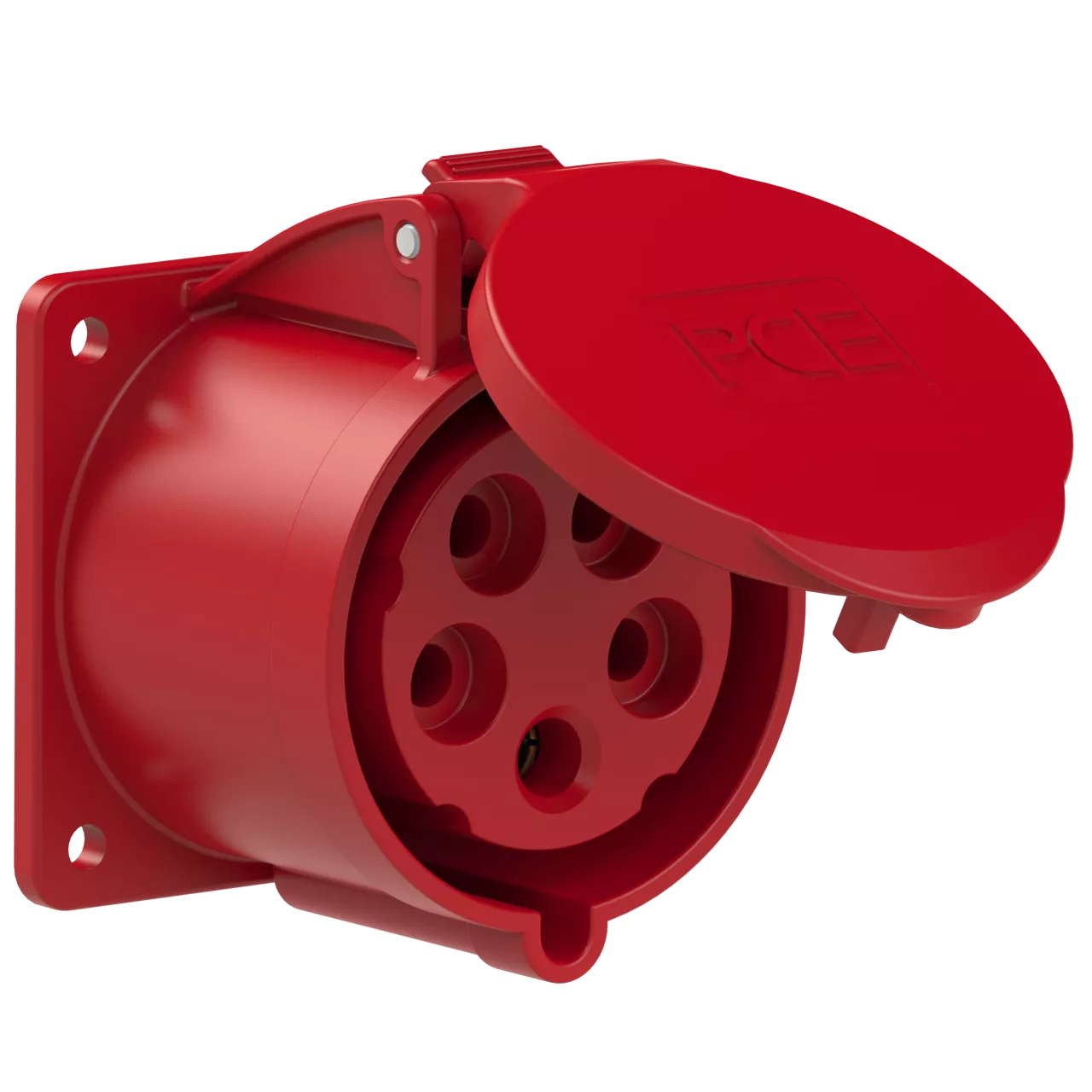

Gniazdo tablicowe proste TWIST 32A 400V 3P+Z+N 75x75mm
| Information | Value |
|---|---|
| Supplier | PCE Polska Sp. z o.o. |
| Symbol | 325-6f7 |
| GTIN(EAN) | 9003399047282 |
| Price unit | piece |
| Catalog price | 42,25 zł (34,35 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Panel-mounted CEE socket outlet (IEC 60309) |
| IEC-amperage: | 32 A |
| Voltage according to EN 60309-2: | 400 V (50+60 Hz) red |
| Number of poles: | 5 |
| Clock hour position: | 6 h |
| Identification colour: | Red |
| RAL-number: | 3000 |
| Degree of protection (IP): | IP54 |
| Connection system: | Screwed terminal |
| Insert direction: | Straight |
| Material: | Plastic |
| Contact material: | CuZn |
| Surface treatment contacts: | Untreated |
| Military model: | no |
| Flange size vertical: | 75 mm |
| Drill hole distance vertical: | 60 mm |
| Flange size horizontal: | 75 mm |
| Drill hole distance horizontal: | 60 mm |
