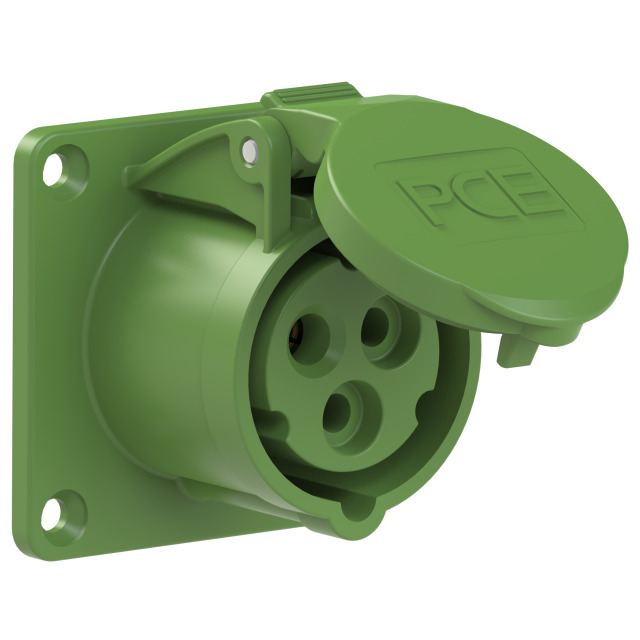

Gniazdo tablicowe proste 16A 2P+Z >50-500V 100-300Hz 10h IP44, kołnierz 70X70, rozstaw śrub 56X56
| Information | Value |
|---|---|
| Supplier | PCE Polska Sp. z o.o. |
| Symbol | 313-10 |
| GTIN(EAN) | 9003399043031 |
| Price unit | piece |
| Catalog price | On demand |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Panel-mounted CEE socket outlet (IEC 60309) |
| IEC-amperage: | 16 A |
| Voltage according to EN 60309-2: | 50-500 V (100-300 Hz) green |
| Number of poles: | 3 |
| Clock hour position: | 10 h |
| Identification colour: | Green |
| Degree of protection (IP): | IP54 |
| Connection system: | Screwed terminal |
| Insert direction: | Straight |
| Material: | Plastic |
| Contact material: | CuZn |
| Surface treatment contacts: | Untreated |
| Flange size vertical: | 70 mm |
| Drill hole distance vertical: | 56 mm |
| Flange size horizontal: | 70 mm |
| Drill hole distance horizontal: | 56 mm |
