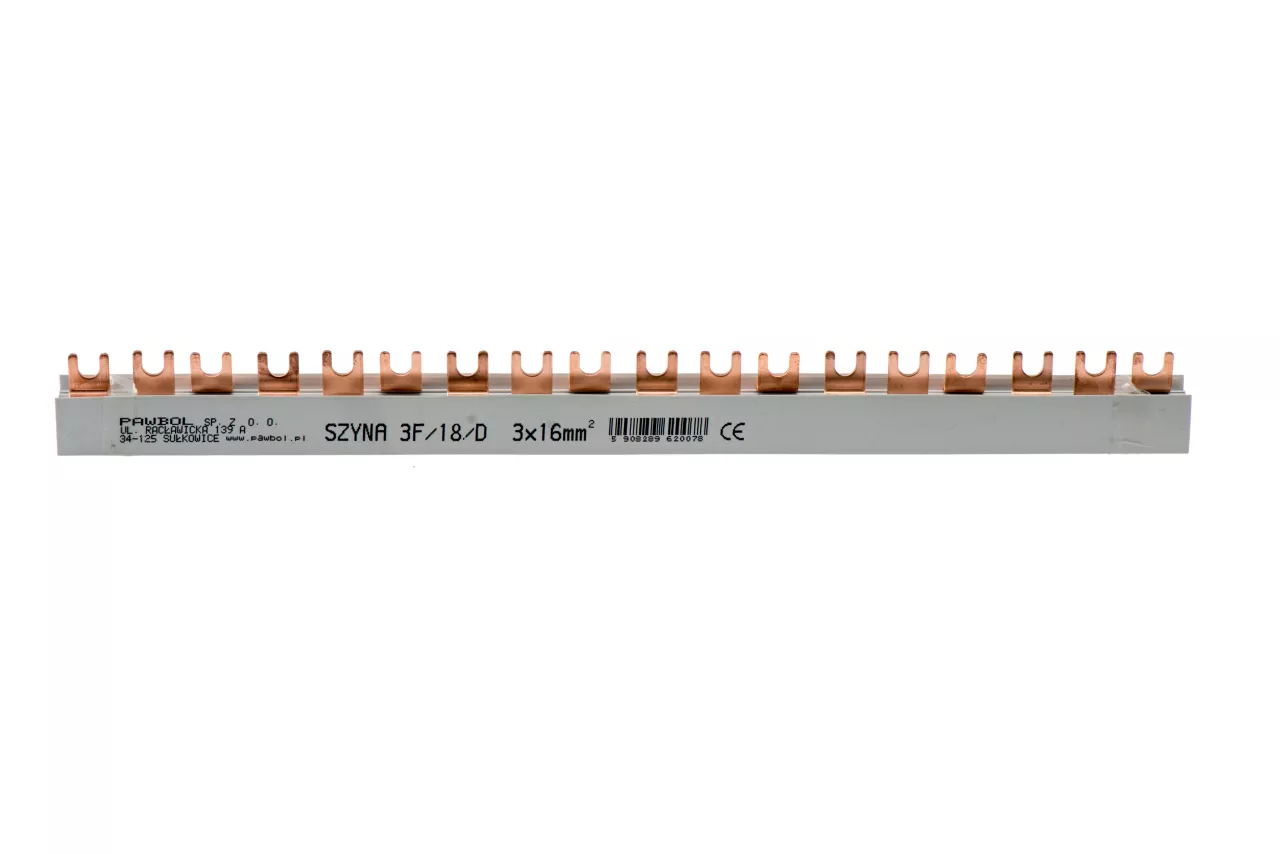

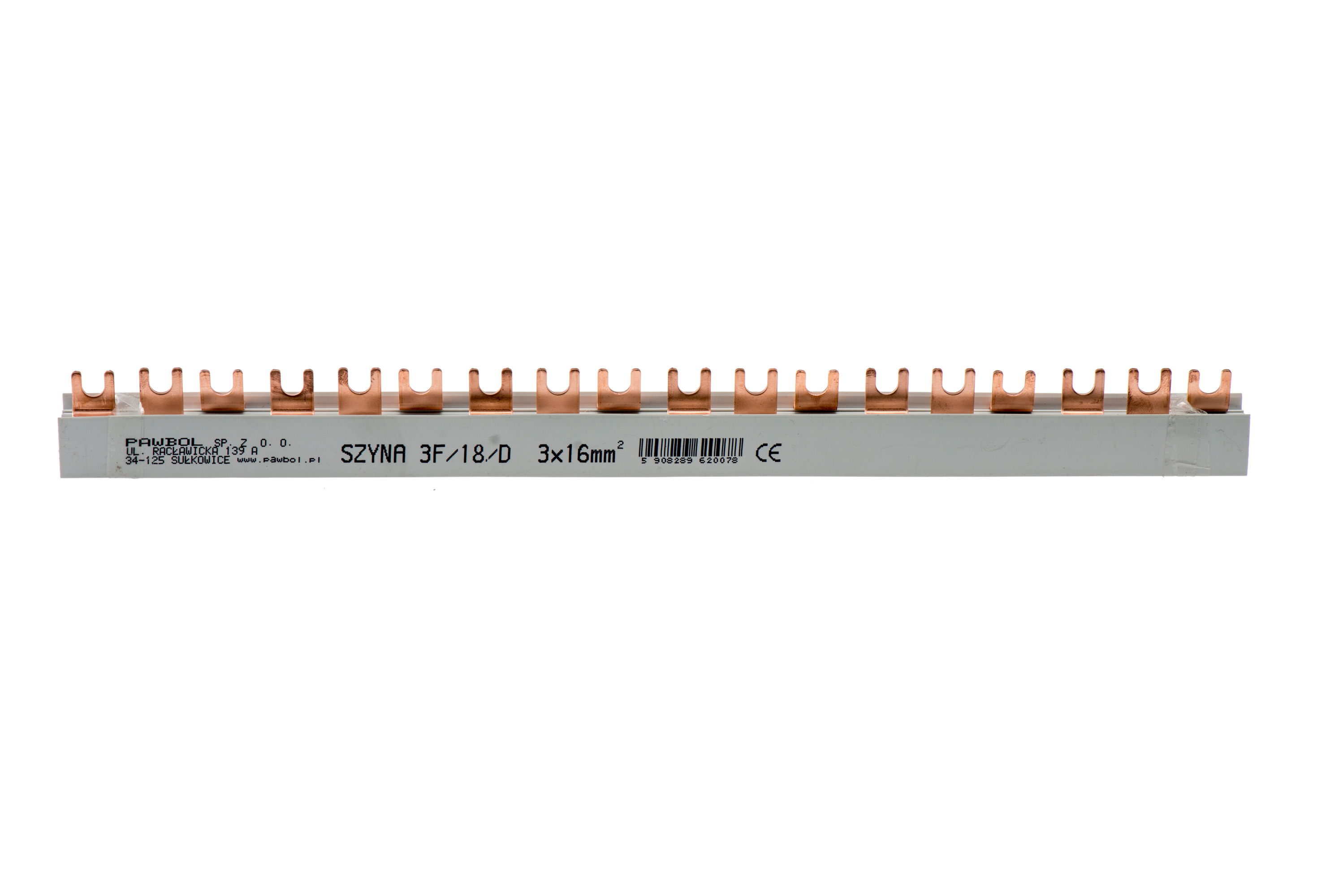

Szyna prądowa 3F S18,16mm,80A, dzielona
| Information | Value |
|---|---|
| Supplier | PAWBOL S.A |
| Symbol | E.4309B |
| GTIN(EAN) | 5908289620078 |
| Price unit | piece |
| Catalog price | 68,04 zł (55,32 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 200 g |
| ETIM class: | Phase busbar |
| Number of phases: | 3 |
| Number of poles: | 3 |
| Suitable for number of devices: | 6 |
| Module width: | 17.8 mm |
| Cross section: | 16 mm² |
| Length: | 322 mm |
| Width in number of modular spacings: | 3 |
| Rated permanent current Iu: | 80 A |
| Type of electric connection: | Fork |
| Insulated: | yes |
| Rated surge voltage: | 2.5 kV |
| Conditioned rated short-circuit current Iq: | 0 kA |
| Max. rated operation voltage Ue: | 400 V |
| Rated short-time withstand current lcw: | 0 kA |
| Suitable for devices with N-conductor: | no |
| Suitable for devices with auxiliary switch: | no |
| Colour: | Grey |
| Can be cut to size: | yes |
Buy online
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Limanowa,
ul. Tarnowska 9D
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-10-03 10:54:08 |
| Files to download: |
