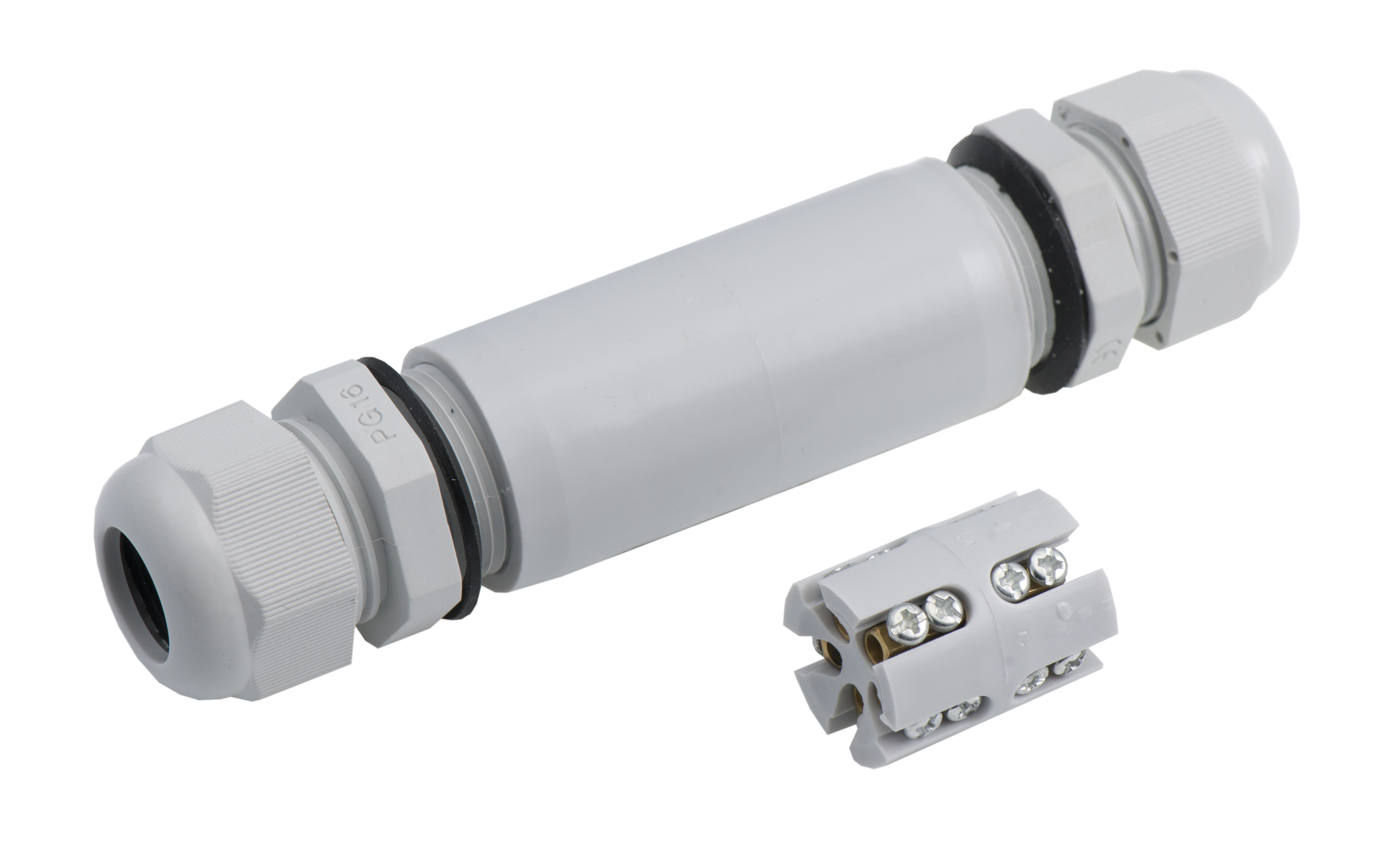

Złącze kablowe SP2,5 5x2,5mm2/PG16
| Information | Value |
|---|---|
| Supplier | PAWBOL S.A |
| Symbol | E.4203 |
| GTIN(EAN) | 5905793084730 |
| Price unit | piece |
| Catalog price | 38,47 zł (31,28 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 63 g |
| Country of origin | Polska |
| ETIM class: | Circular connector for field assembly (industrial connector) |
| Contact type: | Other |
| Diameter connector: | 20.3 mm |
| Thread size M: | 16 |
| Type of housing: | Straight |
| Rated current In: | 24 A |
| Ambient temperature: | -25 - 70 °C |
| Rated voltage: | 400 V |
| Connectable conductor cross section fine-strand without cable end sleeve: | 1 - 2.5 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 1 - 1.5 mm² |
| Connectable conductor cross section solid-core: | 1 - 2.5 mm² |
| Connectable conductor cross section multi-wired: | 1 - 2.5 mm² |
| Type of electric connection: | Screw connection |
| Material of contact surface: | Brass |
| Housing material: | Plastic |
| Coating housing: | Plastic-coated |
| Material thread ring: | Plastic |
| Type of locking: | Other |
| Inflammability class of insulation material according to with UL94: | V0 |
| With protective conductor: | yes |
| Degree of protection (IP), mounted: | IP67 |
| Number of data contacts: | 0 |
| Number of power contacts: | 0 |
| Number of control contacts: | 0 |
| For cable outer diameter: | 1 - 2.5 mm |
| Screened: | no |
| With status indication: | no |
