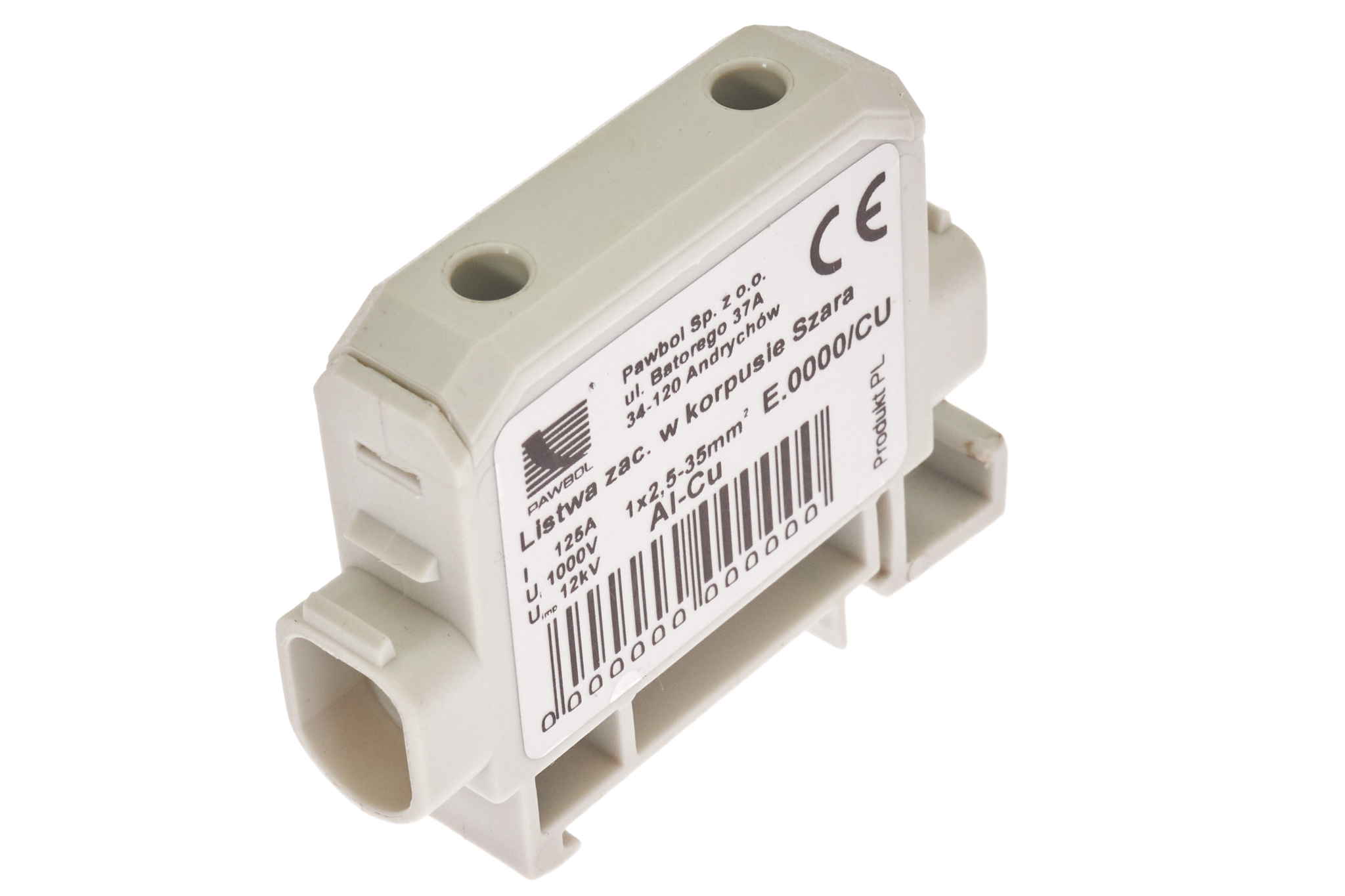

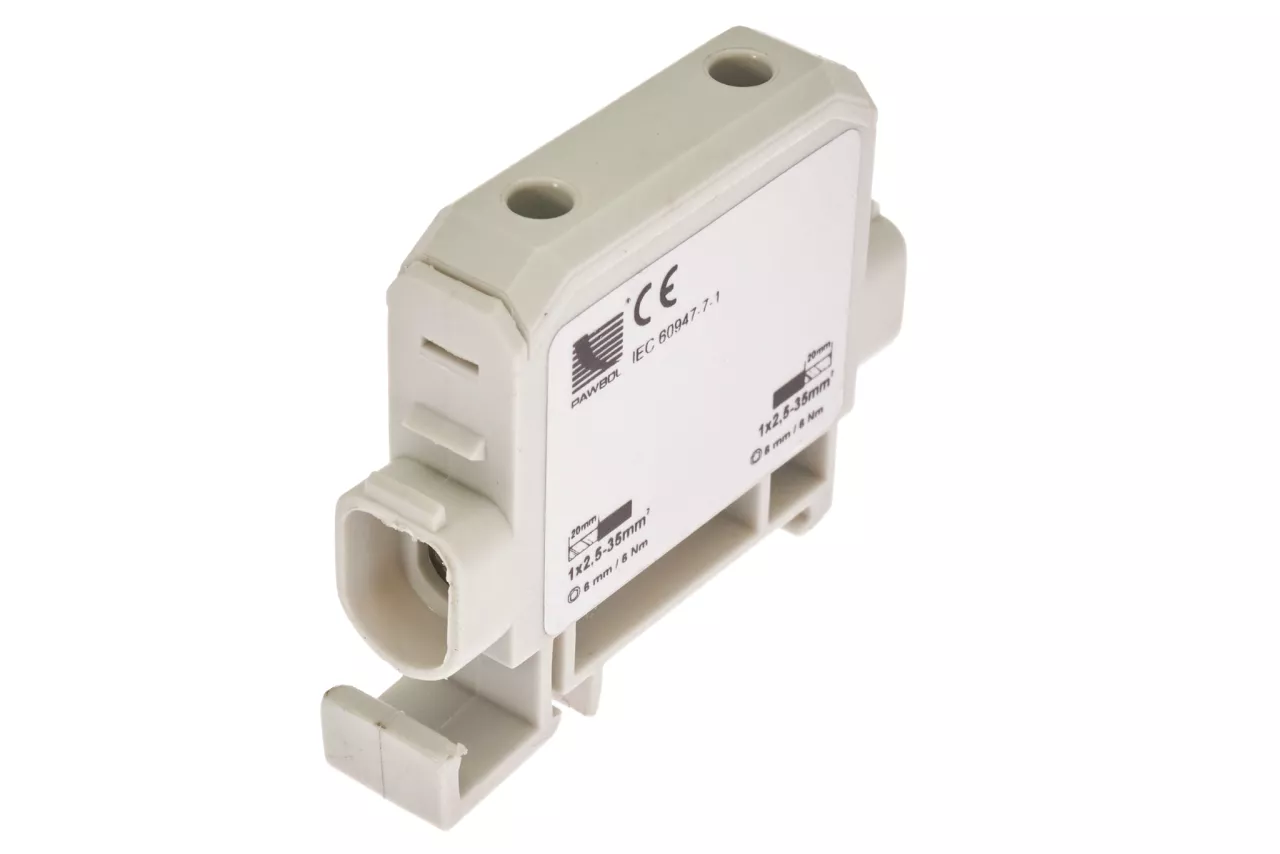

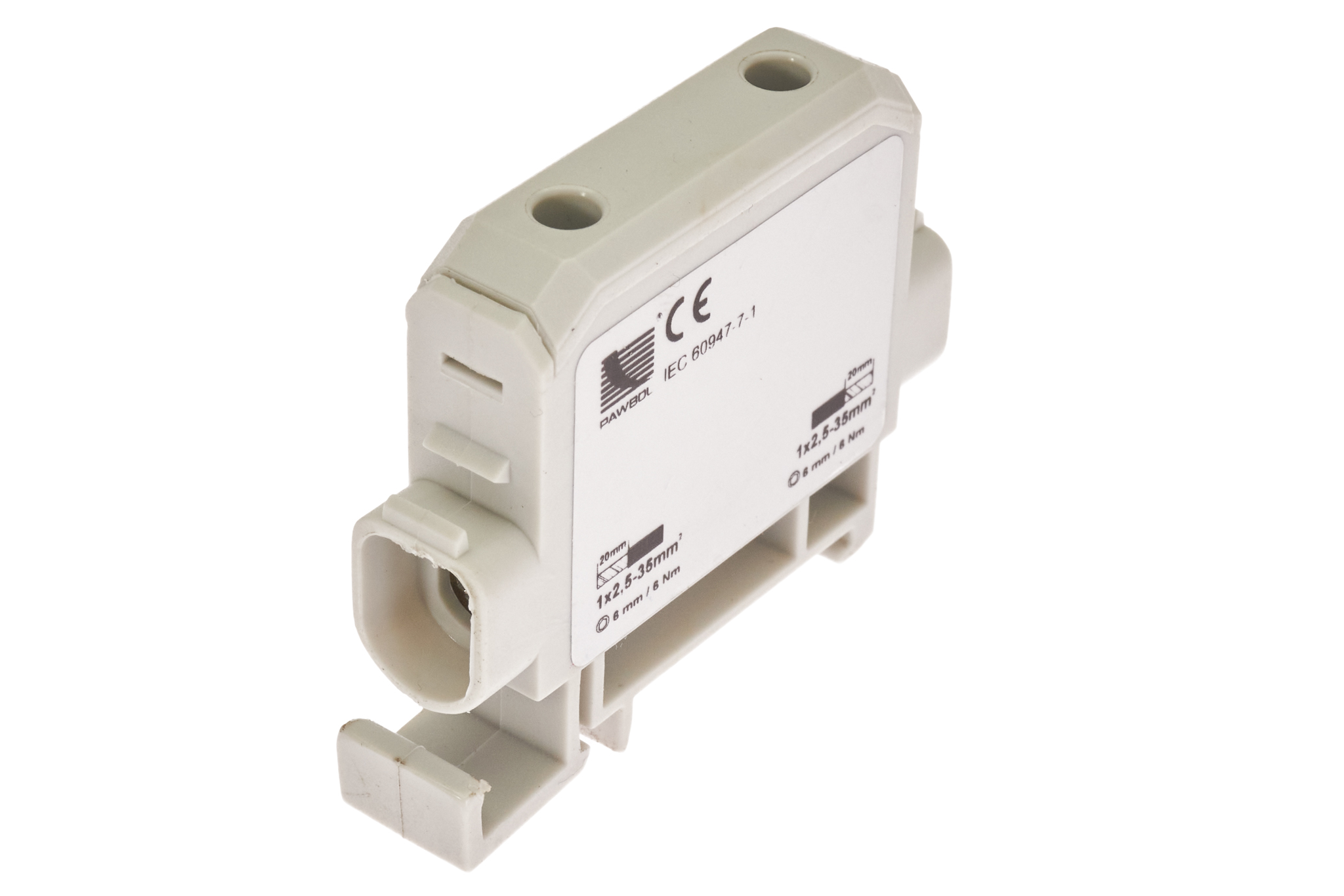

Listwa zaciskowa w korpusie 1x2,5-35 szara AL/CU
Information | Value |
---|---|
Supplier | PAWBOL S.A |
Symbol | E.4145/CU |
GTIN(EAN) | 5902983356431 |
Price unit | piece |
Catalog price | 13,69 zł (11,13 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 25 g |
ETIM class: | Single- and multi-pole terminal strip |
Drill hole distance centrically: | 0 mm |
Explosion-tested version 'Ex e': | no |
Connectable conductor cross section fine-strand without cable end sleeve: | 35 - 35 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 35 - 35 mm² |
Connectable conductor cross section solid-core: | 35 - 35 mm² |
Connectable conductor cross section multi-wired: | 35 - 35 mm² |
Rated current In: | 125 A |
Rated voltage: | 415 V |
Type of electrical connection 1: | Screw connection |
Type of electrical connection 2: | Other |
Number of poles: | 1 |
Number of clamp positions per pole: | 1 |
Mounting method: | DIN rail (top hat rail) 35 mm |
Material insulation body: | Thermoplastic |
Operating temperature: | -30 - 80 °C |
Inflammability class of insulation material according to with UL94: | Other |
Halogen free: | no |
Width: | 18 mm |
Height: | 47 mm |
Depth: | 47 mm |
Closing plate required: | no |
Colour: | Grey |
Transparent: | no |
