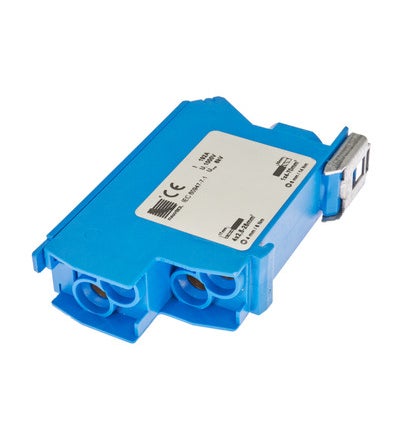

Blok rozdzielczy 1x4-70/4x2,5-25/N
Information | Value |
---|---|
Supplier | PAWBOL S.A |
Symbol | E.4094/N |
GTIN(EAN) | 5902983356363 |
Price unit | piece |
Catalog price | 56,22 zł (45,71 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 117 g |
ETIM class: | Single- and multi-pole terminal strip |
Drill hole distance centrically: | 0 mm |
Explosion-tested version 'Ex e': | no |
Connectable conductor cross section fine-strand without cable end sleeve: | 25 - 70 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 25 - 70 mm² |
Connectable conductor cross section solid-core: | 25 - 70 mm² |
Connectable conductor cross section multi-wired: | 25 - 70 mm² |
Rated current In: | 192 A |
Rated voltage: | 415 V |
Type of electrical connection 1: | Screw connection |
Type of electrical connection 2: | Other |
Number of poles: | 1 |
Mounting method: | DIN rail (top hat rail) 35 mm |
Material insulation body: | Thermoplastic |
Operating temperature: | -30 - 80 °C |
Inflammability class of insulation material according to with UL94: | Other |
Halogen free: | no |
Width: | 18 mm |
Height: | 45 mm |
Depth: | 45 mm |
Closing plate required: | no |
Colour: | Blue |
Transparent: | no |
