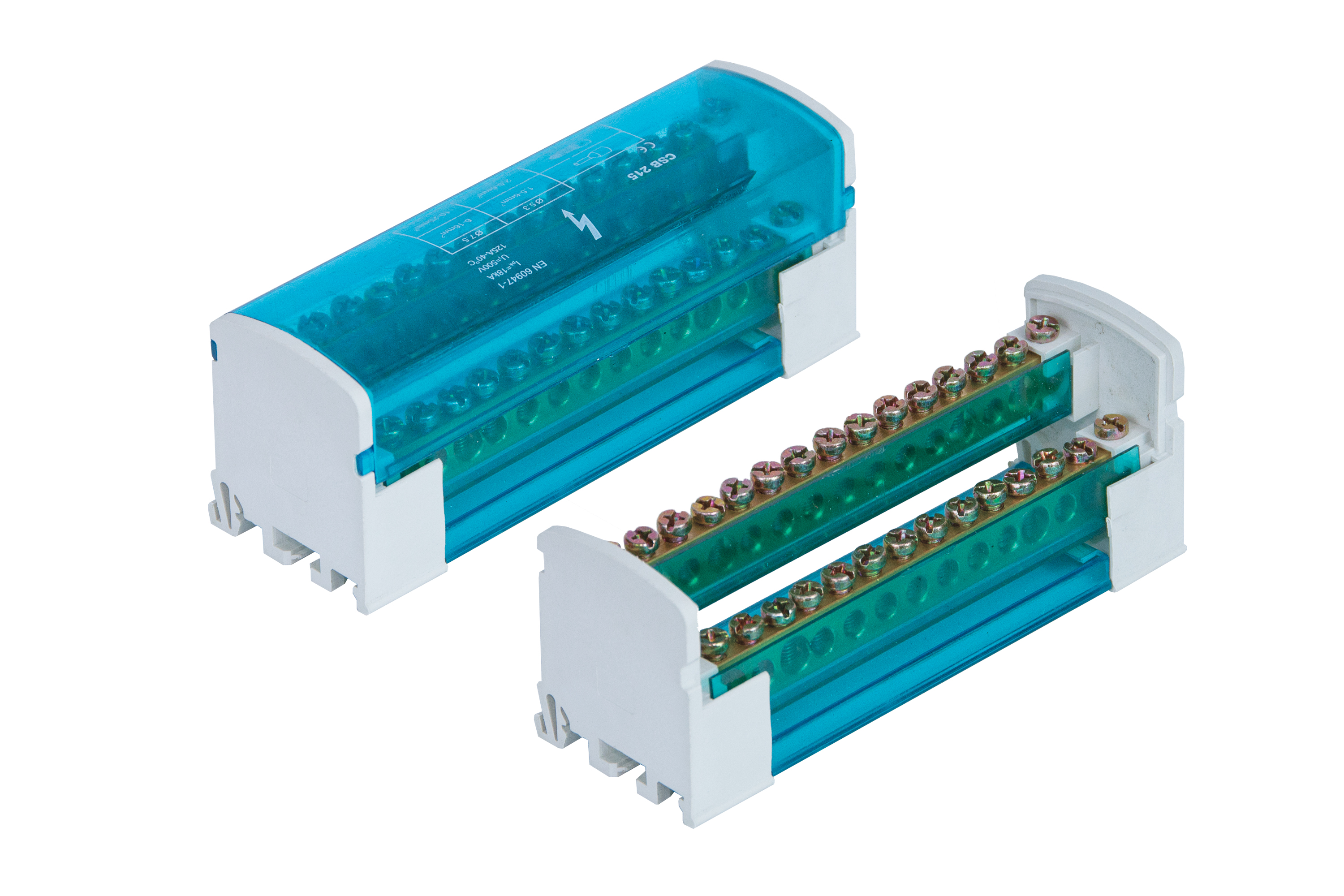

Listwa łączeniowa 2x15, 125A/500V /blok/
| Information | Value |
|---|---|
| Supplier | PAWBOL S.A |
| Symbol | E.4075 |
| GTIN(EAN) | 5908289622157 |
| Price unit | piece |
| Catalog price | 47,65 zł (38,74 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 220 g |
| ETIM class: | Main line branch terminal |
| Number of poles: | 2 |
| Nominal current: | 160 A |
| Connection type: | Screwing |
| Mounting method: | DIN rail |
| Contact safe: | yes |
| Height: | 51 mm |
| Width: | 133 mm |
| Depth: | 44 mm |
| Number of inputs: | 30 |
| Number of outputs: | 30 |
| Suitable for solid conductors: | yes |
| Suitable for stranded conductors: | yes |
| Suitable for fine strand conductors: | yes |
| Suitable for fine strand conductors without cable end sleeve: | yes |
| Suitable for extra fine-strand conductors: | yes |
| Suitable for extra fine-strand conductors without cable end sleeve: | yes |
| Conductor cross section, input: | 10 - 35 mm² |
| Conductor cross section, output: | 10 - 35 mm² |
| Conductor cross section, input AWG: | 7 - 2 |
| Conductor cross section, output AWG: | 7 - 2 |
