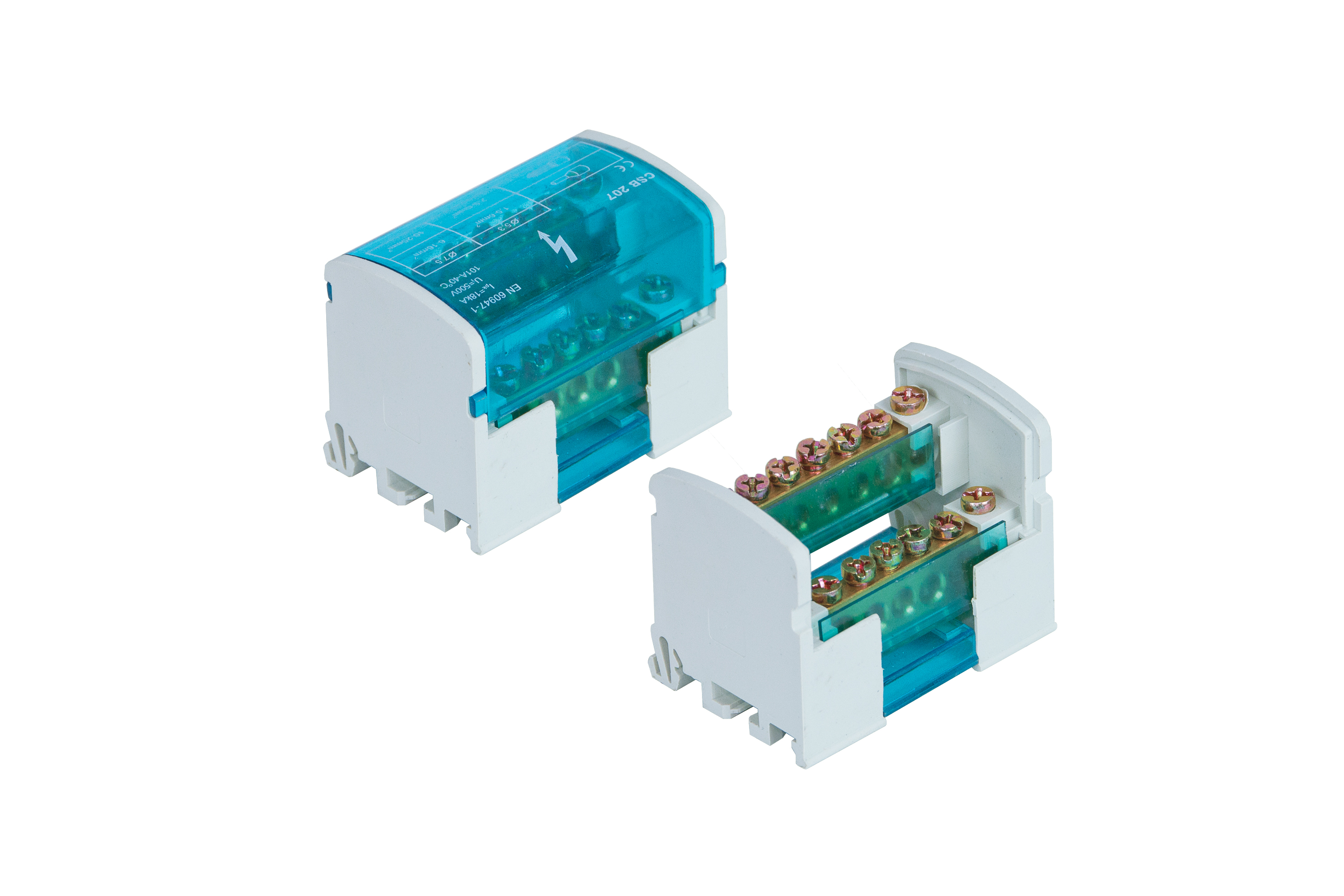

Listwa łączeniowa 2x7, 100A/500V /blok/
Information | Value |
---|---|
Supplier | PAWBOL S.A |
Symbol | E.4073 |
GTIN(EAN) | 5908289622140 |
Price unit | piece |
Catalog price | 31,98 zł (26,00 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 110 g |
ETIM class: | Main line branch terminal |
Number of poles: | 2 |
Nominal current: | 160 A |
Connection type: | Screwing |
Mounting method: | DIN rail |
Contact safe: | yes |
Height: | 51 mm |
Width: | 66 mm |
Depth: | 44 mm |
Number of inputs: | 14 |
Number of outputs: | 14 |
Suitable for solid conductors: | yes |
Suitable for stranded conductors: | yes |
Suitable for fine strand conductors: | yes |
Suitable for fine strand conductors without cable end sleeve: | yes |
Suitable for extra fine-strand conductors: | yes |
Suitable for extra fine-strand conductors without cable end sleeve: | yes |
Conductor cross section, input: | 10 - 25 mm² |
Conductor cross section, output: | 10 - 25 mm² |
Conductor cross section, input AWG: | 7 - 3 |
Conductor cross section, output AWG: | 7 - 3 |
