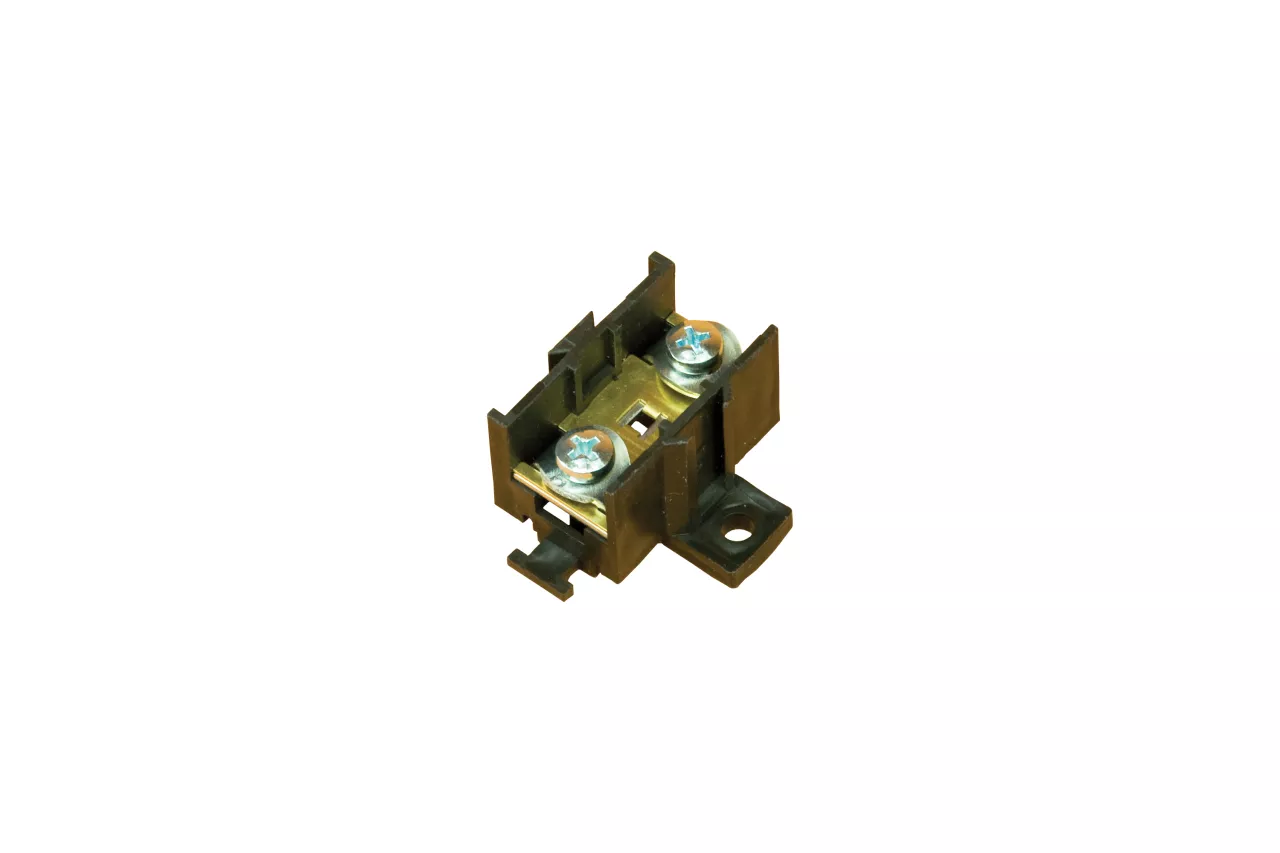

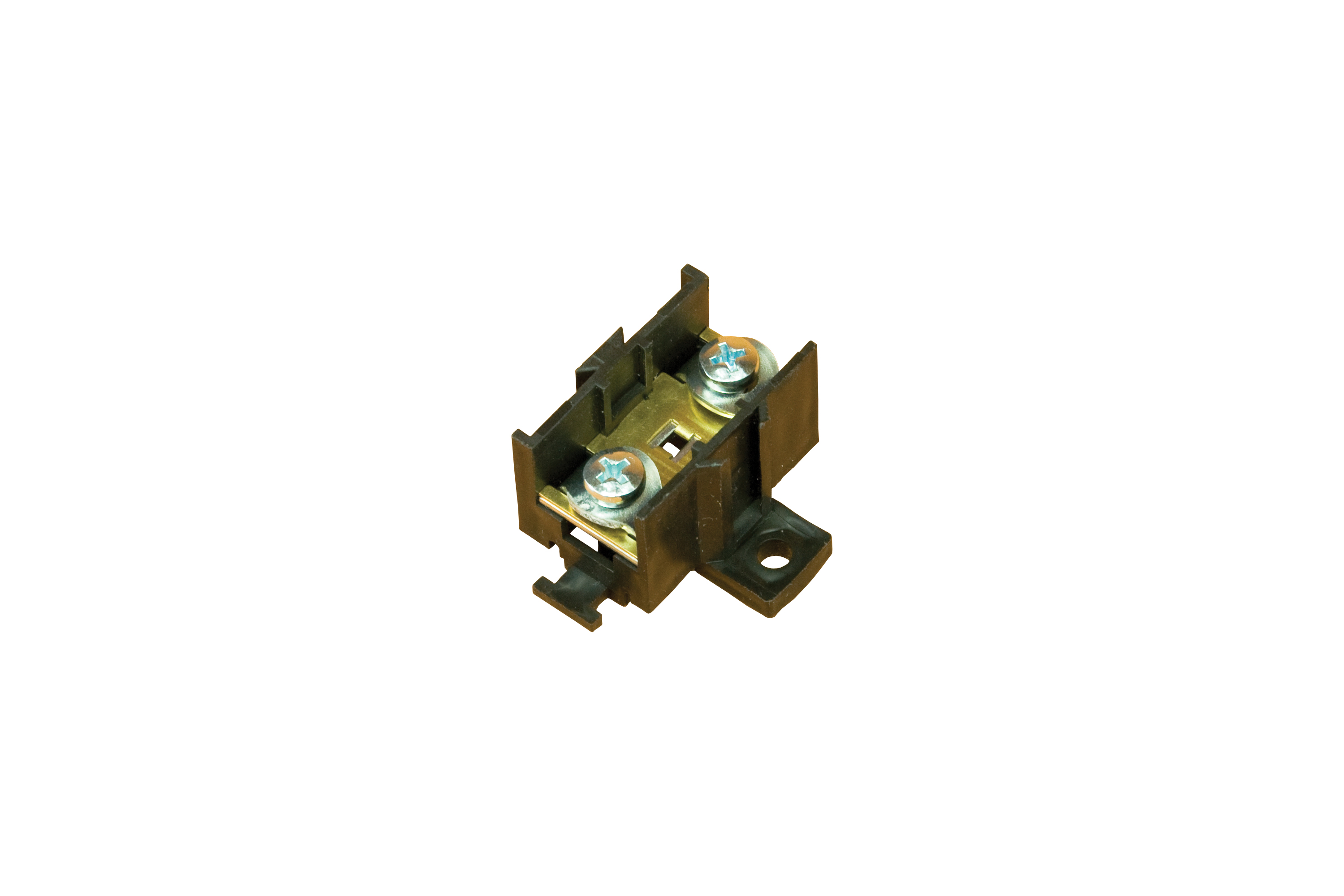

Listwa zaciskowa 1x16 mm2
Information | Value |
---|---|
Supplier | PAWBOL S.A |
Symbol | E.4071 |
GTIN(EAN) | 5907484332731 |
Price unit | piece |
Catalog price | 3,71 zł (3,02 zł + 23% VAT) |
Sale price | from 1,73 zł / szt. (1,41 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 24 g |
ETIM class: | Single- and multi-pole terminal strip |
Drill hole distance centrically: | 0 mm |
Explosion-tested version 'Ex e': | no |
Connectable conductor cross section fine-strand without cable end sleeve: | 1 - 16 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 1 - 10 mm² |
Connectable conductor cross section solid-core: | 1 - 16 mm² |
Connectable conductor cross section multi-wired: | 1 - 10 mm² |
Rated current In: | 76 A |
Rated voltage: | 380 V |
Type of electrical connection 1: | Screw connection |
Type of electrical connection 2: | Other |
Number of poles: | 1 |
Number of clamp positions per pole: | 2 |
Mounting method: | DIN rail (top hat rail) 35 mm |
Material insulation body: | Thermoplastic |
Operating temperature: | -30 - 80 °C |
Inflammability class of insulation material according to with UL94: | Other |
Closing plate required: | no |
Colour: | Black |
Transparent: | no |
Halogen free: | no |
Width: | 25.5 mm |
Height: | 29 mm |
Depth: | 29 mm |
buy at the outlet / on sale
Wholesaler / branch / Address
Distance
Available
Price
Actions
ELE-COMP
Rzeszów, ul. Podkarpacka 61
Rzeszów, ul. Podkarpacka 61
Distance:
13 sztuk
1,73 zł/szt.
Buy online
Buy / order
Wholesaler
Address
Distance
Available
Actions
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Limanowa,
ul. Tarnowska 9D
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Additional information:
Information | Value |
---|---|
Updated: | 2024-10-03 10:54:09 |
Files to download: |
