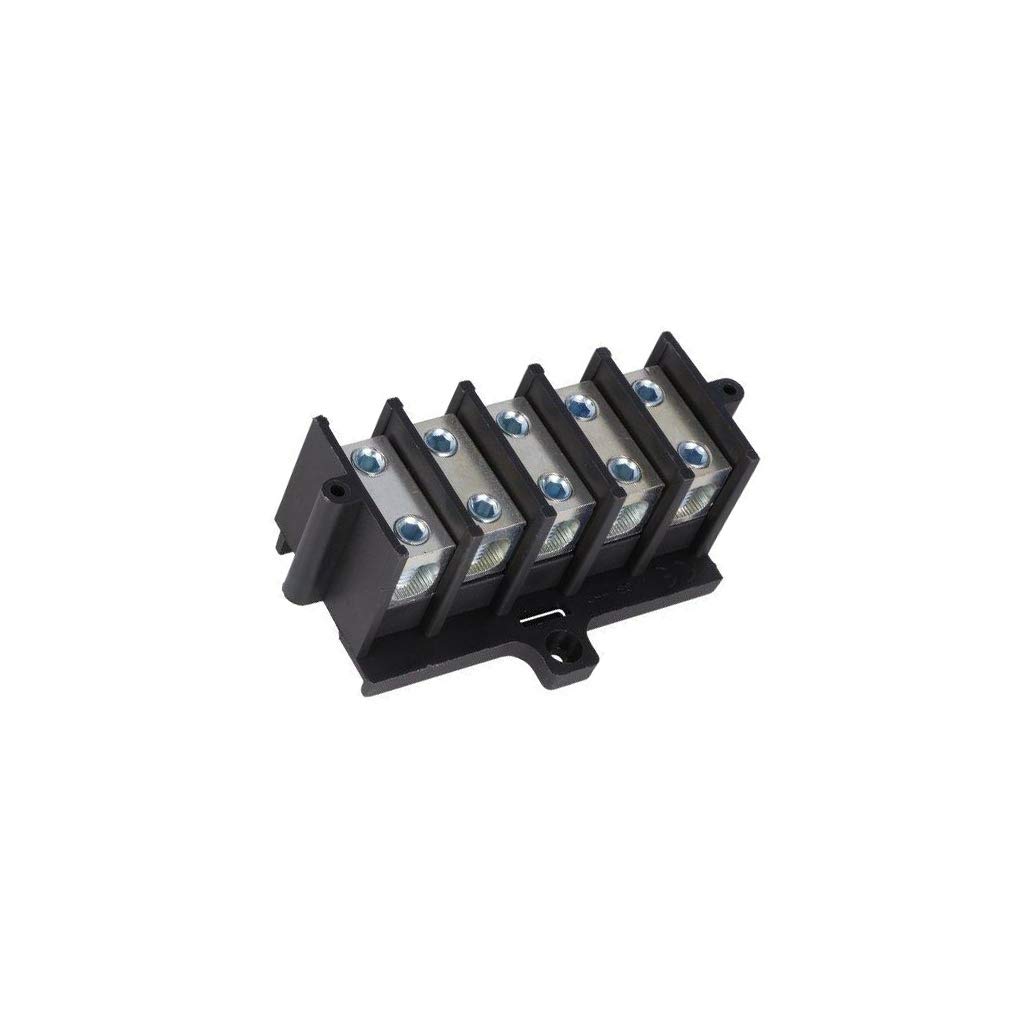

Listwa zaciskowa 5x35 mm2 150A
| Information | Value |
|---|---|
| Supplier | PAWBOL S.A |
| Symbol | E.4009A |
| GTIN(EAN) | 5901350825815 |
| Price unit | piece |
| Catalog price | 34,66 zł (28,18 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 130 g |
| ETIM class: | Single- and multi-pole terminal strip |
| Drill hole distance centrically: | 14 mm |
| Explosion-tested version 'Ex e': | no |
| Connectable conductor cross section fine-strand without cable end sleeve: | 1 - 35 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 1 - 25 mm² |
| Connectable conductor cross section solid-core: | 1 - 35 mm² |
| Connectable conductor cross section multi-wired: | 1 - 25 mm² |
| Rated current In: | 150 A |
| Rated voltage: | 500 V |
| Type of electrical connection 1: | Screw connection |
| Type of electrical connection 2: | Other |
| Number of poles: | 5 |
| Number of clamp positions per pole: | 2 |
| Mounting method: | DIN rail (top hat rail)/G-rail TH35/G32 |
| Material insulation body: | Thermoplastic |
| Operating temperature: | -30 - 80 °C |
| Inflammability class of insulation material according to with UL94: | Other |
| Halogen free: | no |
| Width: | 38 mm |
| Height: | 65 mm |
| Depth: | 65 mm |
| Closing plate required: | no |
| Colour: | Black |
| Transparent: | no |
