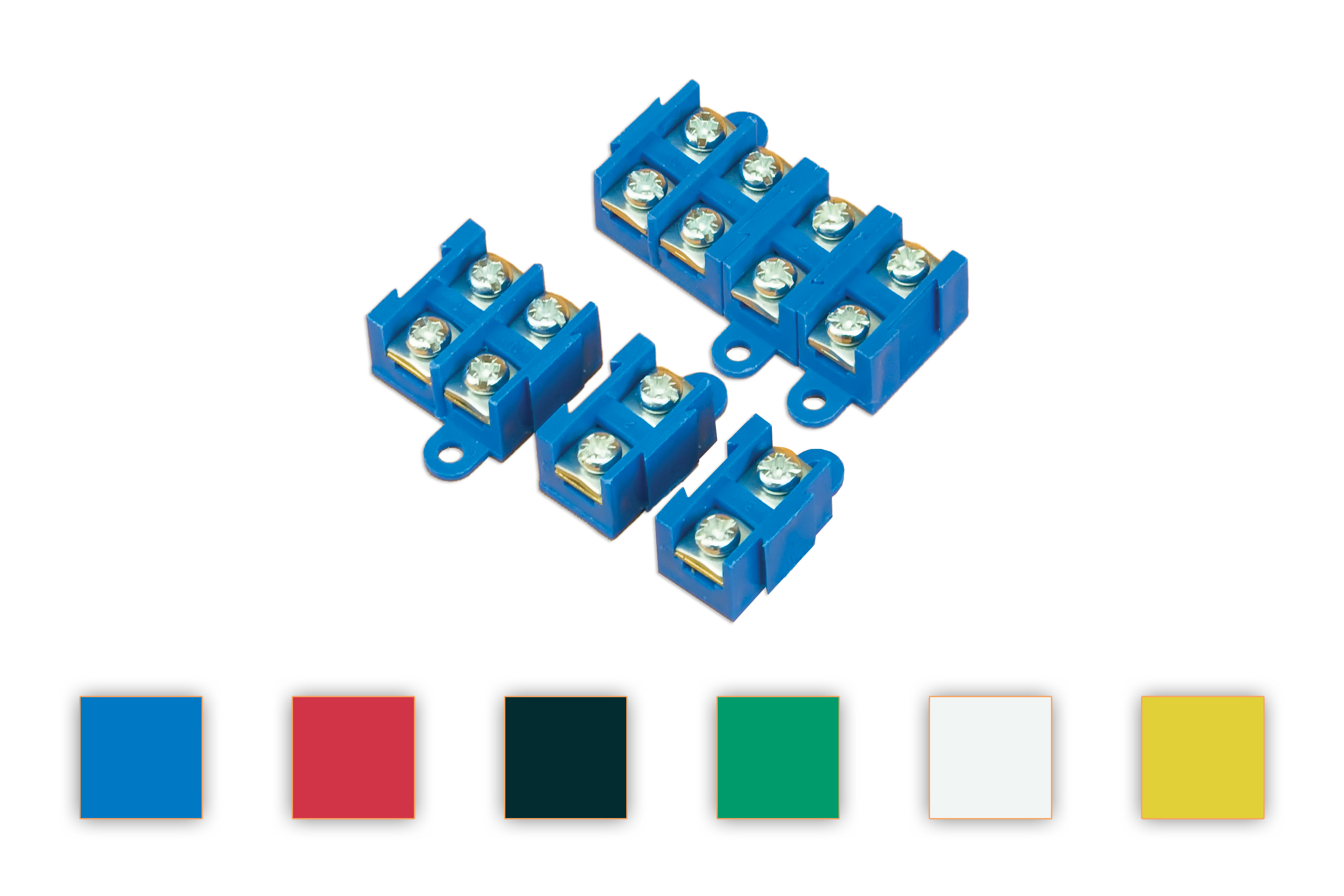

Listwa zaciskowa 4x4 mm2
| Information | Value |
|---|---|
| Supplier | PAWBOL S.A |
| Symbol | E.4002 |
| GTIN(EAN) | 5907484332625 |
| Price unit | piece |
| Catalog price | 4,05 zł (3,29 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 31 g |
| ETIM class: | Single- and multi-pole terminal strip |
| Drill hole distance centrically: | 10 mm |
| Explosion-tested version 'Ex e': | no |
| Connectable conductor cross section fine-strand without cable end sleeve: | 1.5 - 4 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve: | 1.5 - 2.5 mm² |
| Connectable conductor cross section solid-core: | 1.5 - 4 mm² |
| Connectable conductor cross section multi-wired: | 1.5 - 4 mm² |
| Rated current In: | 32 A |
| Rated voltage: | 400 V |
| Type of electrical connection 1: | Screw connection |
| Type of electrical connection 2: | Other |
| Number of poles: | 4 |
| Number of clamp positions per pole: | 2 |
| Mounting method: | Other |
| Material insulation body: | Thermoplastic |
| Operating temperature: | -30 - 80 °C |
| Inflammability class of insulation material according to with UL94: | Other |
| Closing plate required: | no |
| Colour: | Other |
| Transparent: | no |
| Halogen free: | no |
| Width: | 31 mm |
| Height: | 15 mm |
| Depth: | 15 mm |
Buy online
Buy / order
Wholesaler
Address
Distance
Available
Actions
Kwidzyn,
Toruńska 34
Distance:
Dostępność:
85 pc
Łódź,
Kolumny 205
Distance:
Dostępność:
100 pc
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Szaflary,
ul. Zakopiańska 18
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Additional information:
| Information | Value |
|---|---|
| Updated: | 2024-10-03 10:54:09 |
| Files to download: |
