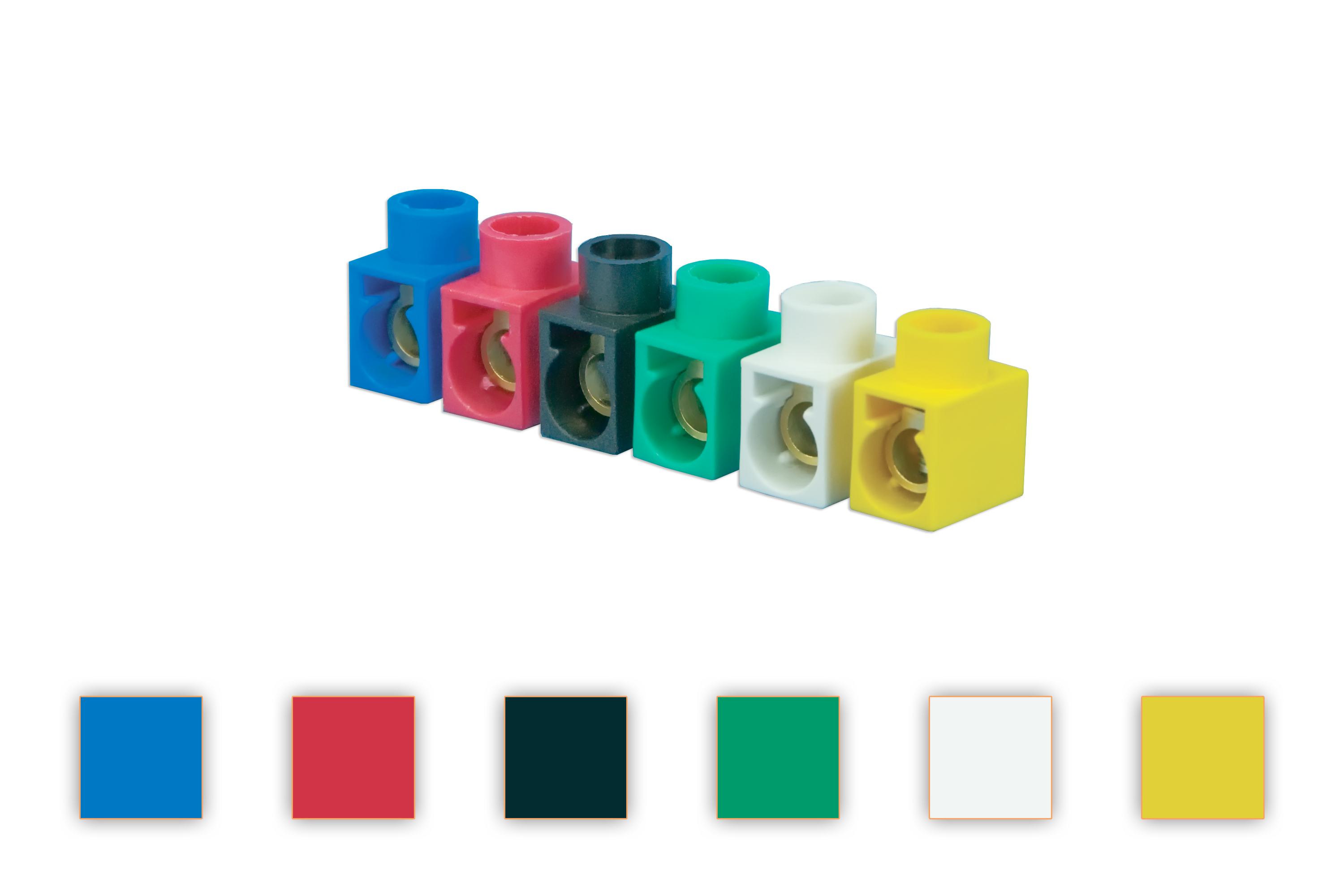

Listwa zaciskowa 2,5 mm2 / 400V
Information | Value |
---|---|
Supplier | PAWBOL S.A |
Symbol | E.4001 |
GTIN(EAN) | 5907484332618 |
Price unit | piece |
Catalog price | 0,90 zł (0,73 zł + 23% VAT) |
Sale price | from 0,33 zł / szt. (0,27 zł + 23 % VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 4 g |
ETIM class: | Single- and multi-pole terminal strip |
Drill hole distance centrically: | 0 mm |
Explosion-tested version 'Ex e': | no |
Connectable conductor cross section fine-strand without cable end sleeve: | 1 - 2.5 mm² |
Connectable conductor cross section fine-strand with cable end sleeve: | 1 - 1.5 mm² |
Connectable conductor cross section solid-core: | 1 - 2.5 mm² |
Connectable conductor cross section multi-wired: | 1 - 2.5 mm² |
Rated current In: | 32 A |
Rated voltage: | 400 V |
Type of electrical connection 1: | Screw connection |
Type of electrical connection 2: | Other |
Number of poles: | 1 |
Number of clamp positions per pole: | 1 |
Mounting method: | Other |
Material insulation body: | Thermoplastic |
Operating temperature: | -30 - 80 °C |
Inflammability class of insulation material according to with UL94: | Other |
Closing plate required: | no |
Colour: | Other |
Transparent: | no |
Halogen free: | no |
Width: | 11 mm |
Height: | 20 mm |
Depth: | 20 mm |
buy at the outlet / on sale
Wholesaler / branch / Address
Distance
Available
Price
Actions
Karel 2 Bielsko-Biała
Bielsko-Biała, Katowicka 180
Bielsko-Biała, Katowicka 180
Distance:
2 sztuki
0,33 zł/szt.
Buy online
Buy / order
Wholesaler
Address
Distance
Available
Actions
Wieluń,
Traugutta 43
Distance:
Dostępność:
192 pc
Kwidzyn,
Toruńska 34
Distance:
Dostępność:
48 pc
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Gniezno,
ul. Słoneczna 40a
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Limanowa,
ul. Tarnowska 9D
Distance:
Additional information:
Information | Value |
---|---|
Updated: | 2024-10-03 10:54:06 |
Files to download: |
