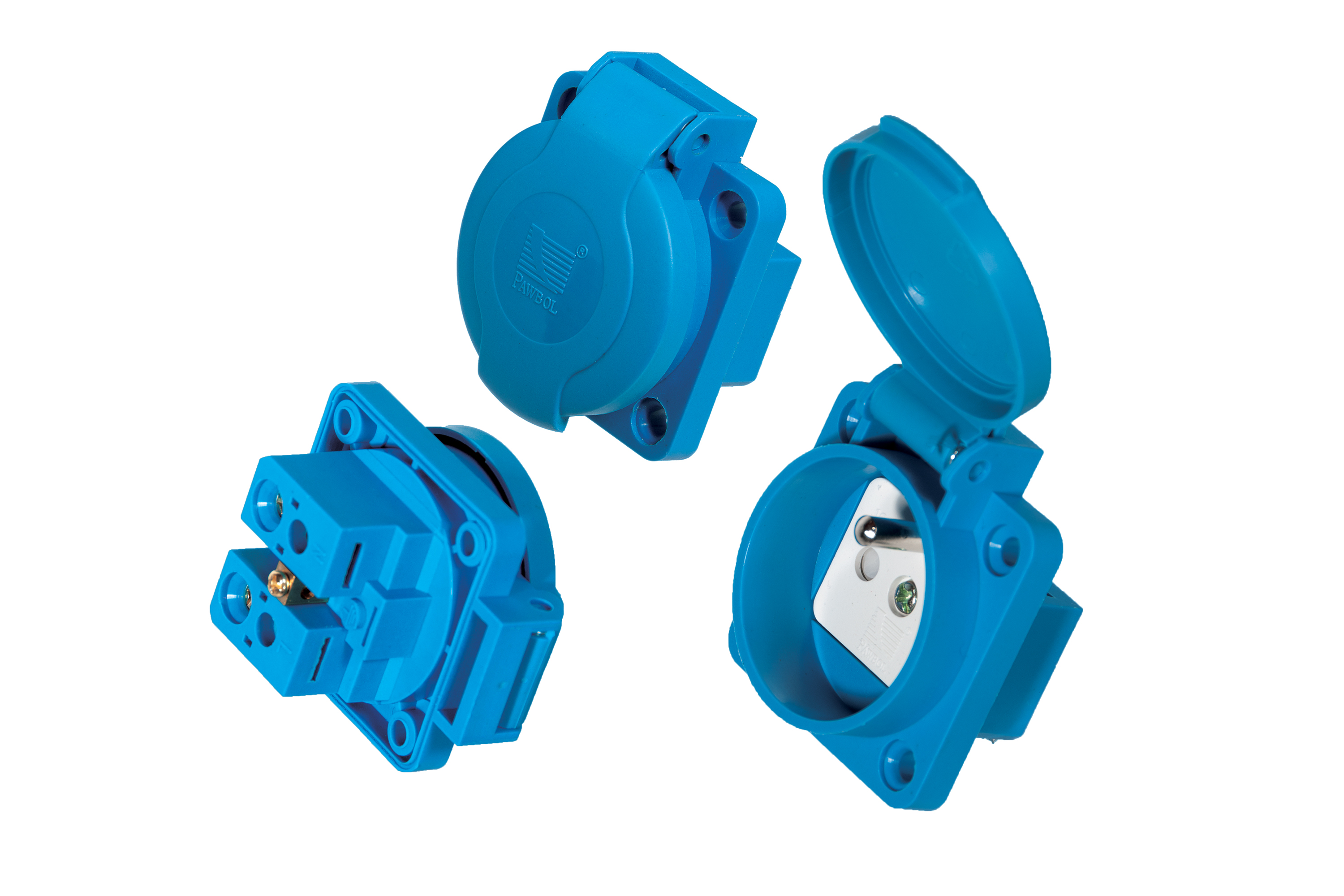

Gniazdo wtyczkowe z uziemieniem VZ – 16A (250V)
| Information | Value |
|---|---|
| Supplier | PAWBOL S.A |
| Symbol | D.3153 |
| GTIN(EAN) | 5907484332335 |
| Price unit | piece |
| Catalog price | 10,90 zł (8,86 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| kolor: | niebieski |
| Net weight: | 40 g |
| Country of origin | Polska |
| ETIM class: | Panel-mounted CEE socket outlet (IEC 60309) |
| IEC-amperage: | 16 A |
| Amperage according to UL/CSA (for UL-version): | 16 A |
| Voltage according to EN 60309-2: | 230 V (50+60 Hz) blue |
| Rated frequency: | 50 - 60 Hz |
| Number of poles: | 3 |
| Clock hour position: | 12 h |
| Identification colour: | Blue |
| RAL-number: | 5005 |
| Degree of protection (IP): | IP54 |
| Connection system: | Screwed terminal |
| Insert direction: | Straight |
| Material: | Plastic |
| Military model: | no |
| Flange size vertical: | 60 mm |
| Drill hole distance vertical: | 38.1 mm |
| Flange size horizontal: | 50 mm |
| Drill hole distance horizontal: | 38.1 mm |
| Rated voltage: | 250 - 250 V |
| Contact material: | CuZn |
| Surface treatment contacts: | Untreated |
Buy online
Buy / order
Wholesaler
Address
Distance
Available
Actions
Kwidzyn,
Toruńska 34
Distance:
Dostępność:
21 pc
Piaseczno,
Jana Pawła II 62
Distance:
Dostępność:
16 pc
Wieluń,
Traugutta 43
Distance:
Dostępność:
16 pc
Łódź,
Kolumny 205
Distance:
Dostępność:
66 pc
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Szaflary,
ul. Zakopiańska 18
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Additional information:
| Information | Value |
|---|---|
| Manufacturer or importer or entity responsible in EU |
PAWBOL S.A
Władysława Grabskiego 29, 32-640 Zator, Polska
tel: 338701206 mail: firma@pawbol.pl
www: pawbol.com.pl
|
| Updated: | 2024-12-11 09:21:59 |
| Files to download: |
