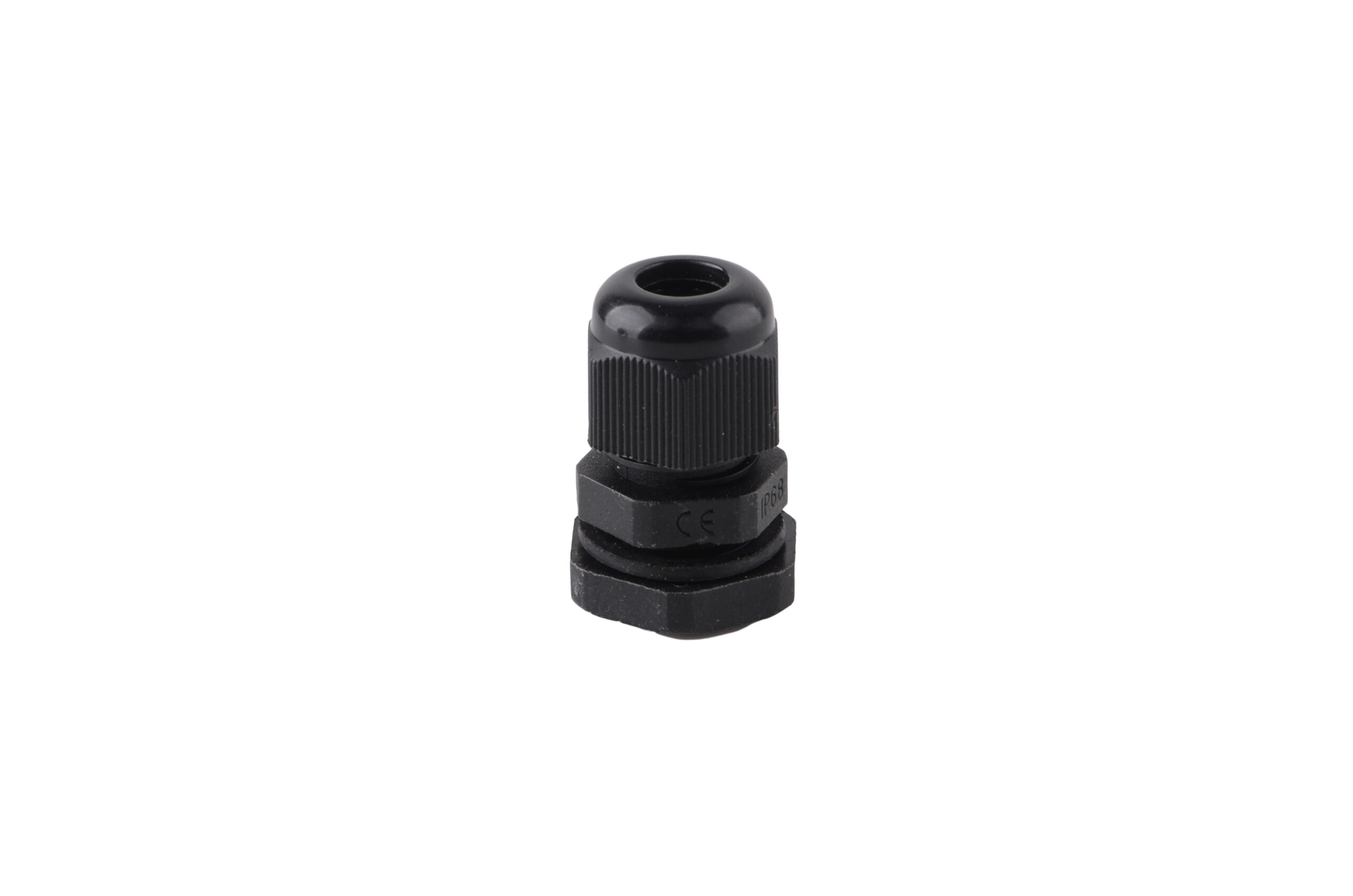

Dławica izolacyjna niepalna PG-9, czarna 50
| Information | Value |
|---|---|
| Supplier | PAWBOL S.A |
| Symbol | D.3071C |
| GTIN(EAN) | 5908793101001 |
| Price unit | piece |
| Catalog price | 1,34 zł (1,09 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 7 g |
| ETIM class: | Cable gland |
| Thread type: | PG |
| Nominal thread size metric/PG: | 9 |
| Nominal thread size inch/gas pipe thread: | Other |
| Pitch thread: | 1.5 mm |
| Thread length: | 9.5 mm |
| Wrench width: | 18 mm |
| Hexagon angular dimension: | 22 mm |
| Suitable for cable diameter: | 4 - 8 mm |
| Material: | Plastic |
| Material quality: | Polyamide (PA) |
| Surface protection: | Other |
| Halogen free: | yes |
| Glass-fibre reinforced: | no |
| Degree of protection (IP): | IP68 |
| Shock resistant: | yes |
| Colour: | Black |
| RAL-number: | 9005 |
| Bend radius protection/trumpet flare: | yes |
| With locknut: | yes |
| Snapping in opening: | no |
| Model: | Straight |
| Multi seal area: | no |
| Flat cable coupling: | no |
| With strain relief: | no |
| Type of sealing: | Cut-out ring |
| Separable screw gland: | yes |
| Operating temperature: | -20 - 80 °C |
| Explosion-tested version: | no |
| For Ex-zone gas: | None |
| For Ex-Zone dust: | None |
| For armoured cable: | yes |
| EMC-version: | no |
| Screened: | no |
| Pressure-compensating: | no |
