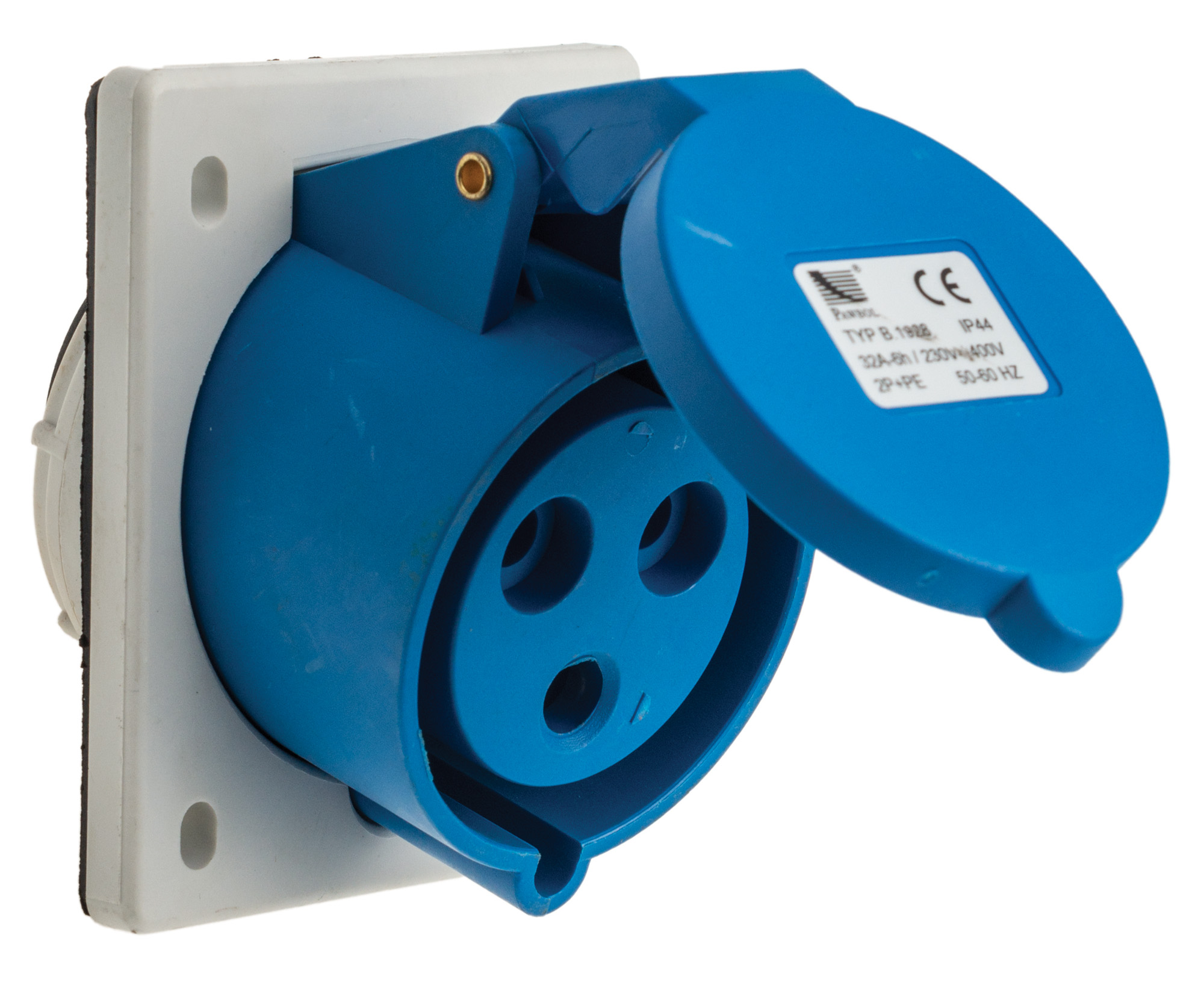

Gniazdo tablicowe 32A 3p
| Information | Value |
|---|---|
| Supplier | PAWBOL S.A |
| Symbol | B.1928 |
| GTIN(EAN) | 5901350831083 |
| Price unit | piece |
| Catalog price | 48,06 zł (39,07 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 220 g |
| Country of origin | Polska |
| ETIM class: | Panel-mounted CEE socket outlet (IEC 60309) |
| IEC-amperage: | 32 A |
| Amperage according to UL/CSA (for UL-version): | 32 A |
| Voltage according to EN 60309-2: | 230 V (50+60 Hz) blue |
| Rated frequency: | 50 - 60 Hz |
| Number of poles: | 3 |
| Clock hour position: | 6 h |
| Identification colour: | Blue |
| Degree of protection (IP): | IP44 |
| Connection system: | Screwed terminal |
| Insert direction: | Angled |
| Material: | Plastic |
| Military model: | no |
| Flange size vertical: | 98 mm |
| Drill hole distance vertical: | 73 mm |
| Flange size horizontal: | 80 mm |
| Drill hole distance horizontal: | 60 mm |
| Rated voltage: | 400 - 400 V |
| RAL-number: | 3020 |
| Contact material: | CuZn |
| Surface treatment contacts: | Untreated |
