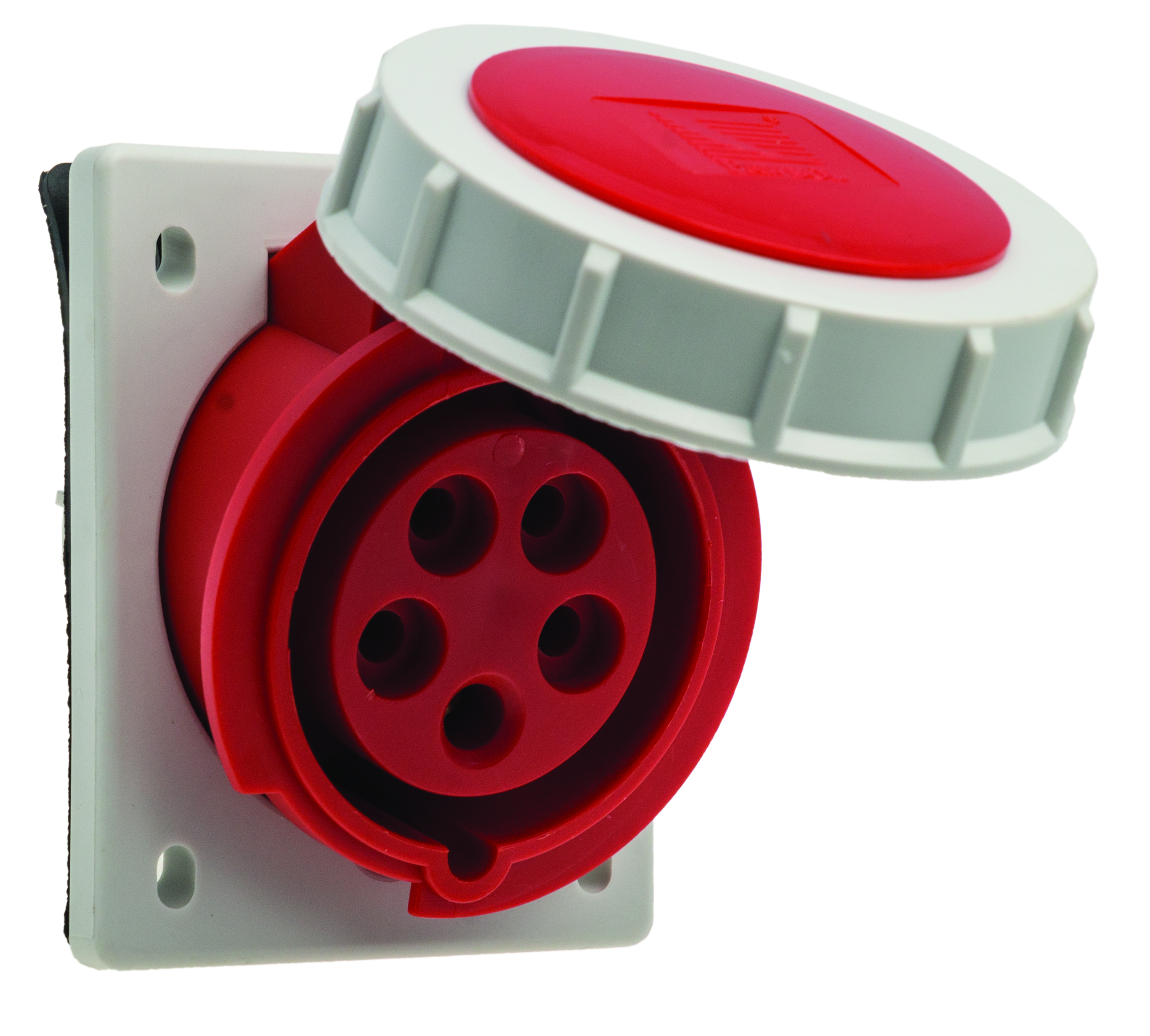

Gniazdo tablicowe 16A 5P IP67
| Information | Value |
|---|---|
| Supplier | PAWBOL S.A |
| Symbol | B.1905 |
| GTIN(EAN) | 5901350831045 |
| Price unit | piece |
| Catalog price | 54,37 zł (44,20 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 228 g |
| Country of origin | Polska |
| ETIM class: | Panel-mounted CEE socket outlet (IEC 60309) |
| IEC-amperage: | 16 A |
| Amperage according to UL/CSA (for UL-version): | 16 A |
| Voltage according to EN 60309-2: | 400 V (50+60 Hz) red |
| Rated frequency: | 50 - 60 Hz |
| Number of poles: | 5 |
| Clock hour position: | 6 h |
| Identification colour: | Red |
| Degree of protection (IP): | IP67 |
| Connection system: | Screwed terminal |
| Insert direction: | Angled |
| Material: | Plastic |
| Military model: | no |
| Flange size vertical: | 98 mm |
| Drill hole distance vertical: | 73 mm |
| Flange size horizontal: | 80 mm |
| Drill hole distance horizontal: | 60 mm |
| Rated voltage: | 400 - 400 V |
| RAL-number: | 3020 |
| Contact material: | CuZn |
| Surface treatment contacts: | Untreated |
Buy online
Buy / order
Wholesaler
Address
Distance
Available
Actions
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Limanowa,
ul. Tarnowska 9D
Distance:
Szaflary,
ul. Zakopiańska 18
Distance:
Gniezno,
ul. Słoneczna 40a
Distance:
Additional information:
| Information | Value |
|---|---|
| Manufacturer or importer or entity responsible in EU |
PAWBOL S.A
Władysława Grabskiego 29, 32-640 Zator, Polska
tel: 338701206 mail: firma@pawbol.pl
www: pawbol.com.pl
|
| Updated: | 2024-12-11 09:30:11 |
| Files to download: |
