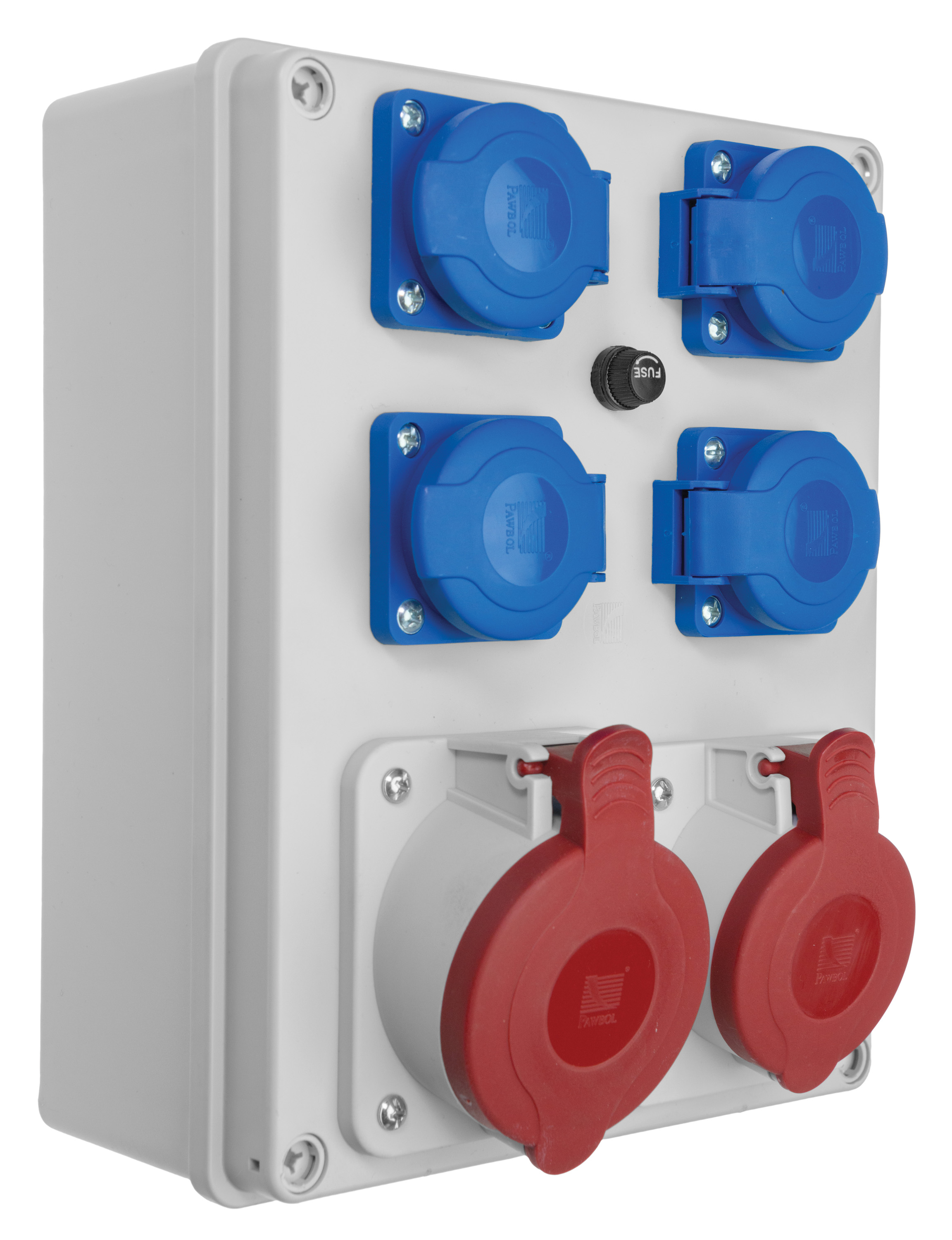

Rozdzielnica R-BOX 240, 1x32A/5p, 1x16A/5p, 4x250V
| Information | Value |
|---|---|
| Supplier | PAWBOL S.A |
| Symbol | B.1100-02 |
| GTIN(EAN) | 5905793081494 |
| Price unit | piece |
| Catalog price | 213,60 zł (173,66 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 1,521 kg |
| ETIM class: | Energy distributor for construction site |
| Model: | Distributor cabinet |
| Rated voltage: | 230/400 V |
| Rated current: | 63 A |
| Connected load: | 22.5 kVA |
| Number of CEE socket outlets (IEC 60309) 16 A / 24 V / 2P (L, N): | 0 |
| Number of CEE socket outlets (IEC 60309) 16 A / 230 V / 3P (L, N, PE): | 0 |
| Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 4P (1, 2, 3, PE): | 0 |
| Number of CEE socket outlets (IEC 60309) 16 A / 400 V / 5P (1, 2, 3, N, PE): | 1 |
| Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 4P (1, 2, 3, PE): | 0 |
| Number of CEE socket outlets (IEC 60309) 32 A / 400 V / 5P (1, 2, 3, N, PE): | 1 |
| Number of CEE socket outlets (IEC 60309) 63 A / 400 V / 5P (1, 2, 3, N, PE): | 0 |
| Number of CEE socket outlets (IEC 60309) 125A / 400 V / 5P (1, 2, 3, N, PE): | 0 |
| Number of socket outlets with protective contact CEE 7/3 (type F): | 4 |
| Number of socket outlets Swiss standard type 13: | 0 |
| Number of socket outlets Swiss standard type 15: | 0 |
| Number of socket outlets Swiss standard type 23: | 0 |
| Number of socket outlets Swiss standard type 25: | 0 |
| Number of meter panels: | 0 |
| Main switch: | Other |
| Main switch rated current: | 0 A |
| Number of poles main switch: | 0 |
| Number of miniature circuit breakers (MCB): | 0 |
| Number of earth leakage switches 10 mA: | 0 |
| Number of earth leakage switches 30 mA: | 0 |
| Number of earth leakage switches 300 mA: | 0 |
| Degree of protection (IP): | IP44 |
| Housing material: | Plastic |
| Width: | 200 mm |
| Height: | 250 mm |
| Depth: | 150 mm |
| Number of CEE socket outlets (IEC 60309) 16 A / 230 V / 5P (1, 2, 3, N, PE): | 0 |
| Number of CEE socket outlets (IEC 60309) 32 A / 230 V / 4P (1, 2, 3, PE): | 0 |
| Number of CEE socket outlets (IEC 60309) 63 A / 230 V / 4P (1, 2, 3, PE): | 0 |
| Number of CEE socket outlets (IEC 60309) 125 A / 230 V / 4P (1, 2, 3, PE): | 0 |
| Leakage current type: | Other |
| Number of earth leakage switches 100 mA: | 0 |
| Emergency stop button: | no |
| Suitable according to IEC/EN 61439-4: | yes |
