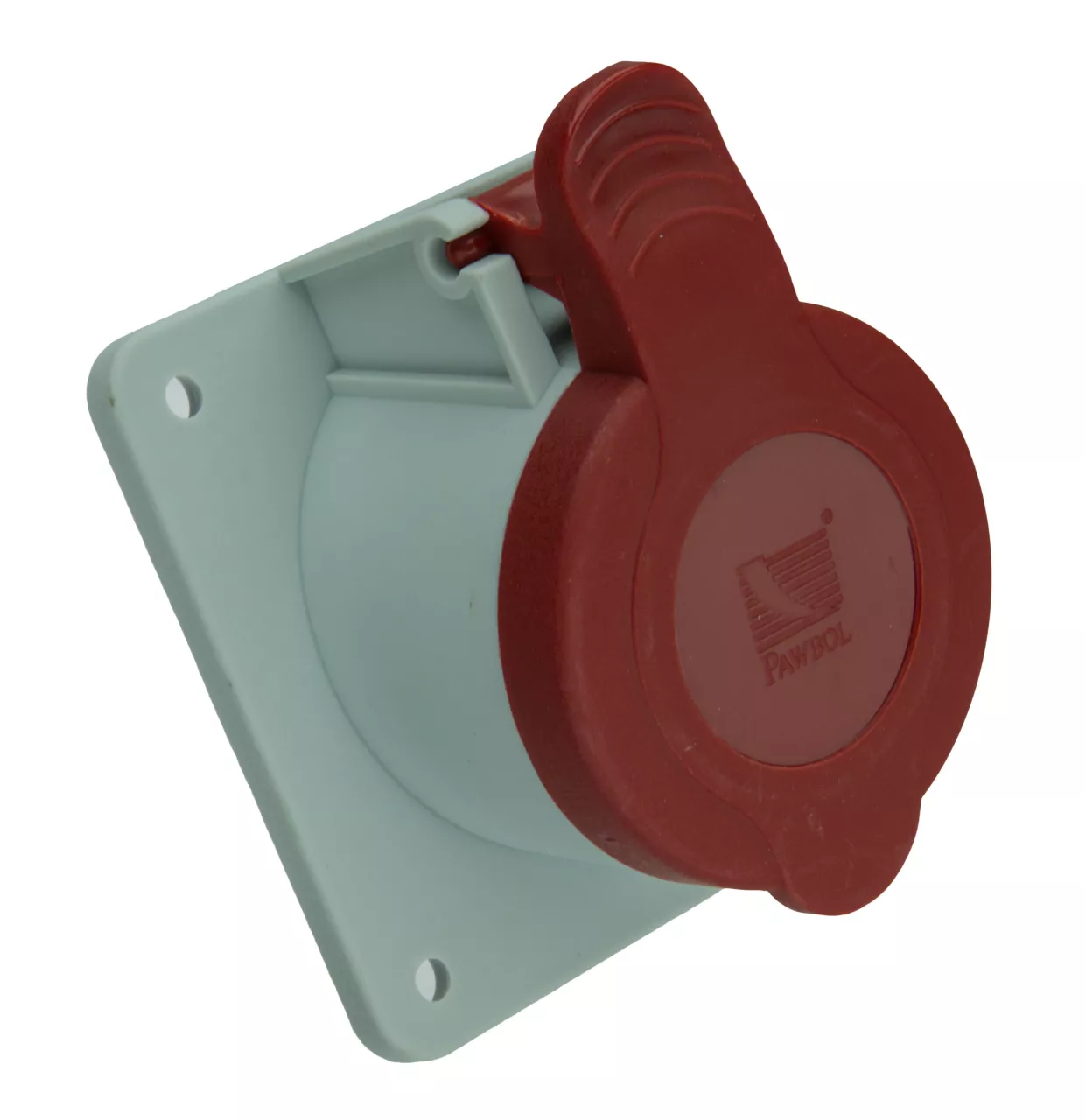

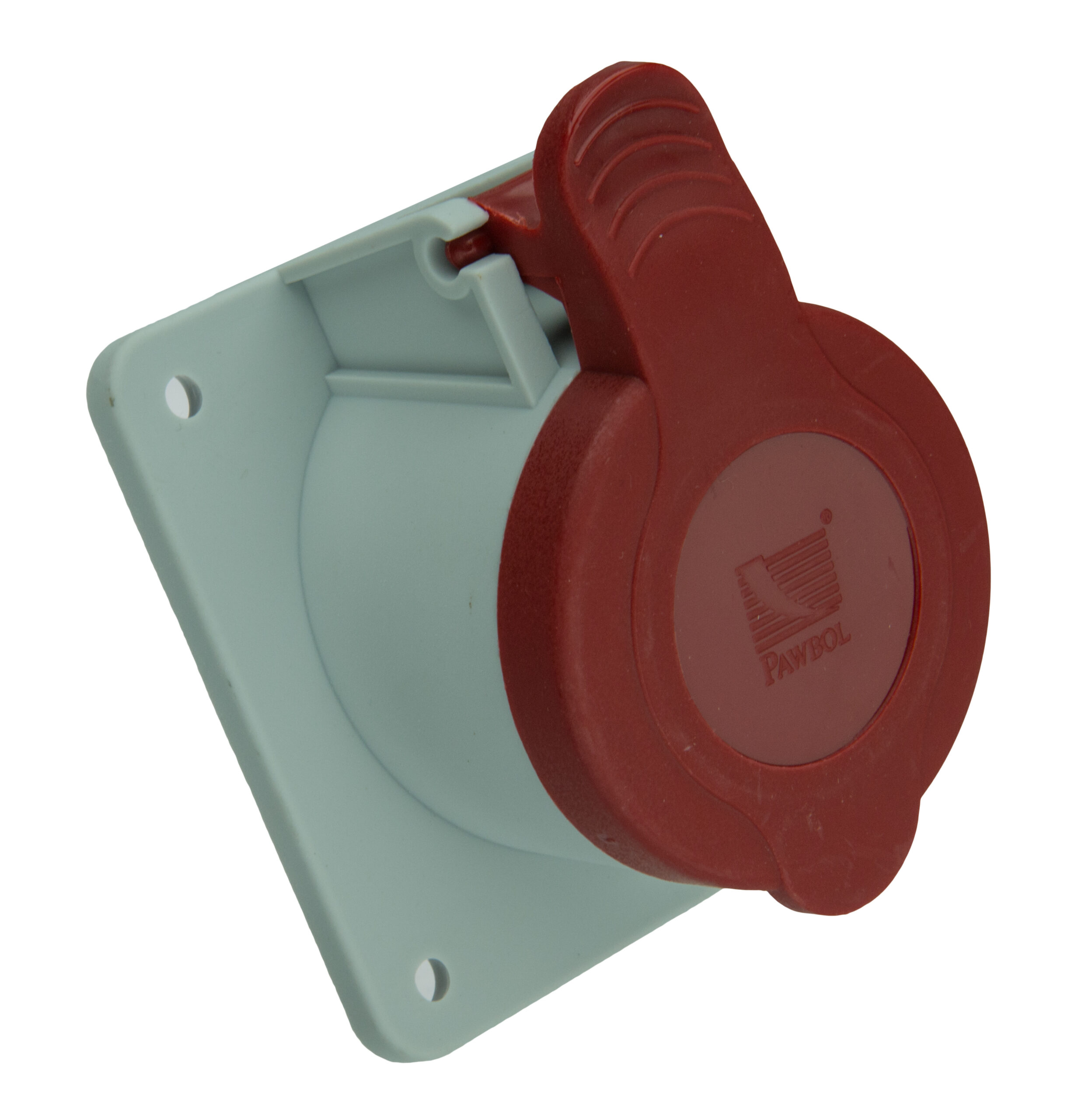

Gniazdo tablicowe 16A 4p
Information | Value |
---|---|
Supplier | PAWBOL S.A |
Symbol | B.1055 |
GTIN(EAN) | 5907484336234 |
Price unit | piece |
Catalog price | 21,25 zł (17,28 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
Information | Value |
---|---|
Net weight: | 127 g |
ETIM class: | Panel-mounted CEE socket outlet (IEC 60309) |
IEC-amperage: | 16 A |
Amperage according to UL/CSA (for UL-version): | 16 A |
Voltage according to EN 60309-2: | 400 V (50+60 Hz) red |
Rated frequency: | 50 - 60 Hz |
Number of poles: | 4 |
Clock hour position: | 6 h |
Identification colour: | Red |
Degree of protection (IP): | IP54 |
Connection system: | Screwed terminal |
Insert direction: | Angled |
Material: | Plastic |
Military model: | no |
Flange size vertical: | 85 mm |
Drill hole distance vertical: | 60 mm |
Flange size horizontal: | 75 mm |
Drill hole distance horizontal: | 60 mm |
Rated voltage: | 400 - 400 V |
RAL-number: | 3020 |
Contact material: | CuZn |
Surface treatment contacts: | Untreated |
