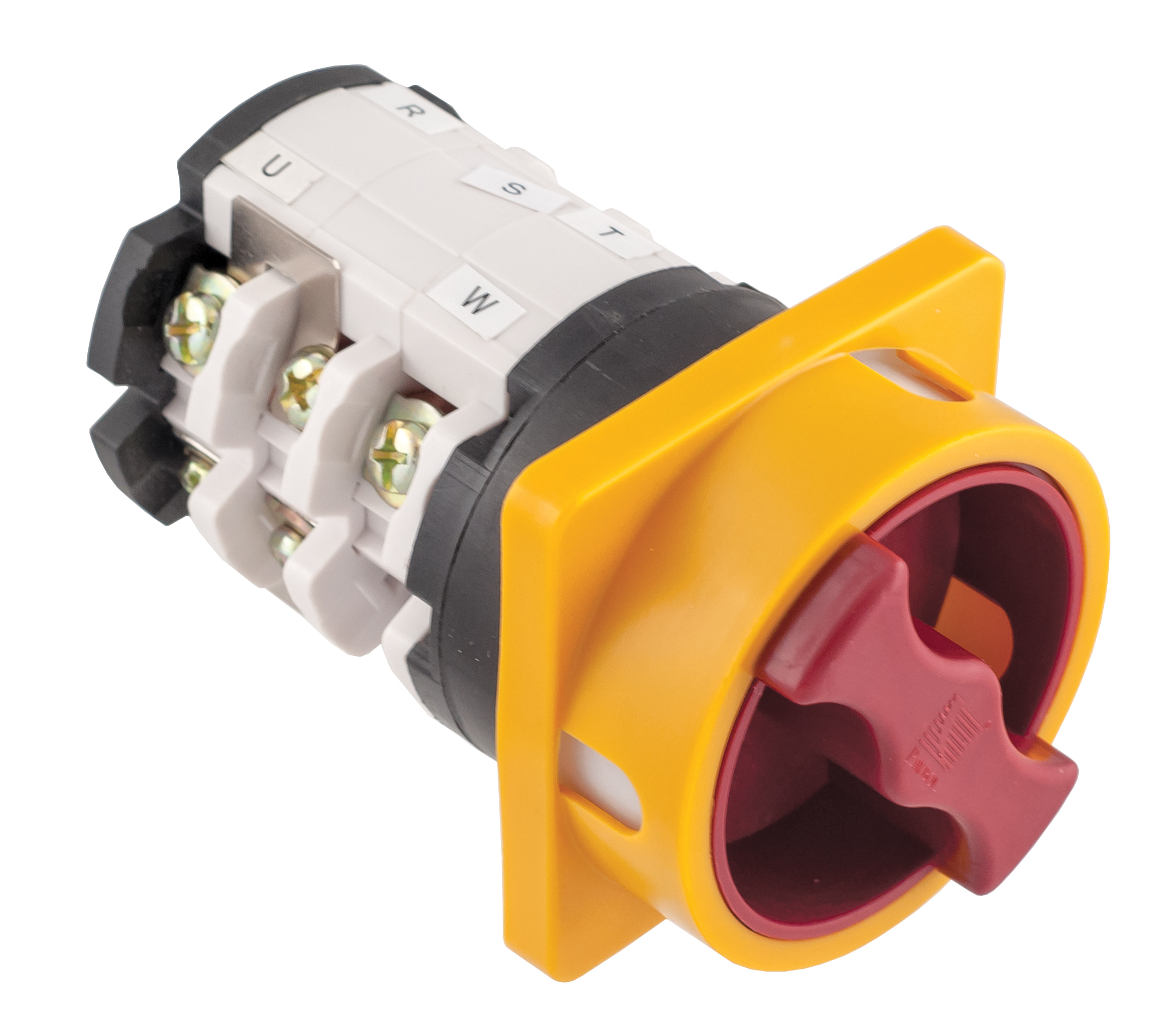

Przełącznik L-O-P 25A
| Information | Value |
|---|---|
| Supplier | PAWBOL S.A |
| Symbol | B.1020-25 |
| GTIN(EAN) | 5901350813027 |
| Price unit | piece |
| Catalog price | 70,12 zł (57,01 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Additional features:
| Information | Value |
|---|---|
| Net weight: | 160 g |
| ETIM class: | Off-load switch |
| Model: | Reversing switch |
| Number of poles: | 6 |
| With zero (off) position: | yes |
| With retraction in 0-position: | yes |
| Rated permanent current Iu: | 25 A |
| Rated operation current Ie at AC-3, 400 V: | 25 A |
| Rated operation power at AC-3, 400 V: | 6.4 kW |
| Degree of protection (IP), front side: | IP44 |
| Degree of protection (NEMA), front side: | Other |
| Number of auxiliary contacts as normally closed contact: | 3 |
| Number of auxiliary contacts as normally open contact: | 3 |
| Number of auxiliary contacts as change-over contact: | 6 |
| Suitable for floor mounting: | yes |
| Suitable for front mounting: | yes |
| Suitable for distribution board installation: | yes |
| Suitable for intermediate mounting: | no |
| Complete device in housing: | no |
| Housing material: | Plastic |
| Type of control element: | Turn button |
| Type of electrical connection of main circuit: | Screw connection |
