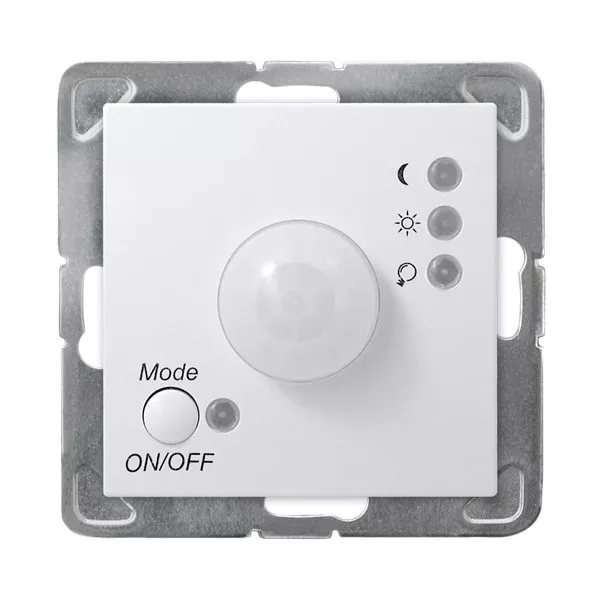

IMPRESJA Elektroniczny czujnik ruchu - kolor biały
Information | Value |
---|---|
Supplier | OSPEL S.A. |
Series | IMPRESJA |
Symbol | ŁP-16Y/m/00 |
GTIN(EAN) | 5907577437787 |
Price unit | piece |
Catalog price | 343,05 zł (278,90 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
OSPEL: Wiosenna promocja
Kup produkty marki OSPEL za minimum 1000 zł brutto i odbierz jedną z trzech nagród.
-
Promocja Ospel
Za zakup asortymentu firmy Ospel odbierz nagrodę.
Description:
Zasięg działania do 7 metrów
Additional features:
Information | Value |
---|---|
Gross weight: | 103 g |
Country of origin | Polska |
ETIM class: | Movement sensor/presence detector complete |
Model: | Movement sensor |
Sensor type: | Passive infrared |
With DALI interface: | no |
Constant light control: | no |
HVAC-control: | no |
Forced switch on: | no |
Forced switch off: | yes |
Animal zone: | no |
Creep-under protection: | no |
Networkable: | yes |
Scan angle: | 136 ° |
Optimum mounting height: | 1.4 m |
Staircase light controller: | no |
Bridging switch: | no |
Max. reach sideways: | 7 m |
Max. presence range: | 10 m² |
Max. reach frontally: | 4 m |
Diameter reach on floor: | 13 m |
Suitable for wireless transmission: | no |
Remote operation: | no |
With remote control: | no |
Response value sensitivity adjustable: | yes |
Response value luminosity adjustable: | yes |
With signal unit: | yes |
Teach-function for response value luminosity: | no |
Dim function with dimmer basic element: | no |
Mounting method: | Flush-mounted |
Suitable for ceiling mounting: | no |
Connection type: | Screwed terminal |
Material: | Plastic |
Material quality: | Thermoplastic |
Halogen free: | yes |
Surface protection: | Untreated |
Surface finishing: | Glossy |
Anti-bacterial treatment: | no |
Colour: | White |
RAL-number (similar): | 9003 |
Transparent: | no |
Degree of protection (IP): | IP20 |
Impact strength: | IK03 |
Voltage type: | AC |
Frequency: | 50 - 50 Hz |
Min. switch-on time: | 3 s |
Max. duty cycle: | 5 min |
Switch-off delay: | 0 s |
Switching-on delay: | 0 s |
Detection angle horizontal: | 0 - 136 ° |
Pivoting range sensor, horizontal: | 0 - 0 ° |
Pivoting range sensor, vertical: | 0 - 0 ° |
Response value luminosity: | 0 - 1000 lx |
Max. switching power: | 3200 W |
Suitable for C-load: | yes |
Temperature: | 5 - 45 °C |
Number of switching zones: | 1 |
Max. starting current: | 14 A |
Min. starting current: | 0 A |
Control current: | 20 mA |
Substation input: | no |
With alarm function: | no |

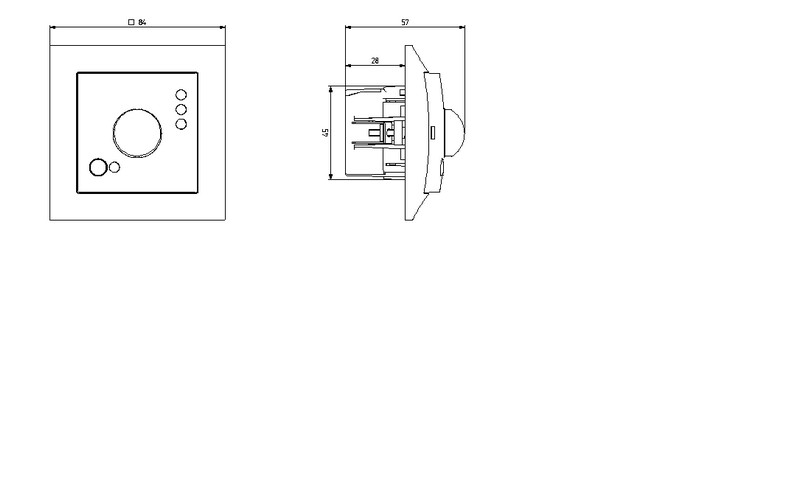

Width: | 71 mm |
Height: | 71 mm |
Depth: | 57 mm |
Built-in depth: | 28.5 mm |
Min. depth of built-in installation box: | 60 mm |
Suitable for wall mounting: | yes |
