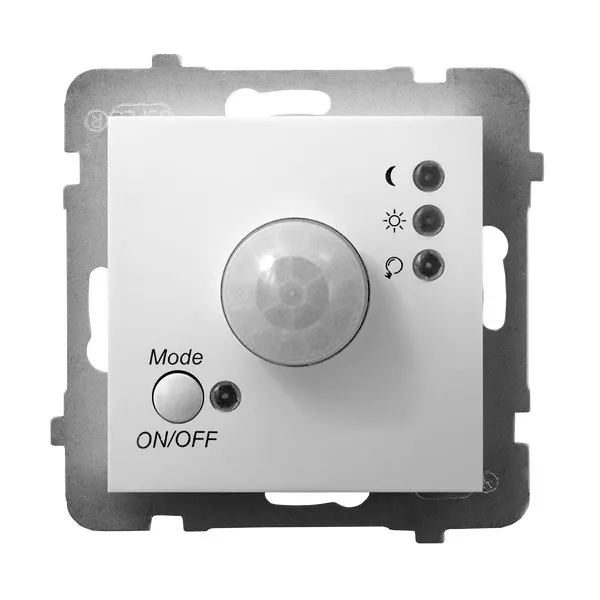

ARIA Elektroniczny czujnik ruchu - kolor biały
| Information | Value |
|---|---|
| Supplier | OSPEL S.A. |
| Series | ARIA |
| Symbol | ŁP-16U/m/00 |
| GTIN(EAN) | 5907577482749 |
| Price unit | piece |
| Catalog price | 302,72 zł (246,11 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
Zasięg działania do 7 metrów
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Movement sensor/presence detector complete |
| Model: | Movement sensor |
| Sensor type: | Passive infrared |
| With DALI interface: | no |
| Constant light control: | no |
| HVAC-control: | no |
| Forced switch on: | no |
| Forced switch off: | yes |
| Animal zone: | no |
| Creep-under protection: | no |
| Networkable: | yes |
| Scan angle: | 136 ° |
| Optimum mounting height: | 1.4 m |
| Staircase light controller: | no |
| Bridging switch: | no |
| Max. reach sideways: | 7 m |
| Max. presence range: | 10 m² |
| Max. reach frontally: | 4 m |
| Diameter reach on floor: | 13 m |
| Suitable for wireless transmission: | no |
| Remote operation: | no |
| With remote control: | no |
| Response value sensitivity adjustable: | yes |
| Response value luminosity adjustable: | yes |
| With signal unit: | yes |
| Teach-function for response value luminosity: | no |
| Dim function with dimmer basic element: | no |
| Mounting method: | Flush-mounted |
| Suitable for ceiling mounting: | no |
| Connection type: | Screwed terminal |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Halogen free: | yes |
| Surface protection: | Untreated |
| Surface finishing: | Glossy |
| Anti-bacterial treatment: | no |
| Colour: | White |
| RAL-number (similar): | 9003 |
| Transparent: | no |
| Degree of protection (IP): | IP20 |
| Impact strength: | IK03 |
| Voltage type: | AC |
| Frequency: | 50 - 50 Hz |
| Min. switch-on time: | 3 s |
| Max. duty cycle: | 5 min |
| Switch-off delay: | 0 s |
| Switching-on delay: | 0 s |
| Detection angle horizontal: | 0 - 136 ° |
| Pivoting range sensor, horizontal: | 0 - 0 ° |
| Pivoting range sensor, vertical: | 0 - 0 ° |
| Response value luminosity: | 0 - 1000 lx |
| Max. switching power: | 3200 W |
| Suitable for C-load: | yes |
| Temperature: | 5 - 45 °C |
| Number of switching zones: | 1 |
| Max. starting current: | 14 A |
| Min. starting current: | 0 A |
| Control current: | 20 mA |
| Substation input: | no |
| With alarm function: | no |
| Width: | 71 mm |
| Height: | 71 mm |
| Depth: | 59 mm |
| Built-in depth: | 28.5 mm |
| Min. depth of built-in installation box: | 60 mm |
| Suitable for wall mounting: | yes |
