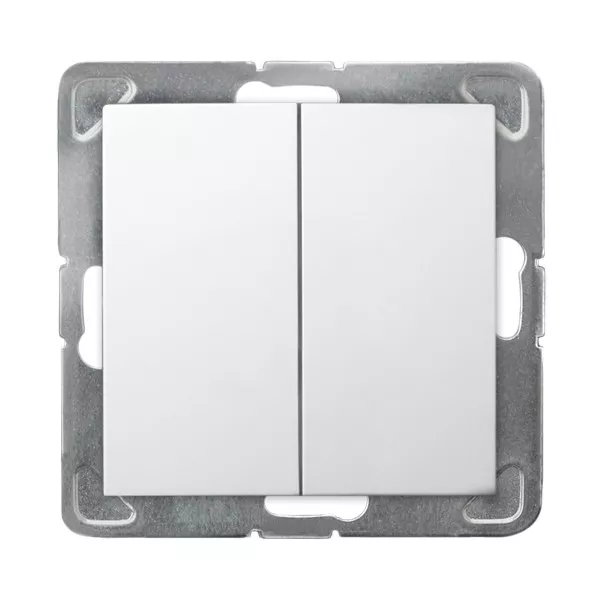

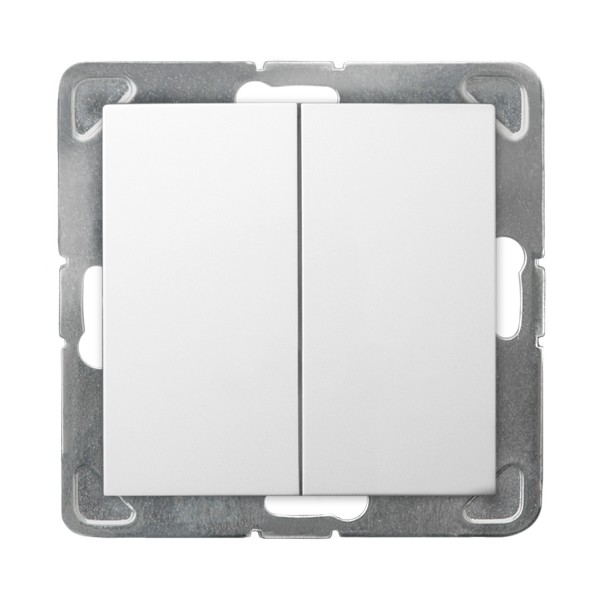

IMPRESJA Łącznik podwójny schodowy - kolor biały
| Information | Value |
|---|---|
| Supplier | OSPEL S.A. |
| Series | IMPRESJA |
| Symbol | ŁP-10Y/m/00 |
| GTIN(EAN) | 5907577436766 |
| Price unit | piece |
| Catalog price | 37,29 zł (30,32 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
16AX250~, IP-20, zaciski bezgwintowe
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 80,5 g |
| ETIM class: | Installation switch |
| Wiring system: | Alternating-/alternating switch |
| Method of operation: | Rocker/button |
| Assembly arrangement: | Basic element with complete housing |
| Number of modules (module system): | 1 |
| Push button switch: | no |
| Number of rockers: | 2 |
| Mounting method: | Flush-mounted |
| Type of fastening: | Mounting with claw and screw |
| With mounting plate: | no |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Halogen free: | yes |
| Surface protection: | Untreated |
| Surface finishing: | Glossy |
| Colour: | White |
| RAL-number (similar): | 9003 |
| Label space/information surface: | No |
| Illumination: | No |
| Function lighting: | Orientation |
| Type of lighting: | Glow lamp |
| Suitable for degree of protection (IP): | IP20 |
| Nominal voltage: | 250 V |
| Rated current: | 16 A |
| Switching current for fluorescent lamps: | 16 AX |
| Feedback-signal contact: | no |
| Connection type: | Push-in clamp |
| Washing machine switch: | no |

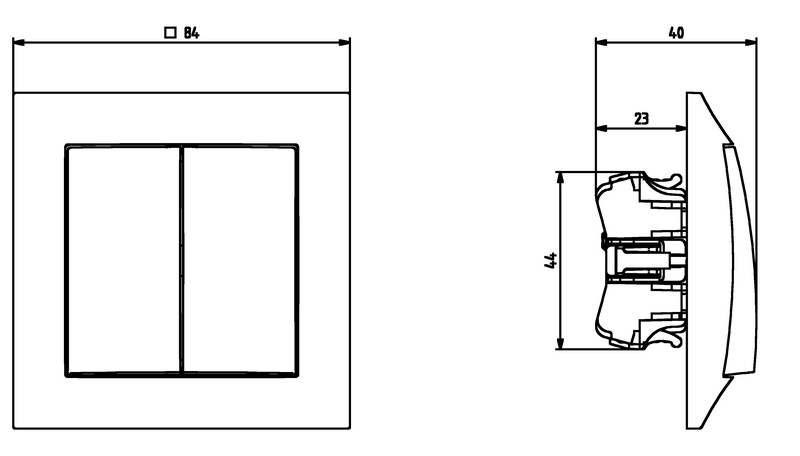

| Device width: | 71 mm |
| Device height: | 71 mm |
| Device depth: | 40 mm |
| Built-in depth: | 23 mm |
| Min. depth of built-in installation box: | 60 mm |
