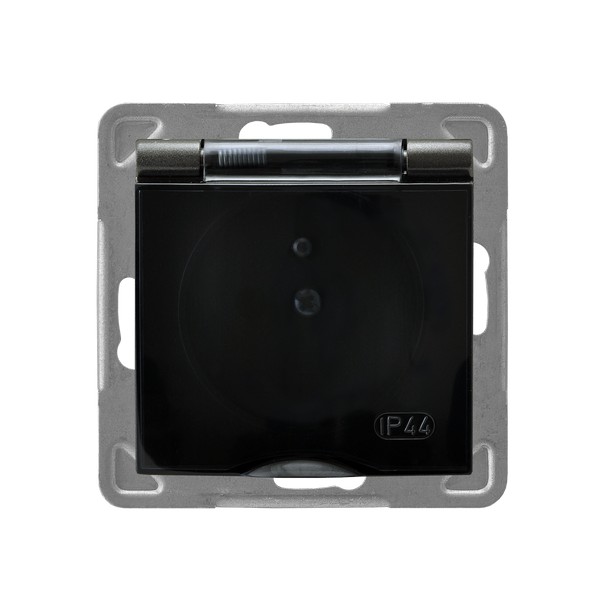

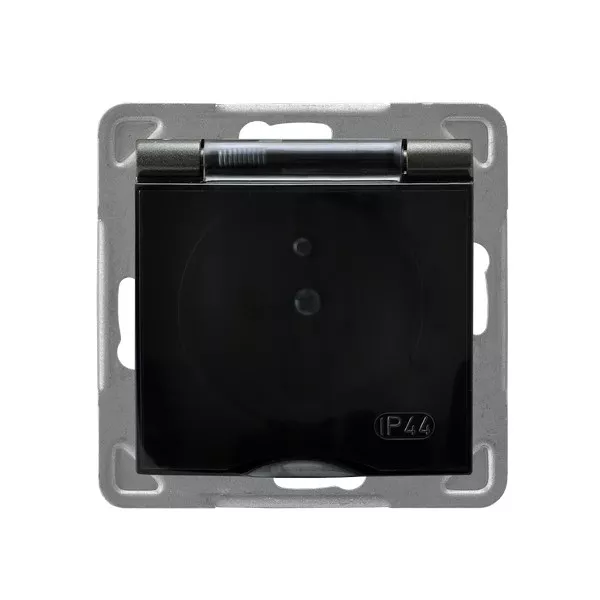

IMPRESJA Gniazdo bryzgoszczelne z uziemieniem IP-44 wieczko przezroczyste - kolor antracyt
| Information | Value |
|---|---|
| Supplier | OSPEL S.A. |
| Series | IMPRESJA |
| Symbol | GPH-1YZ/m/50/d |
| GTIN(EAN) | 5907577461737 |
| Price unit | piece |
| Catalog price | 38,93 zł (31,65 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
Description:
16A/250~, IP-44, zaciski gwintowe
Additional features:
| Information | Value |
|---|---|
| Gross weight: | 85,5 g |
| ETIM class: | Socket outlet |
| Model: | Multi-standard socket |
| Number of active contacts (round): | 1 |
| Number of active contacts (flat): | 0 |
| With signal lamp: | no |
| Number of units: | 1 |
| Number of modules (module system): | 1 |
| Number of socket outlets switchable: | 0 |
| Imprint/indication: | None |
| Connection type: | Screwed terminal |
| With hinged lid: | yes |
| With enhanced contact protection: | no |
| Label space/information surface: | no |
| Colour: | Anthracite |
| RAL-number (similar): | 7021 |
| Transparent: | yes |
| Lockable: | yes |
| Eject-mechanism: | no |
| Insulated mounting: | no |
| With function lighting: | no |
| With orientation lighting: | no |
| Over voltage protection: | no |
| Fault current protection: | no |
| With miniature fuse: | no |
| Special power supply: | No special power supply |
| Mounting method: | Flush-mounted |
| Type of fastening: | Mounting with claw and screw |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Halogen free: | yes |
| Surface protection: | Lacquered |
| Surface finishing: | Glossy |
| Anti-bacterial treatment: | no |
| With loop through function: | no |
| With on/off switch: | no |
| Rotated central insert: | no |
| Nominal current: | 16 A |
| Nominal voltage: | 250 V |
| Frequency: | 0 - 0 Hz |
| Rated fault current: | 0 mA |
| Suitable for degree of protection (IP): | IP44 |
| Impact strength: | IK03 |
| Device width: | 71 mm |
| Device height: | 71 mm |
| Device depth: | 44 mm |
| Min. depth of built-in installation box: | 60 mm |
