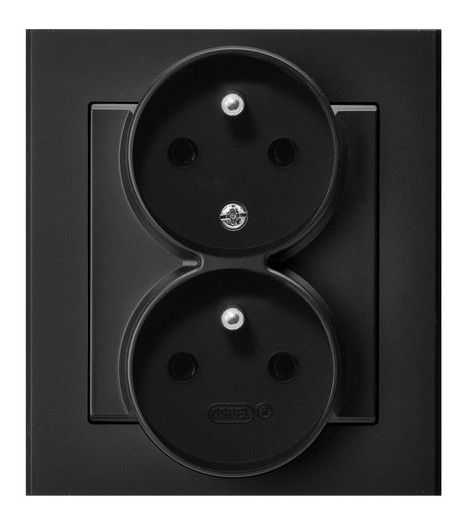

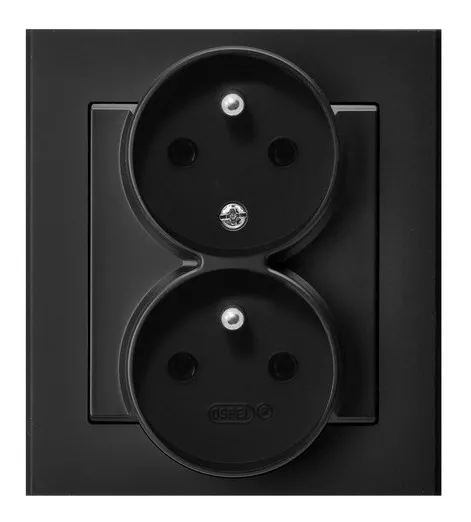

SONATA Gniazdo podwójne z uziemieniem z funkcją niezamienności faz, kompletne z ramką - kolor czarny metalik
Information | Value |
---|---|
Supplier | OSPEL S.A. |
Series | SONATA |
Symbol | GP-2RC/33 |
GTIN(EAN) | 5907577446833 |
Price unit | piece |
Catalog price | 43,03 zł (34,98 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Promotions related to this product
-
OSPEL: Wiosenna promocja
Kup produkty marki OSPEL za minimum 1000 zł brutto i odbierz jedną z trzech nagród.
-
KONTAKT-SIMON I OSPEL: Hybrydowa promocja
Kup produkty marki Kontakt-Simon lub/i Ospel za kwotę min. 700 zł brutto i otrzymaj t-shirt.
Description:
16A/250~, IP-20, zaciski gwintowe
Additional features:
Information | Value |
---|---|
Gross weight: | 94,5 g |
ETIM class: | Socket outlet |
Model: | Multi-standard socket |
Number of active contacts (round): | 2 |
Number of active contacts (flat): | 0 |
With signal lamp: | no |
Number of units: | 2 |
Number of modules (module system): | 0 |
Number of socket outlets switchable: | 0 |
Imprint/indication: | None |
Connection type: | Screwed terminal |
With hinged lid: | no |
With enhanced contact protection: | yes |
Label space/information surface: | no |
Colour: | Black |
RAL-number (similar): | 9005 |
Transparent: | no |
Lockable: | no |
Eject-mechanism: | no |
Insulated mounting: | no |
With function lighting: | no |
With orientation lighting: | no |
Over voltage protection: | no |
Fault current protection: | no |
With miniature fuse: | no |
Special power supply: | No special power supply |
Mounting method: | Flush-mounted |
Type of fastening: | Mounting with claw and screw |
Material: | Plastic |
Material quality: | Thermoplastic |
Halogen free: | yes |
Surface protection: | Lacquered |
Surface finishing: | Glossy |
Anti-bacterial treatment: | no |
With loop through function: | no |
With on/off switch: | no |
Rotated central insert: | no |
Nominal current: | 16 A |
Nominal voltage: | 250 V |
Frequency: | 0 - 0 Hz |
Rated fault current: | 0 mA |
Suitable for degree of protection (IP): | IP20 |
Impact strength: | IK03 |

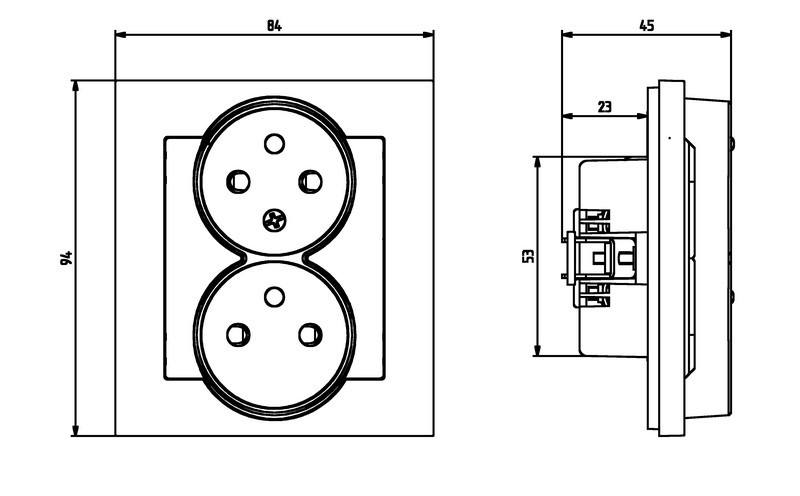

Device width: | 84 mm |
Device height: | 94 mm |
Device depth: | 45 mm |
Min. depth of built-in installation box: | 60 mm |
Buy online
Wholesalers below does not have this product in their warehouses. You can anyway contact them and order it.
Order
Wholesaler
Address
Distance
Actions
Firma Handlowo-Usługowa "LUX-SYSTEM" S.M. Stanek, J.E. Poniedziałek Sp.j.
Szaflary,
ul. Zakopiańska 18
Distance:
Przedsiębiorstwo Wielobranżowe „ELEKTRO-HURT” Aleksander Winter Sp. z o.o.
Gniezno,
ul. Słoneczna 40a
Distance:
Additional information:
Information | Value |
---|---|
Updated: | 2024-06-06 10:55:12 |
Files to download: |
