UDHOME-ONE GM15 Kompletna kaseta zasilająca
| Information | Value |
|---|---|
| Supplier | OBO Bettermann Polska Sp. z o.o. |
| Symbol | 7368286 |
| GTIN(EAN) | 4012196874620 |
| Price unit | piece |
| Catalog price | 1 440,28 zł (1 170,96 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:

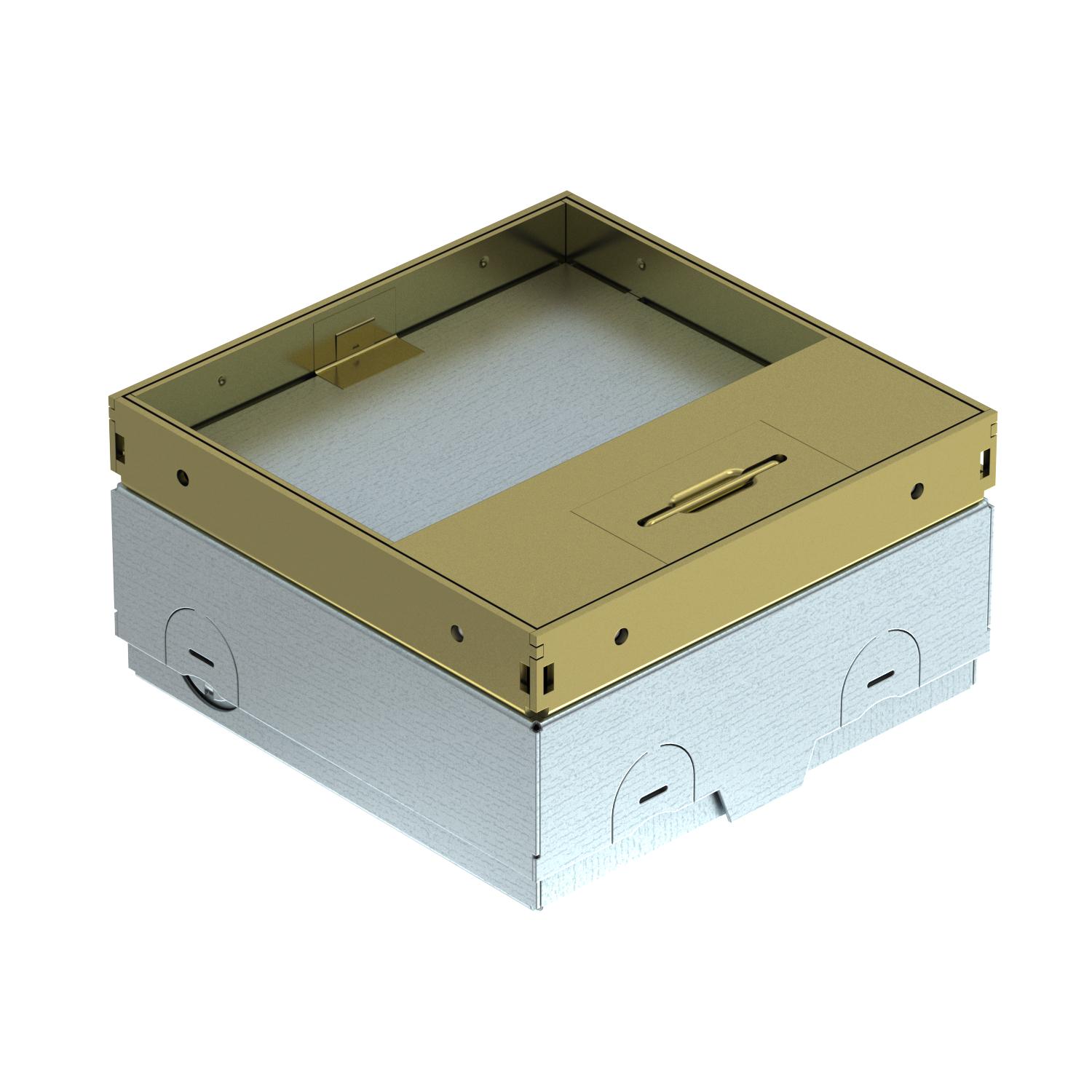

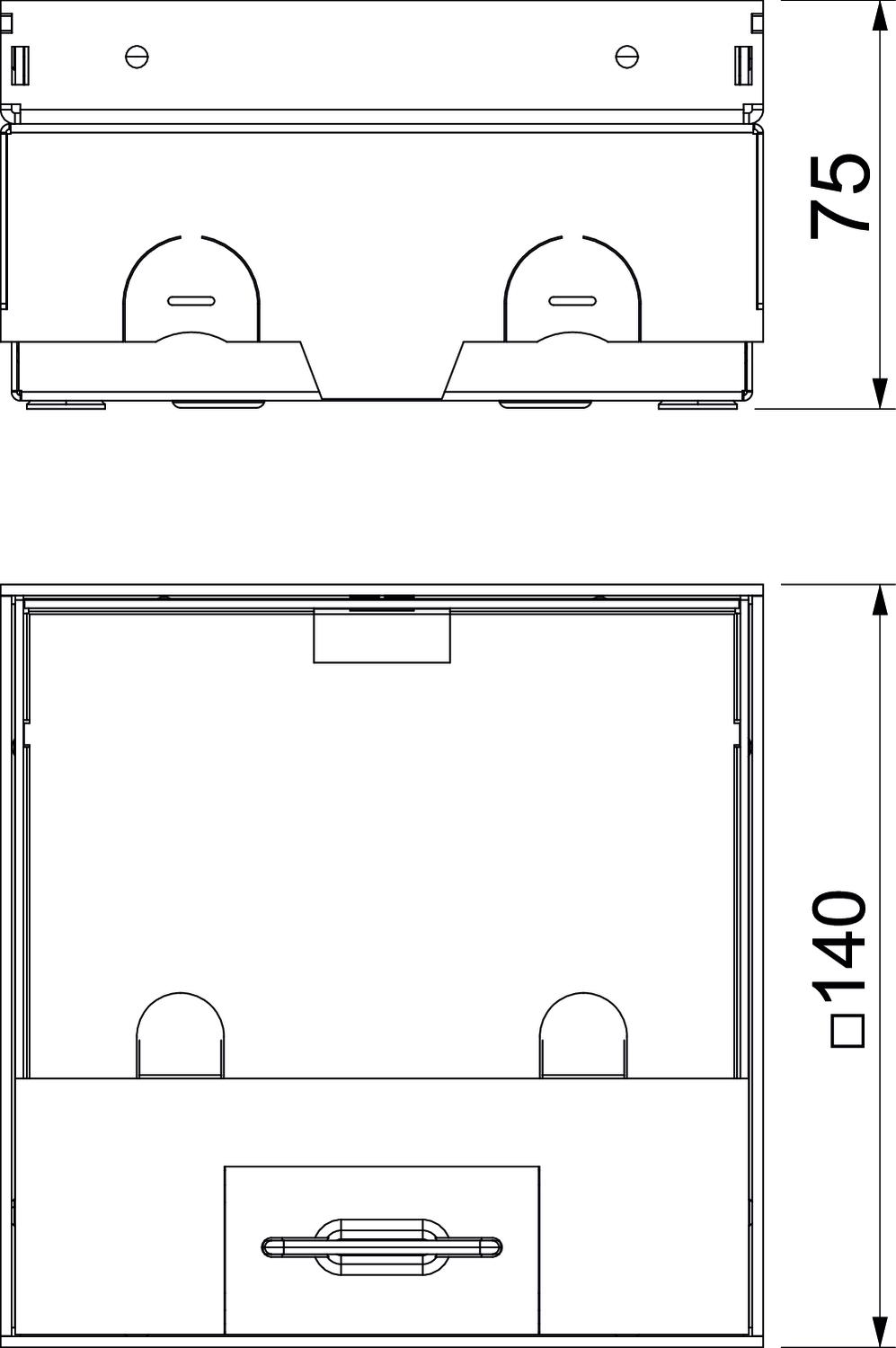

Square floor socket for use in dry-care systems and screed floors in indoor areas. Installation housing with pre-marked insertion openings for pipes (M20/M25). Cover adjustable to top edge of floor covering using four height-adjustment supports. The minimum installation depth is 75 mm, the height-adjustment range + 30 mm. Frame and cover made of brass and visible in the floor covering. Cover with floor covering recess. The load-bearing capacity of 15 kN is only guaranteed when in an unused state. Empty housing for one Modul 45® installation device and one data socket. When delivered, the item is closed with a blanking plate.
When installing a double VDE/NF socket through a mounting support, the use of an angular connector is only possible at an installation height of at least 90 mm. Use straight connectors for lower installation heights.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Device installation insert for subfloor installation |
| With cable outlet in cover: | yes |
| Housing material: | Brass |
| Material cover: | Brass |
| With opening carpeting: | yes |
| Protective frame carpeting: | no |
| Suitable for subfloor duct: | no |
| Suitable for hollow floor: | yes |
| Suitable for double floor built-in: | yes |
| Suitable for wet cleaning: | no |
