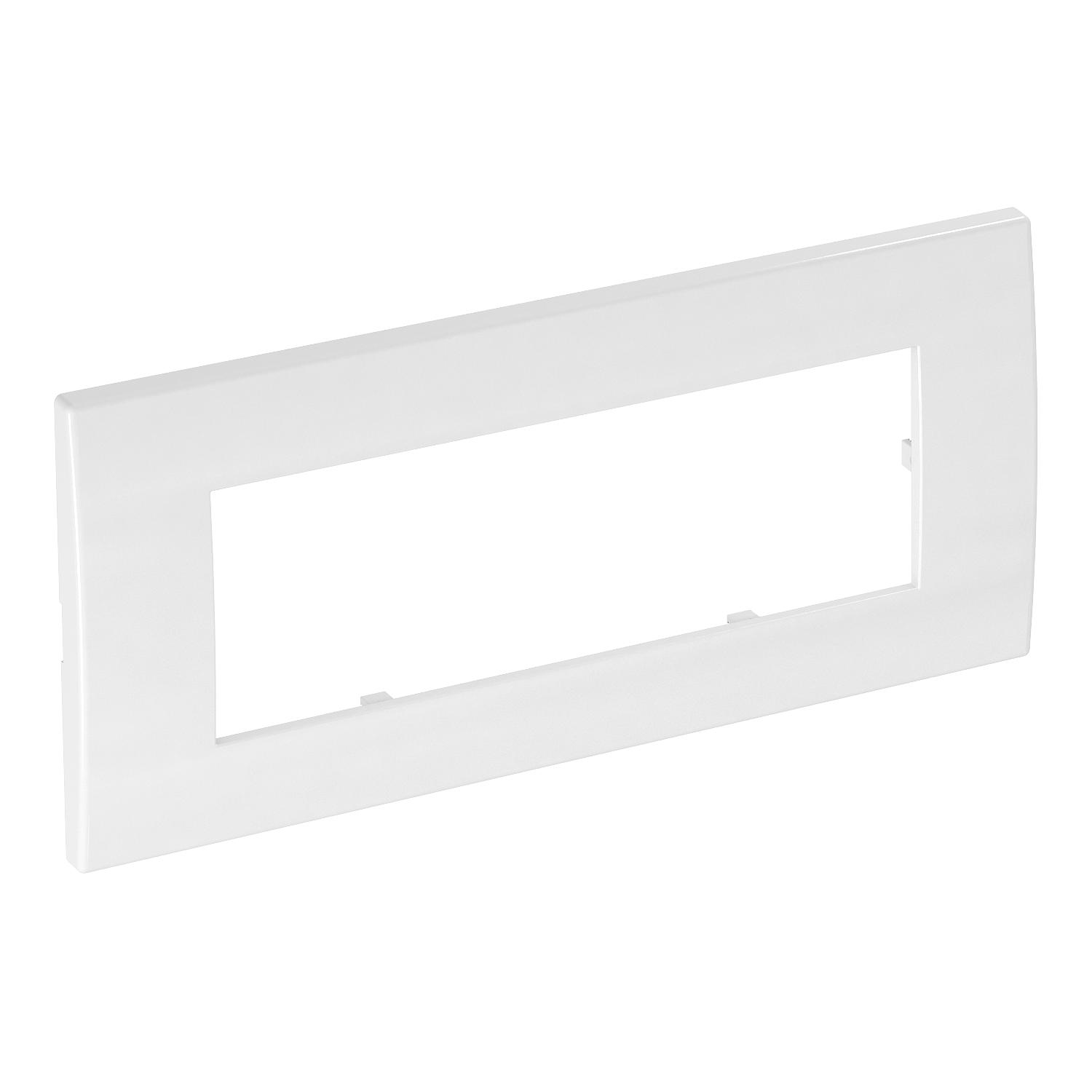

AR45-F3 RW Ramka montażowa, Modul 45, potrójna
| Information | Value |
|---|---|
| Supplier | OBO Bettermann Polska Sp. z o.o. |
| Symbol | 6119372 |
| GTIN(EAN) | 4012195888994 |
| Price unit | piece |
| Catalog price | 27,10 zł (22,03 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Pokrywa maskująca do Modul 45, potrójna, bez pola opisowego, pozioma i pionowa, do montażu na puszce instalacyjnej 71GD9-2 lub wsporniku montażowym 71MT3 45-2.
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Cover frame for domestic switching devices |
| Number of units: | 3 |
| Mounting direction: | Horizontal and vertical |
| Number of units horizontal: | 3 |
| Number of units vertical: | 3 |
| Number of modules horizontal (module system): | 3 |
| Number of modules vertical (module system): | 3 |
| Suitable for subfloor installation duct box: | no |
| Suitable for wall duct: | yes |
| Suitable for built-in installation: | yes |
| Material: | Plastic |
| Material quality: | Other |
| Halogen free: | yes |
| Surface finishing: | Matt |
| Colour: | White |
| RAL-number (similar): | 9010 |
| Transparent: | no |
| With hinged lid: | no |
| Degree of protection (IP): | Other |
| Type of fastening: | Clamp mounting |

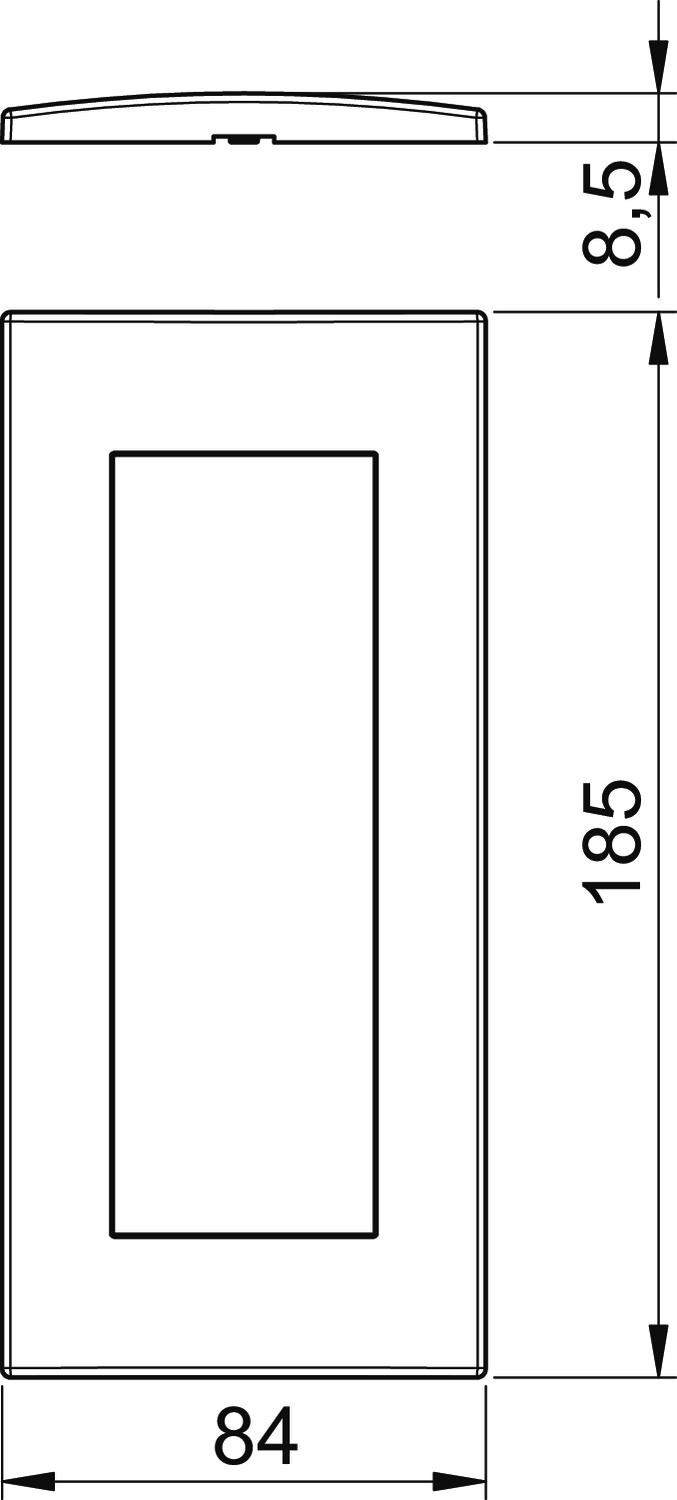

| Width: | 185 mm |
| Height: | 84 mm |
| Depth: | 8.5 mm |
| Built-in width: | 135 mm |
| Built-in height: | 45 mm |
| With mounting grid: | no |
| Flush-mounted installation: | no |
| Label space/information surface: | no |
| Anti-bacterial treatment: | no |
| Diameter bore hole (opening): | 0 mm |
