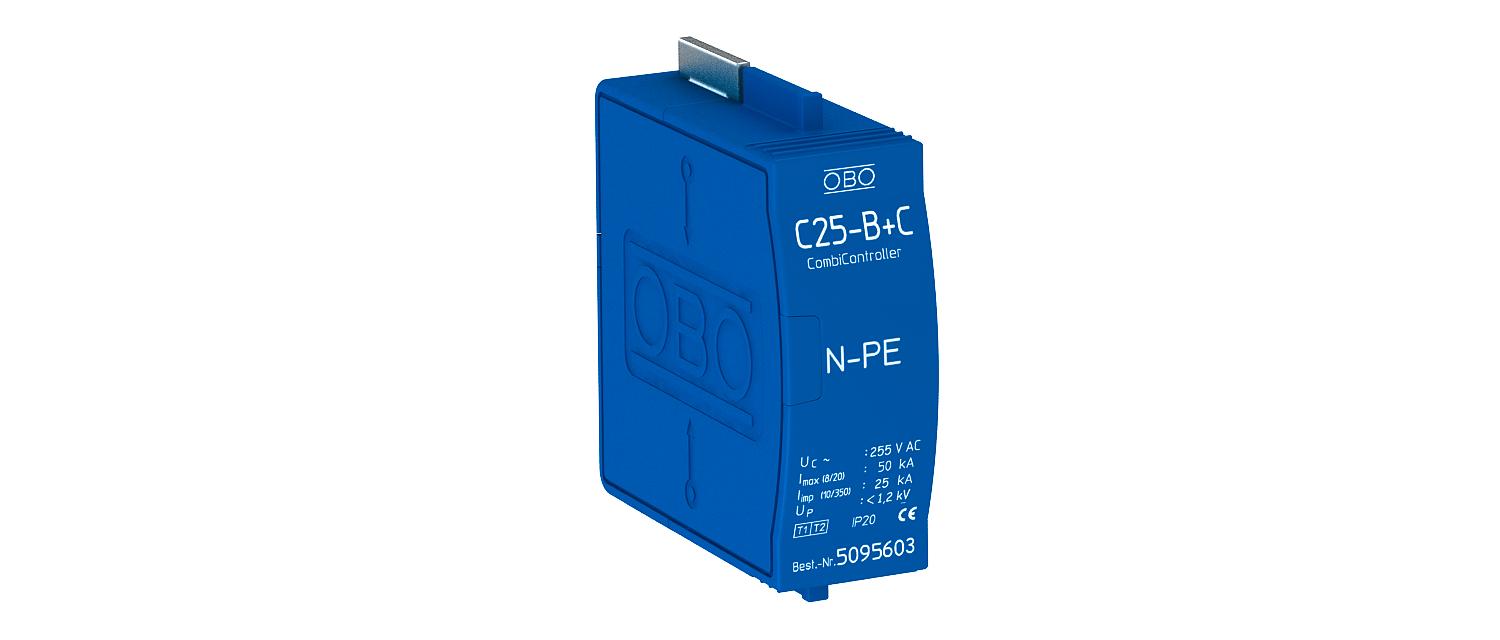

C 25-B+C 0 Wkładka ogranicznika
Information | Value |
---|---|
Supplier | OBO Bettermann Polska Sp. z o.o. |
Symbol | 5095603 |
GTIN(EAN) | 4012195919391 |
Price unit | piece |
Catalog price | 460,25 zł (374,19 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Iskiernik sumujący wtykowy do stosowania między przewodem neutralnym (N) a przewodem ochronnym (PE). Dedykowany do stosowania z:
• Ogranicznik przepięć V 25-B+C
• Ogranicznik przepięć V 20-C
• Ogranicznik przepięć V 10-C
Additional features:
Information | Value |
---|---|
ETIM class: | Combined arrester for power supply systems |
Lightning impulse current (10/350 µs): | 25 kA |
Max. continuous voltage AC: | 255 V |
Nominal voltage AC: | 230 V |
Voltage protection level: | 1.2 kV |
Follow current extinguishing capability: | 0.1 kA |
Mounting method: | On basic element |

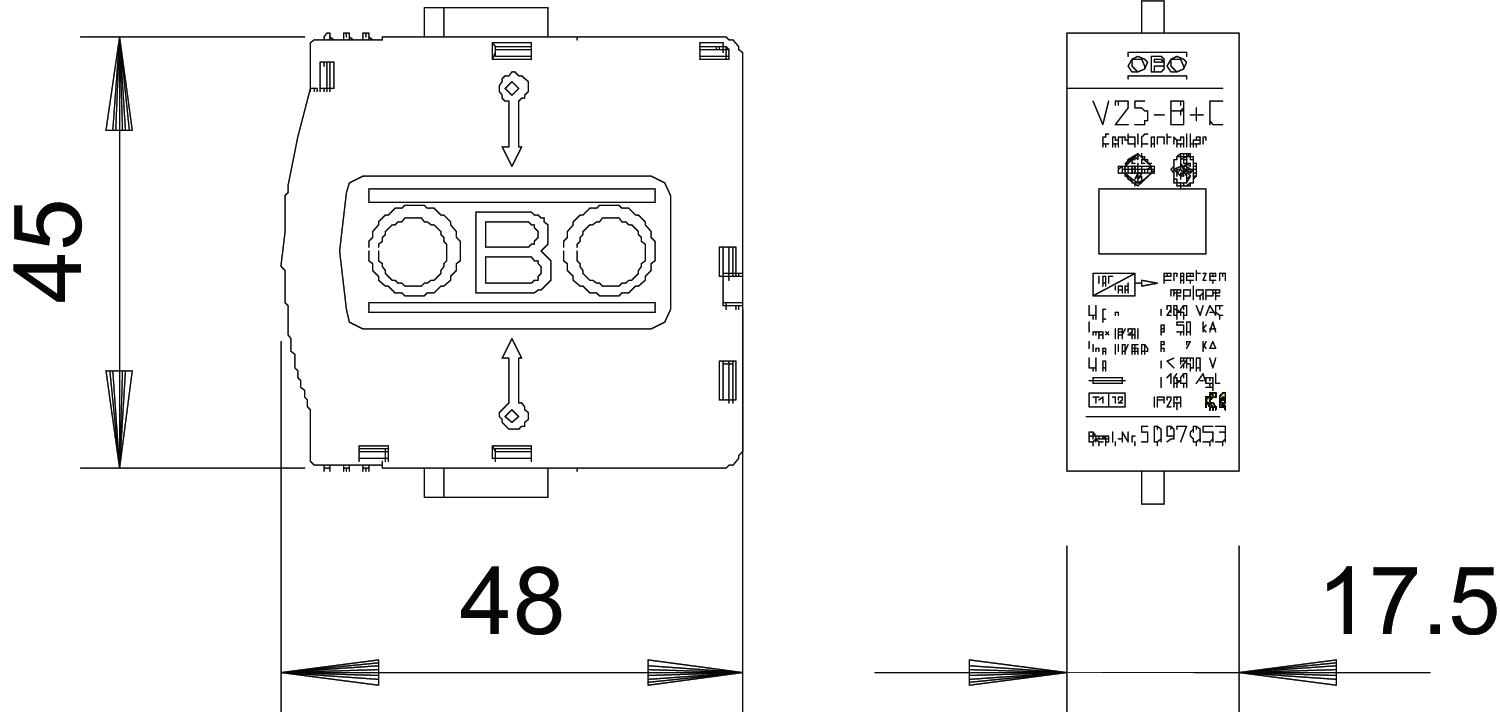

Construction size: | 1 modular spacing |
Max. conductor cross section solid (solid, stranded): | 35 mm² |
Signalling at the device: | None |
Degree of protection (IP): | IP20 |
