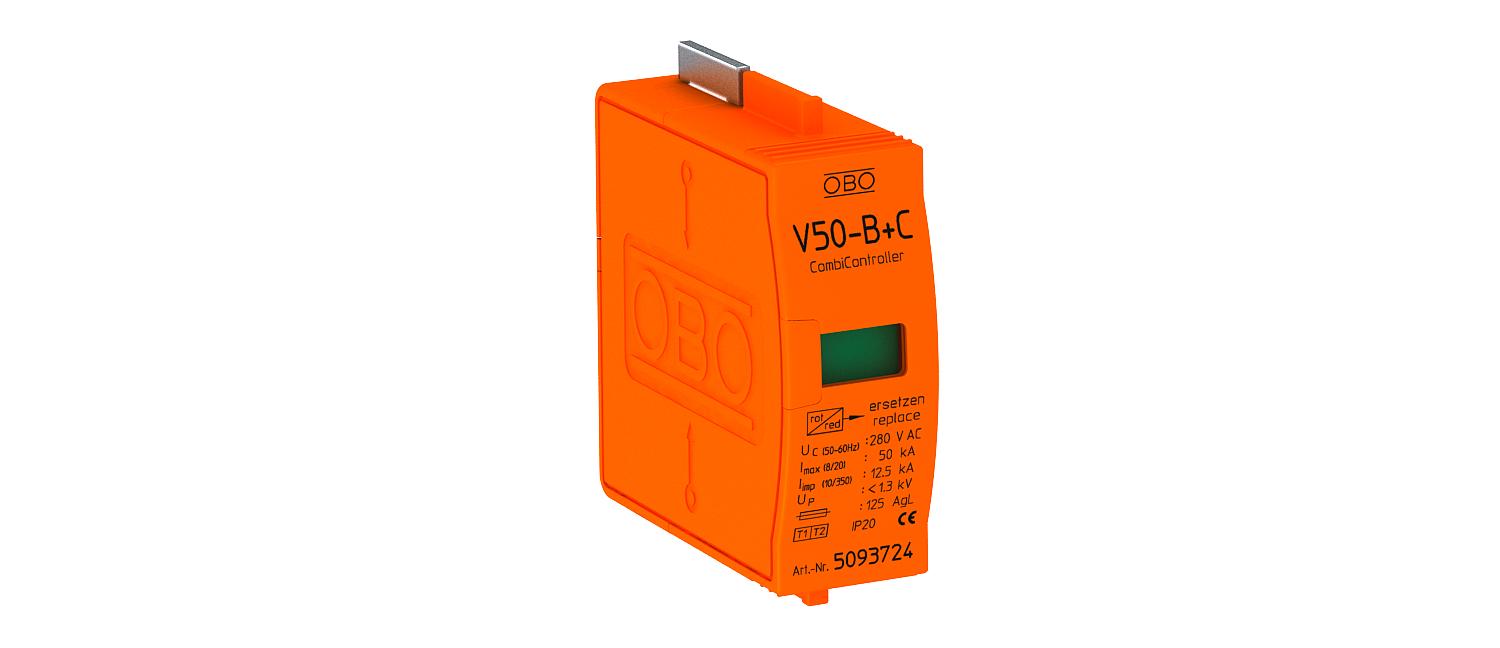

V50-B+C 0-280 Wkładka ogranicznika przepięć
| Information | Value |
|---|---|
| Supplier | OBO Bettermann Polska Sp. z o.o. |
| Symbol | 5093724 |
| GTIN(EAN) | 4012195361954 |
| Price unit | piece |
| Catalog price | 690,69 zł (561,54 zł + 23% VAT) |
The given prices do not constitute an offer within the meaning of the Civil Code. The purchase prices of a given item may differ from those displayed.
Description:
Wkładka ogranicznika - ogranicznik przepięć Typu 1+2
• możliwość wyjmowania wkładek bez używania dodatkowych narzędzi
• zawiera dynamiczny element odłączający i optyczną sygnalizację uszkodzenia
• wysoka przewodność elektryczna i długa żywotność
Additional features:
| Information | Value |
|---|---|
| ETIM class: | Combined arrester for power supply systems |
| System configuration DC: | no |
| System configuration IT: | no |
| System configuration TN: | no |
| System configuration TN-C: | no |
| System configuration TN-C-S: | no |
| System configuration TN-S: | no |
| System configuration TT: | no |
| System configuration other: | no |
| Number of poles: | 1 |
| Lightning impulse current (10/350 µs): | 12.5 kA |
| Max. continuous voltage AC: | 280 V |
| Max. continuous voltage DC: | 350 V |
| Nominal voltage AC: | 230 V |
| Voltage protection level: | 1.3 kV |
| Voltage protection level L-N: | 1.3 kV |
| Mounting method: | On basic element |
| Construction size: | 1 modular spacing |
| Max. conductor cross section solid (solid, stranded): | 35 mm² |
| Signalling at the device: | Optical |
| Integrated backup fuse: | no |
| Degree of protection (IP): | IP20 |
